SIGNAL CUSTOM TUBULAR SERIES
Custom Signal LED Tri-Proof Tubular Light

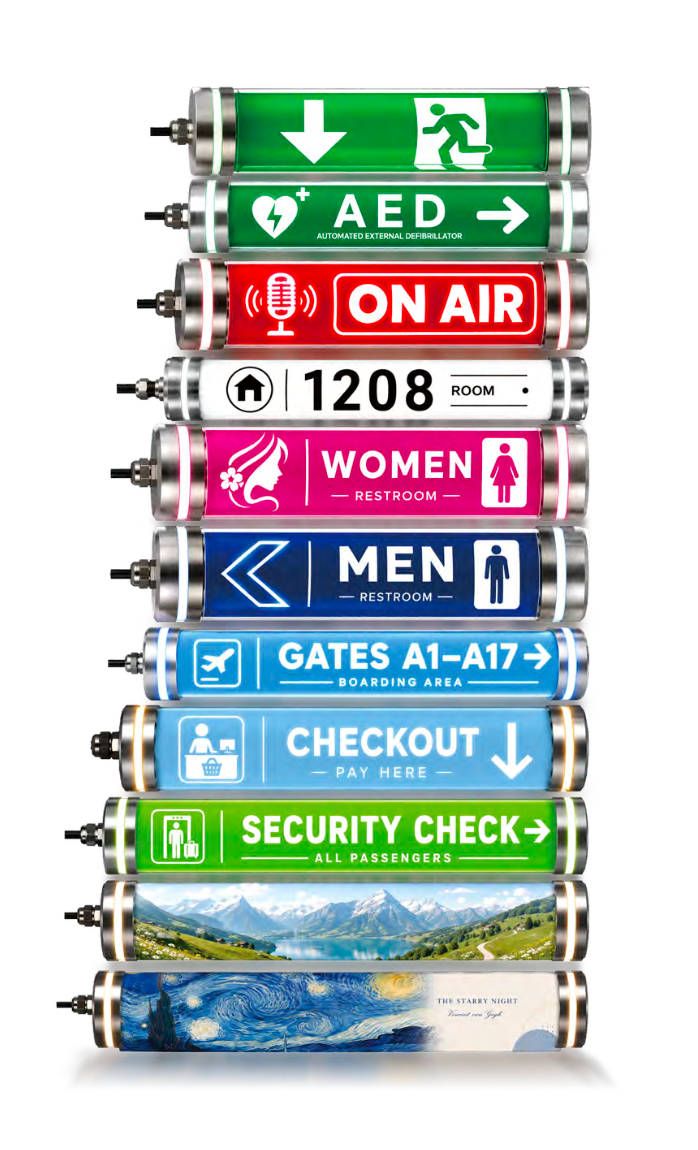

A configurable tubular lighting and visual communication solution combining functional illumination with durable UV-printed graphics. Available across multiple tubular light sizes for safety marking, wayfinding, warnings, branding and project-specific identification.
Custom graphics preview, technical datasheets, and quotation support within 1 business hour.
Product Overview
Visual Indication. Customized Across Every Tubular Profile.
The MANI Custom UV-Printed Tubular Series delivers durable visual signage, safety icons, and branding directly integrated onto industrial tubular luminaires. Available across PC, PMMA, and Borosilicate Glass housings in Ø45, Ø70, Ø75, and Ø100 mm profiles.
Engineered for demanding industrial sites, cleanrooms, food processing plants, and commercial corridors, this series combines high-efficiency illumination with IP67/IP69K sealing, flexible tailored lengths (600–1500 mm+), and scratch-resistant UV-cured surface printing.
Opt for high impact (PC), optical clarity & ammonia resistance (PMMA), or chemical-grade glass
Standard and tailored project lengths from 600 mm to 1500 mm+
Scratch & chemical-resistant warning icons, safety symbols, zones, and logos
High-performance tri-proof lighting with uniform 360°/180° light distribution
Resistant to high-pressure washdowns, steam, dust, and mechanical impact
Marine-grade mounting brackets, quick connectors, and through-wiring support
Customization & Support
Built around your project specificationsMockups, symbol vectoring, and graphic adhesion testing
PC, PMMA, or Glass tailored to your site's chemical/impact needs
Custom tube diameters, tailored lengths, and end cap finishes
IP69K hermetic seal, high-pressure washdown, and aging tests
01 / VISUAL COMMUNICATION & INDICATION
Signal Tubular Luminaire. Integrated Illumination & Clear Guidance.
By combining high-efficiency general lighting with durable, customizable UV-printed graphics and signaling, these tubular luminaires deliver immediate visual awareness, wayfinding, and safety identification across demanding commercial, transit, and public facilities.
Direct UV-cured caution bands, height limits, and safety symbols ensure high visibility in ramps, loading bays, and transit tunnels.
Seamlessly integrates department codes, lane arrows, and corporate logos without compromising optical performance.
Fully sealed IP67/IP69K housing protects internal LEDs and surface graphics against dust ingress, moisture, and frequent washdowns.
02 / PROTECTION & DURABILITY
IP67–IP69K
IK10 Robust
Engineered with an internally integrated graphic design for lifelong durability. All custom signage, caution bands, and symbols are UV-printed directly on the inner surface / core, shielded completely inside the hermetically sealed tubular housing. This internal architecture prevents external scratching, high-pressure peeling, and chemical erosion during rigorous washdowns.
Ingress ratings, material selection, and internal graphic dimensions are configuration-dependent. Confirm project details when requesting custom design mockups or a quote.
03 / DRIVER & ELECTRICAL ARCHITECTURE
Industrial-Grade Power.
Engineered Reliability.
Designed for demanding 24/7 continuous operation across industrial and commercial facilities. Our custom signal tubular luminaires integrate premium isolated drivers with superior thermal dissipation, ensuring stable light output, low harmonic distortion, and long-term electrical safety for both internal graphics backlighting and high-lumen area illumination.
Driver brands, dimming protocols, multi-circuit through-wiring, and emergency runtimes are factory-customisable per tender specifications.
04 / SMART SENSING & EMERGENCY ARCHITECTURE
Intelligent Sensing.
Certified Emergency Safety.
Maximize energy efficiency and ensure facility safety across corridors, ramps, and production lines. Our custom signal tubular luminaires integrate hidden microwave occupancy sensors within sealed housings alongside certified LiFePO4 battery backup modules, delivering continuous illumination and visual guidance even during complete mains power failures.
Sensor sensitivity, emergency output wattage, battery chemistry, and automated reporting systems are factory-configurable according to project safety codes.
05 / INSTALLATION & CONNECTIVITY
Faster Wiring.
Clean Project Integration.
Tailored connection architectures designed for efficient machine integration and continuous site runs. Compatible across all tube diameters (Ø45/70/75/100 mm), our signal tubular luminaires support multi-core through-wiring, pre-wired industrial glands, and IP68 plug-and-play connectors for seamless power and visual signaling distribution.
Through-wiring conductor cross-sections (1.5–2.5 mm²), custom lead lengths, SS304/SS316 bracket types, and connector pin configurations can be customized per project specifications.
Proven Across
Diverse Facilities
From transit tunnels, parking ramps, and automated production floors to cleanrooms, processing bays, and commercial corridors, our custom signal tubular luminaires provide uncompromised IP67/IP69K durability, high-visibility UV graphic communication, and reliable illumination.
TECHNICAL SPECIFICATIONS
Clear Data.
Multi-Diameter Platform.
Factory photometric, electrical, and material specifications for custom UV-printed signal LED tubular luminaires. Available across Ø45, Ø70, Ø75, and Ø100 mm profiles with PC, PMMA, or Borosilicate Glass housings for maximum project adaptability.
OEM / ODM SYSTEM CUSTOMIZATION
Control & Customization Configurations
Factory-integrated control options matched to project and tender requirements.
COMPACT SERIES CATALOGUE Ø45 mm Standard Model Matrix (MTB-45) 8 factory models
| Model No. | Dimension | System Power | Input Voltage | Nominal Luminous Flux | Efficacy |
|---|---|---|---|---|---|
| MTB-456010 | L600 × Ø45 mm | 10 W | AC 220–240 V / 100–277 V | 1,200 lm | 120 lm/W |
| MTB-456015 | L600 × Ø45 mm | 15 W | AC 220–240 V / 100–277 V | 1,800 lm | 120 lm/W |
| MTB-459015 | L900 × Ø45 mm | 15 W | AC 220–240 V / 100–277 V | 1,800 lm | 120 lm/W |
| MTB-459020 | L900 × Ø45 mm | 20 W | AC 220–240 V / 100–277 V | 2,400 lm | 120 lm/W |
| MTB-451230 | L1200 × Ø45 mm | 30 W | AC 220–240 V / 100–277 V | 3,600 lm | 120 lm/W |
| MTB-451236 | L1200 × Ø45 mm | 36 W | AC 220–240 V / 100–277 V | 4,320 lm | 120 lm/W |
| MTB-451540 | L1500 × Ø45 mm | 40 W | AC 220–240 V / 100–277 V | 4,800 lm | 120 lm/W |
| MTB-451545 | L1500 × Ø45 mm | 45 W | AC 220–240 V / 100–277 V | 5,400 lm | 120 lm/W |
MID-SIZE SERIES CATALOGUE Ø70 mm Standard Model Matrix (MTB-70) 4 factory models
| Model No. | Dimension | System Power | Input Voltage | Nominal Luminous Flux | Efficacy |
|---|---|---|---|---|---|
| MTB-706020 | L600 × Ø70 mm | 20 W | AC 220–240 V / 100–277 V | 2,400 lm | 120 lm/W |
| MTB-709030 | L900 × Ø70 mm | 30 W | AC 220–240 V / 100–277 V | 3,600 lm | 120 lm/W |
| MTB-701240 | L1200 × Ø70 mm | 40 W | AC 220–240 V / 100–277 V | 4,800 lm | 120 lm/W |
| MTB-701550 | L1500 × Ø70 mm | 50 W | AC 220–240 V / 100–277 V | 6,000 lm | 120 lm/W |
BOROSILICATE GLASS SERIES CATALOGUE Ø75 mm Standard Model Matrix (MTB-75G) 4 factory models
| Model No. | Dimension | System Power | Input Voltage | Nominal Luminous Flux | Efficacy |
|---|---|---|---|---|---|
| MTB-756020 | L600 × Ø75 mm | 20 W | AC 220–240 V / 100–277 V | 2,400 lm | 120 lm/W |
| MTB-759030 | L900 × Ø75 mm | 30 W | AC 220–240 V / 100–277 V | 3,600 lm | 120 lm/W |
| MTB-751240 | L1200 × Ø75 mm | 40 W | AC 220–240 V / 100–277 V | 4,800 lm | 120 lm/W |
| MTB-751550 | L1500 × Ø75 mm | 50 W | AC 220–240 V / 100–277 V | 6,000 lm | 120 lm/W |
HEAVY-DUTY HIGH-LUMEN CATALOGUE Ø100 mm Standard Model Matrix (MTB-100) 7 factory models
| Model No. | Dimension | System Power | Input Voltage | Nominal Luminous Flux | Efficacy |
|---|---|---|---|---|---|
| MTB-60030 | L600 × Ø100 mm | 30 W | AC 220–240 V / 100–277 V | 3,600 lm | 120 lm/W |
| MTB-90036 | L900 × Ø100 mm | 36 W | AC 220–240 V / 100–277 V | 4,320 lm | 120 lm/W |
| MTB-120045 | L1200 × Ø100 mm | 45 W | AC 220–240 V / 100–277 V | 5,400 lm | 120 lm/W |
| MTB-120055 | L1200 × Ø100 mm | 55 W | AC 220–240 V / 100–277 V | 6,600 lm | 120 lm/W |
| MTB-120065 | L1200 × Ø100 mm | 65 W | AC 220–240 V / 100–277 V | 7,800 lm | 120 lm/W |
| MTB-150065 | L1500 × Ø100 mm | 65 W | AC 220–240 V / 100–277 V | 7,800 lm | 120 lm/W |
| MTB-150075 | L1500 × Ø100 mm | 75 W | AC 220–240 V / 100–277 V | 9,000 lm | 120 lm/W |
Related Products
Explore alternative diameters, materials and specialist tubular lighting solutions for different project requirements.
Swipe to explore
Ø45 mm LED Tri-Proof Tubular Light
A compact tubular luminaire delivering balanced performance for space-restricted applications.
View product
Ø70 mm LED Tri-Proof Tubular Light
A versatile, balanced-diameter luminaire offering robust protection and flexible configuration for general industrial spaces.
View product
Ø100 mm LED Tri-Proof Tubular Light
A large-diameter tubular luminaire designed for high-lumen output and heavy industrial infrastructure projects.
View product
Ø75 mm Borosilicate Glass LED Tri-Proof Tubular Light
Heavy-duty borosilicate glass luminaire delivering maximum chemical, thermal-shock resistance and IP69K protection.
View product
Questions,
answered.
Key technical, custom graphic, and configuration details for the custom UV-printed signal LED tubular lighting platform.
All custom text, caution bands, and warning symbols are UV-printed directly on the inner surface or internal optical sleeve. Because the graphics are enclosed completely inside the hermetically sealed housing, they are 100% immune to external scratching, high-pressure jet peeling, abrasive cleaners, and aggressive sanitation chemicals.
We offer custom UV printing across our entire industrial tubular range, including Ø45 mm, Ø70 mm, Ø75 mm, and Ø100 mm diameters in lengths from 600 mm to 1500 mm+. You can choose between Polycarbonate (PC) for IK10 impact resistance, PMMA (Acrylic) for superior optical clarity and ammonia resistance, or Borosilicate Glass for heavy chemical resistance.
The fixtures achieve certified IP67 and IP69K waterproof protection ratings, resisting high-pressure (up to 100 bar) and high-temperature (up to 80°C) steam washdowns. Impact resistance is rated at IK10 for PC profiles and IK07 for Borosilicate Glass / PMMA housings.
Yes. Our engineering team provides full custom OEM artwork integration. You can supply vector files (AI, PDF, DXF) for caution chevrons, speed limits, zone identifiers, wayfinding arrows, or corporate branding. We provide digital proof mockups before production.
Yes. Luminaires can be configured with 3-core or 5-core internal through-wiring (1.5–2.5 mm²) or external IP68 quick-connect plug-and-play couplers, allowing fast, continuous trunking runs across corridors, tunnels, and parking ramps.
Yes. We provide factory-installed 5.8 GHz microwave occupancy sensors that detect motion through the sealed housing, as well as 1.5-hour to 3-hour certified LiFePO4 emergency backup kits to keep critical safety symbols illuminated during grid power failures.
