MTB-45 Industrial Tubular Series
Ø45 mm Industrial LED Tri-Proof Tubular Light
A configurable compact tubular luminaire for demanding and space-constrained environments, available in 600–1500 mm lengths and 10–45 W outputs, with flexible driver, control, wiring and emergency options.
Configuration, datasheet and quotation support within 1 business hour.
PRODUCT OVERVIEW
Compact Profile.
Built for Tight
Industrial Spaces.
The MANI MTB-45 is a compact LED tubular luminaire developed for industrial, commercial and agricultural projects where installation space is limited but dependable protection and uniform illumination remain essential.
Its Ø45 mm profile fits narrow technical areas, equipment zones and low-clearance installations while supporting multiple lengths, control systems, wiring arrangements and emergency configurations.
Ø45 mm Compact Profile
600 / 900 / 1200 / 1500 mm standard lengths
IP67 & IK10 Protection
Protection against dust, moisture and impact
Up to 150 lm/W
120 lm/W standard configuration
Flexible Control Options
ON/OFF, DALI, 0–10V, TRIAC and sensor options
Project-Ready Installation
Surface-mounted, suspended and linkable options
5-Year System Warranty
CE and RoHS documentation available
FACTORY & PROJECT SUPPORT
Built around your
specification
OEM / ODM Configuration
Product options matched to project requirements
Engineering Support
Driver, control, wiring and installation guidance
Project Documentation
Datasheets, test reports and compliance files
Factory Quality Control
Production monitoring and final inspection
01 / Compact Design
Engineered for Space-Constrained Installations
At only Ø45 mm in diameter, the MTB-45 fits beneath structures, between equipment and along technical areas where conventional waterproof luminaires are too large. Available in 600–1500 mm lengths with flexible mounting and wiring configurations.
Designed for narrow installation spaces
Flexible mounting for different project conditions
Adaptable configurations for project-scale installation

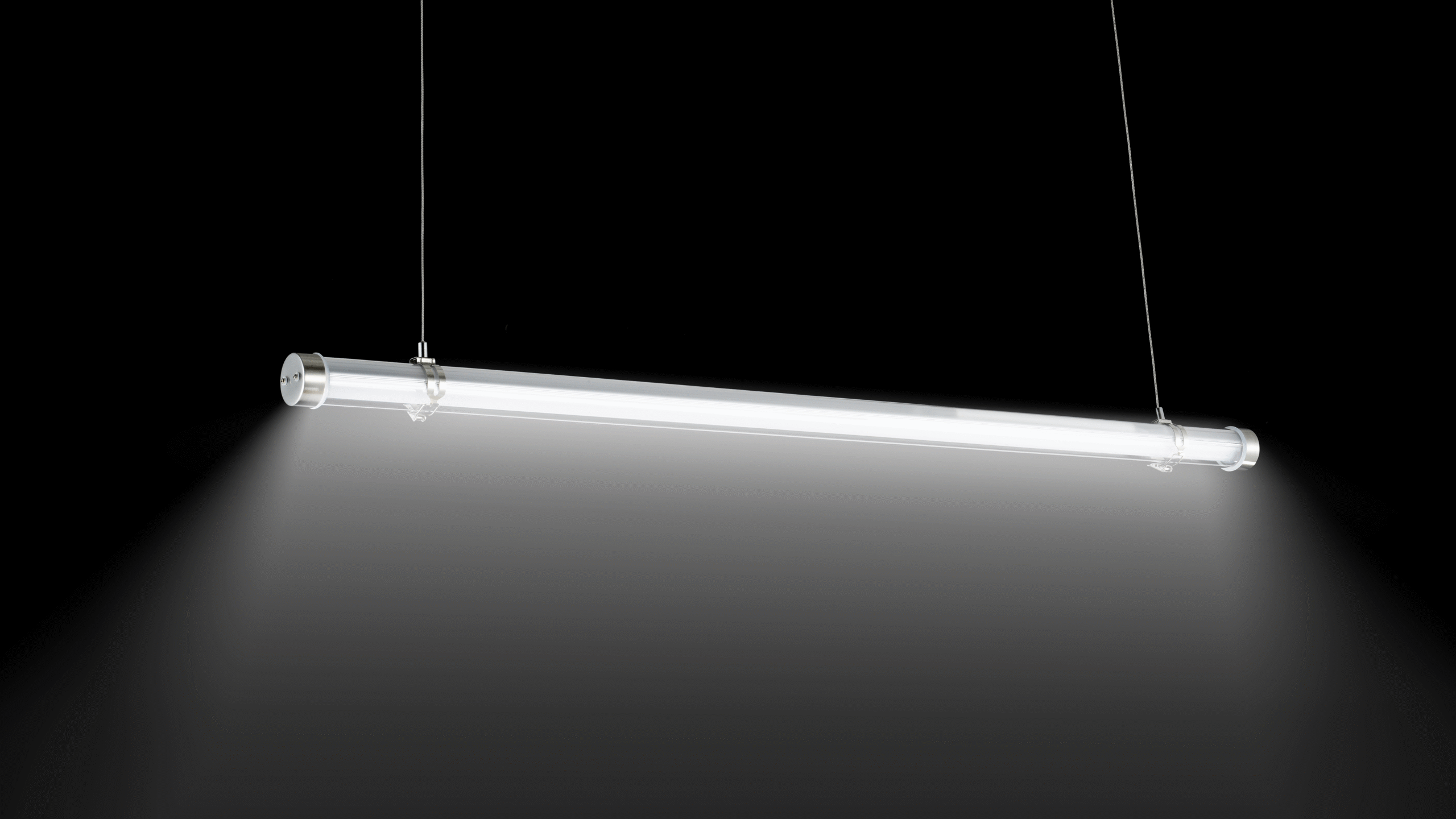

02 / Lighting Performance
Efficient, Uniform Industrial Illumination
An integrated internal PC optical cover controls light diffusion and delivers consistent, low-glare illumination (UGR < 21) across workspaces, aisles and circulation areas. Standard efficacy is 120 lm/W, with selected high-efficiency versions available up to 150 lm/W.
Actual performance varies by CCT, CRI, diffuser, driver and emergency configuration.

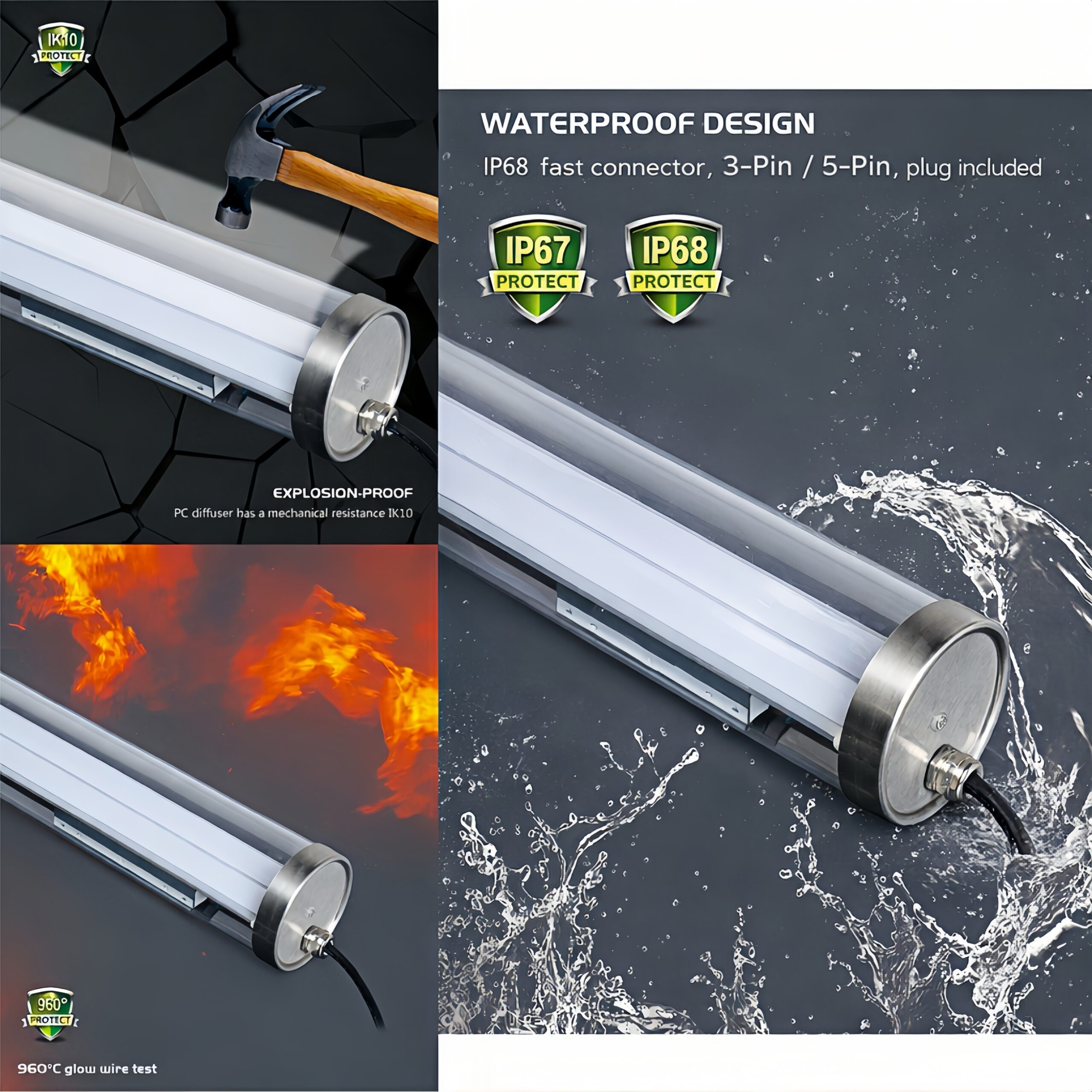

IP67 Protection.
IK10 Strength.
Sealed construction, a UV-resistant polycarbonate housing and stainless steel external components provide dependable performance in dusty, humid and impact-prone industrial environments.
Material and temperature configurations may vary by model. Confirm final specifications when requesting a quotation.

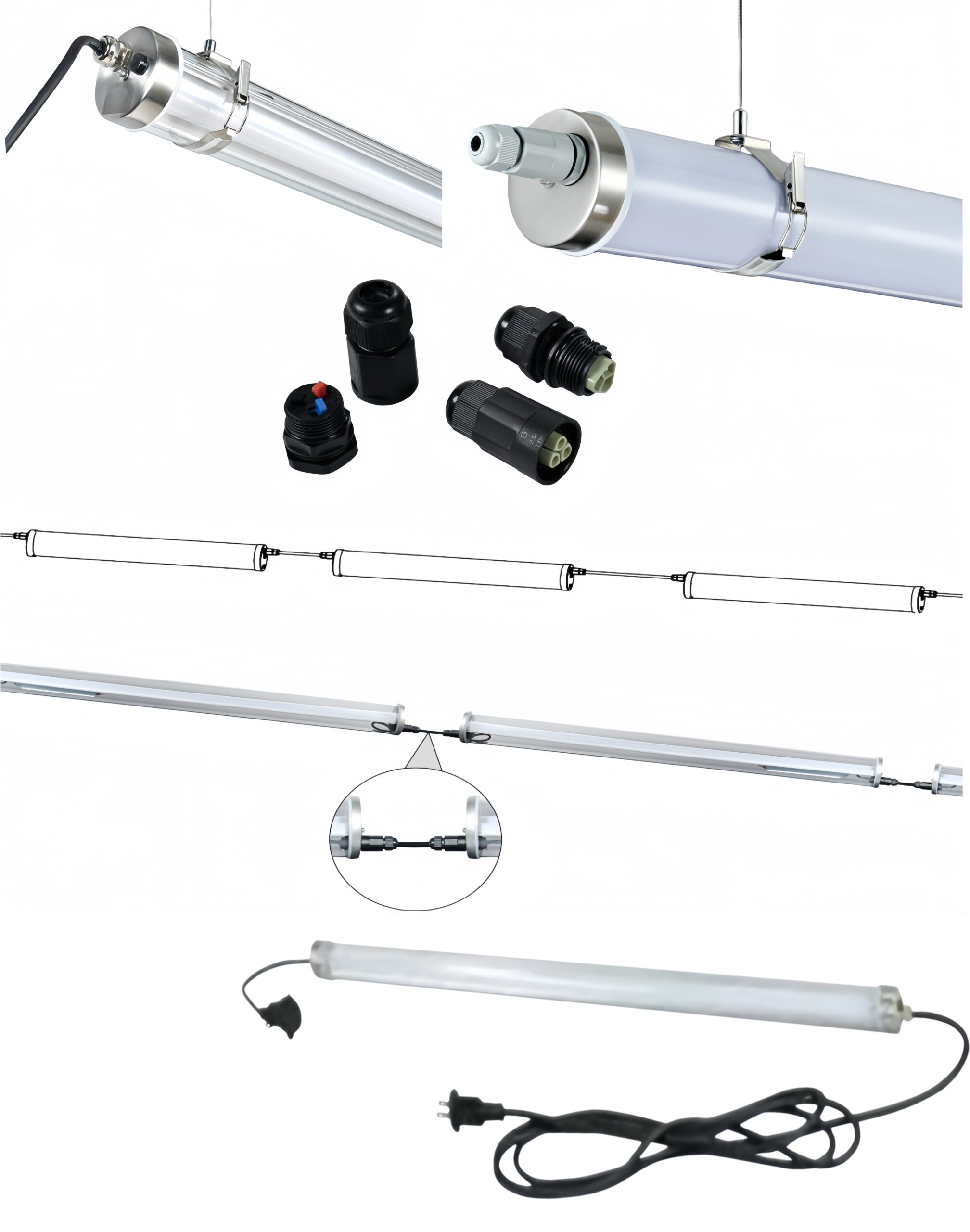

Faster Wiring.
Cleaner Projects.
Factory pre-wired, quick-connect and plug-and-play configurations simplify installation and support efficient continuous lighting layouts.
Mounting accessories, connectors, cable lengths and wiring configurations can be selected to suit project requirements.
Built for Demanding Environments
From food processing and livestock facilities to workshops, warehouses and covered outdoor areas, the MTB-45 delivers dependable illumination across demanding environments.
Livestock Facilities
Poultry Houses
Covered Outdoor Areas
Architectural Interiors
Warehouses & Workshops
Sports Facilities
Industrial Workspaces
Recreational Facilities
Vehicle Workshops
Food Processing
FACTORY SPECIFICATIONS & ENGINEERING DATA
Clear Data.
Flexible Configuration.
Factory photometric, electrical and material specifications for the Ø45 mm MTB-45 tubular series. Engineered with custom-built high-reliability internal drivers and reinforced mechanical components for space-restricted industrial environments and precision installations.
OEM / ODM SYSTEM CUSTOMIZATION
Control & Functional Configurations
Factory-integrated control options matched to tender and site requirements.
STANDARD PRODUCTION CATALOGUE MTB-45 Standard Model Matrix 8 factory models
| Model No. | Dimension | System Power | Input Voltage | Nominal Luminous Flux | Efficacy |
|---|---|---|---|---|---|
| MTB-456010 | L600 × Ø45 mm | 10 W | AC 220–240 V / 100–277 V | 1,200 lm | 120 lm/W |
| MTB-456015 | L600 × Ø45 mm | 15 W | AC 220–240 V / 100–277 V | 1,800 lm | 120 lm/W |
| MTB-459015 | L900 × Ø45 mm | 15 W | AC 220–240 V / 100–277 V | 1,800 lm | 120 lm/W |
| MTB-459020 | L900 × Ø45 mm | 20 W | AC 220–240 V / 100–277 V | 2,400 lm | 120 lm/W |
| MTB-451230 | L1200 × Ø45 mm | 30 W | AC 220–240 V / 100–277 V | 3,600 lm | 120 lm/W |
| MTB-451236 | L1200 × Ø45 mm | 36 W | AC 220–240 V / 100–277 V | 4,320 lm | 120 lm/W |
| MTB-451540 | L1500 × Ø45 mm | 40 W | AC 220–240 V / 100–277 V | 4,800 lm | 120 lm/W |
| MTB-451545 | L1500 × Ø45 mm | 45 W | AC 220–240 V / 100–277 V | 5,400 lm | 120 lm/W |
Related Products
Explore alternative diameters, materials and specialist tubular lighting solutions for different project requirements.
Swipe to explore
Ø70 mm LED Tri-Proof Tubular Light
A versatile tubular luminaire for demanding industrial and commercial environments.
View product
Ø100 mm LED Tri-Proof Tubular Light
A larger-diameter solution designed for higher-output industrial lighting applications.
View product
Ø75 mm Borosilicate Glass LED Tri-Proof Tubular Light
Borosilicate glass construction for specialist environments requiring durable material performance.
View product
Signal & Safety LED Tri-Proof Tubular Lights
Illuminated identification, warning and directional solutions for industrial facilities.
View product
Questions,
answered.
Key information about performance, installation and configuration options for the MTB-45.
The standard configuration is rated at 120 lm/W, while selected high-efficiency configurations can achieve up to 150 lm/W. Actual output depends on wattage, CCT, CRI, diffuser, driver and emergency configuration.
The luminaire is rated IP67, providing protection against dust and temporary water immersion under specified test conditions. It is suitable for wet and frequently cleaned environments, but is not intended for permanent underwater operation.
Yes. Its sealed construction, UV-resistant polycarbonate housing and optional stainless steel components make it suitable for humid and dusty agricultural environments. Cleaning agents and site conditions should be confirmed when selecting the final material configuration.
Yes. Quick-connect, through-wired and plug-and-play configurations are available for continuous lighting layouts. The permitted number of luminaires depends on total electrical load, cable specification, driver selection and local installation requirements.
Available control options include ON/OFF, DALI, TRIAC and 0–10V. Microwave motion sensors and project-specific control configurations can also be provided, depending on the selected driver and wiring arrangement.
Yes. A 3-hour emergency version is available for selected configurations. Emergency output, battery type, test function and applicable certification should be confirmed when requesting a quotation.
