SLIM CONFIGURABLE LIGHTING
MC-822 · IP65 LED Ceiling Light
A slim Ø300 × H70 mm round luminaire with full or half bezel designs, black or white finishes, sensing and emergency options.
DESIGNED FOR ARCHITECTURAL FLEXIBILITY
Slim profile.
More ways to specify.
MC-822 brings together a low-profile body, dual power platform and configurable bezel and finish combinations for public and commercial projects.
Only 70 mm high
The Ø300 × H70 mm body creates a restrained ceiling or wall presence while supporting 20W or 25W output.
Four visual combinations
Choose a full or half bezel in white or black to coordinate the luminaire with different architectural environments.
Protected for daily use
IP65 ingress protection, IK10 impact resistance and a UV-resistant diffuser support demanding indoor and outdoor installations.
CHOOSE YOUR CONFIGURATION
One slim platform.
Three project-ready options.
Efficient everyday lighting
- 20W or 25W output
- Full or half bezel
- Black or white finish
Light only when needed
- Microwave motion sensor
- Ideal for transient spaces
- Supports energy reduction
Three-hour backup
- 2–3W emergency output
- Safety-focused configuration
- Project specification support
BUILT AROUND REAL PROJECTS
Choose the look.
Match the performance.
Start with the power, bezel and finish, then add sensing or emergency capability to suit the operation of each space.
20W or 25W
Match output to room size, mounting position and lighting requirements.
Full or half bezel
Coordinate the visual expression with the surrounding architecture.
Sensor or emergency
Add microwave detection and three-hour emergency backup where required.
TECHNICAL SPECIFICATIONS
Everything you need
to specify MC-822.
Need project files?
Request datasheet, IES/LDT and certificates →| Model | MC-822 |
|---|---|
| Power | 20W / 25W |
| Dimensions | Ø300 × H70 mm |
| Luminous efficacy | 100 lm/W standard · up to 120 lm/W optional |
| CCT options | 2700K · 3000K · 4000K · 5000K · 6000K |
| Bezel options | Full bezel · Half bezel |
| Finish options | White · Black |
| Diffuser | UV-resistant polycarbonate |
| Ingress protection | IP65 |
| Impact resistance | IK10 |
| Mounting | Ceiling-mounted or wall-mounted |
| Sensor option | Microwave motion sensor |
| Emergency option | 3-hour backup · 2–3W emergency output |
| Warranty / compliance | 5-year system warranty · CE · RoHS |
APPLICATIONS
Designed for the routes
people rely on every day.
Technical corridors
Protected, efficient lighting for service areas and exposed building routes.

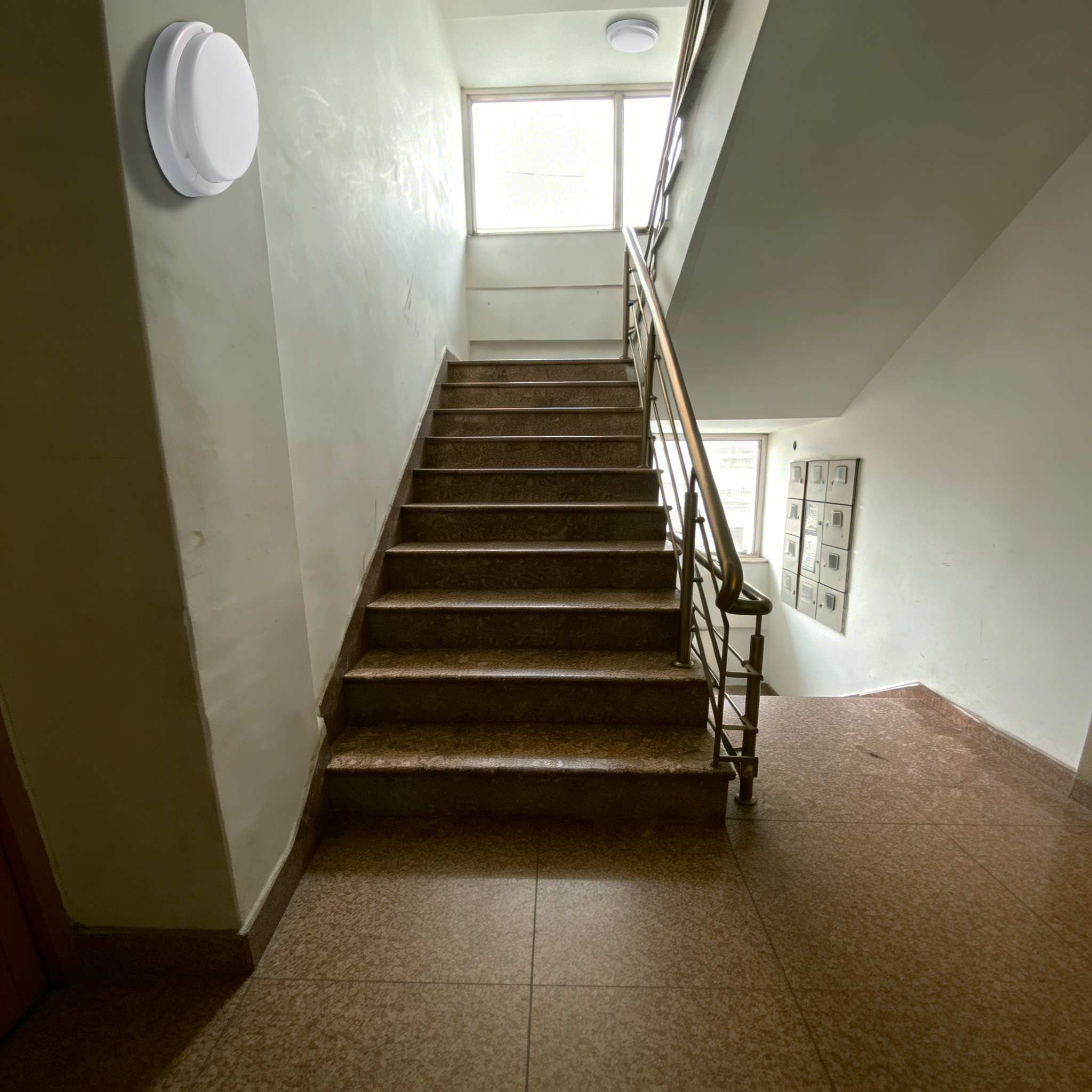

Public stairwells
Impact-resistant illumination for busy shared circulation spaces.
Transit infrastructure
Reliable coverage for entrances, corridors and public access routes.
SIMPLE PROJECT SUPPORT
From selection
to installation.
Our team helps match the output, finish, emission and control configuration to your project requirements.
-
01
Share requirements
Tell us the application, quantity, power, finish and control requirements.
-
02
Confirm configuration
Receive a matched specification, quotation and available project files.
-
03
Approve and produce
Confirm your order and production requirements with our lighting team.
FREQUENTLY ASKED
Before you specify.
How slim is the MC-822?
MC-822 measures Ø300 × H70 mm, giving it a low-profile surface-mounted appearance.
Which bezel and finish combinations are available?
Choose either a full or half bezel, with both designs available in white or black.
Can MC-822 be used outdoors?
Its IP65 ingress protection, IK10 impact resistance and UV-resistant diffuser support indoor and suitable outdoor installations.
Are sensor and emergency versions available?
Yes. Microwave sensing and a three-hour emergency version with 2–3W emergency output are available.
Customized & Standard Ceiling Light Solutions
From standard batch orders to tailored OEM/ODM specifications. Tell us what you need, and our engineering team will provide custom configurations and competitive quotes.
- Flexible OEM / ODM options
- Direct factory volume pricing
- Datasheets & compliance files
- Response within 1 business hour
