DUAL-LAYER ILLUMINATION
MA-8008
Functional light.
Architectural halo.
A 24W round LED ceiling light combining uniform front illumination with a soft indirect halo that washes the mounting surface and reduces visual contrast.
SIGNATURE OPTICAL EFFECT
A halo that
softens the
space.
The main diffuser delivers functional downward light, while a concealed secondary light path creates a soft ring around the mounting surface.
Front illumination
Uniform general lighting through the wide opal diffuser.
Ceiling-wash halo
Indirect side light adds depth and reduces the hard edge between fixture and surface.
Enhanced visual comfort
A softer surrounding luminance helps create a more balanced appearance.
CHOOSE YOUR FUNCTION
One halo platform.
Three functional configurations.
Distinctive everyday lighting
- 24W output
- Front light with halo side glow
- CCT Switchable Choice
Light only when needed
- Microwave motion sensor
- Ideal for transient spaces
- Supports energy reduction
Three-hour backup
- 2–3W emergency output
- Three-hour emergency operation
- Project specification support
TECHNICAL SPECIFICATIONS
Everything you need
to specify MA-8008.
Need project files?
Request datasheet, IES/LDT and certificates →| Model | MA-8008 |
|---|---|
| Power | 24W |
| Dimensions | Ø320 × H77 mm |
| Luminous efficacy | 100 lm/W standard · up to 120 lm/W optional |
| CCT options | 2700K · 3000K · 4000K · 5000K · 6000K |
| Light distribution | Uniform front illumination · indirect halo side glow |
| Diffuser | UV-resistant polycarbonate |
| Thermal management | Die-cast aluminium heat sink |
| Ingress protection | IP65 |
| Impact resistance | IK10 |
| Mounting | Ceiling-mounted or wall-mounted |
| Sensor option | Microwave motion sensor |
| Emergency option | 3-hour backup · 2–3W emergency output |
| Warranty / compliance | 5-year system warranty · CE · RoHS |
APPLICATIONS
Functional light
with architectural presence.

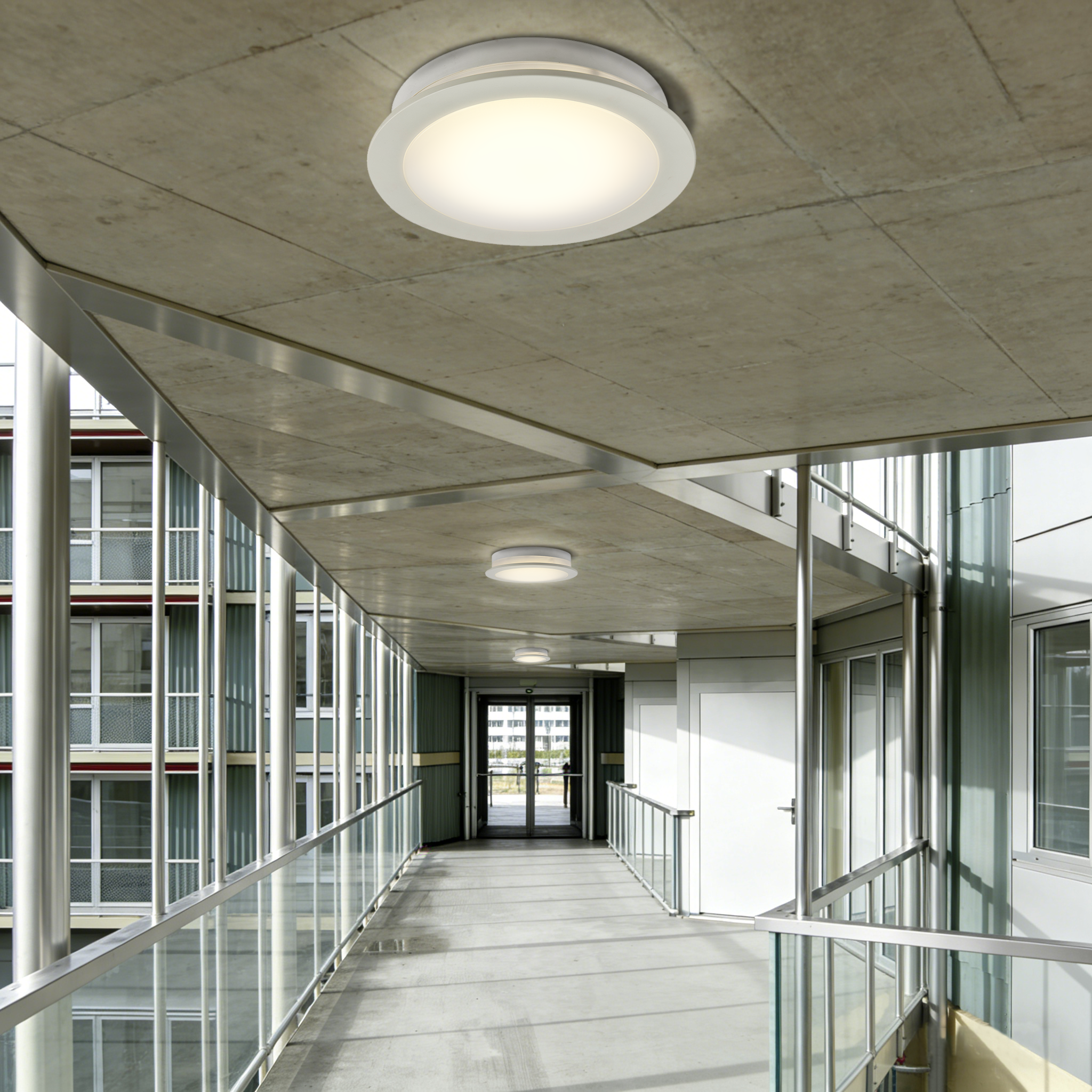

Commercial lobbies
Functional illumination with a softer ceiling presence for welcoming shared interiors.

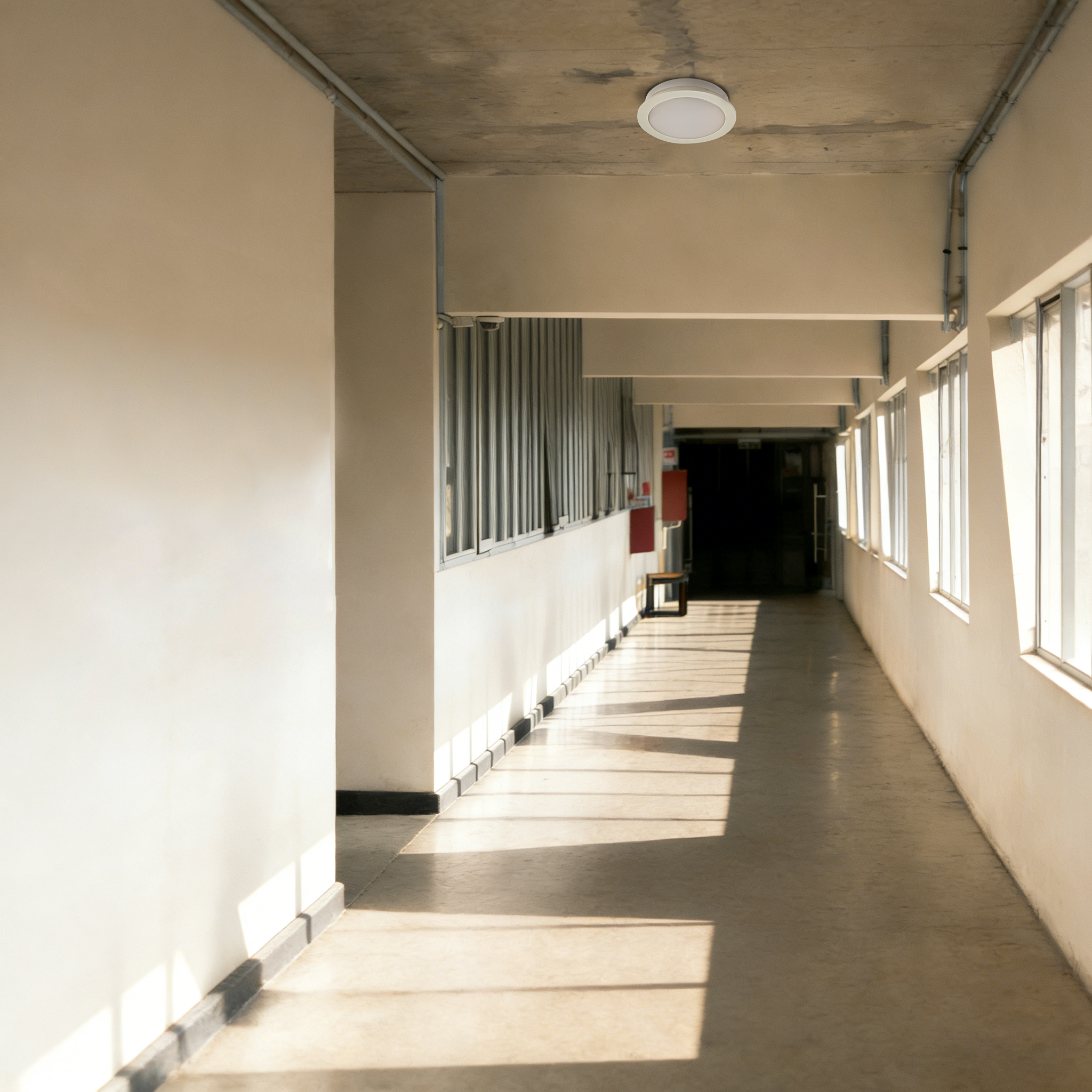

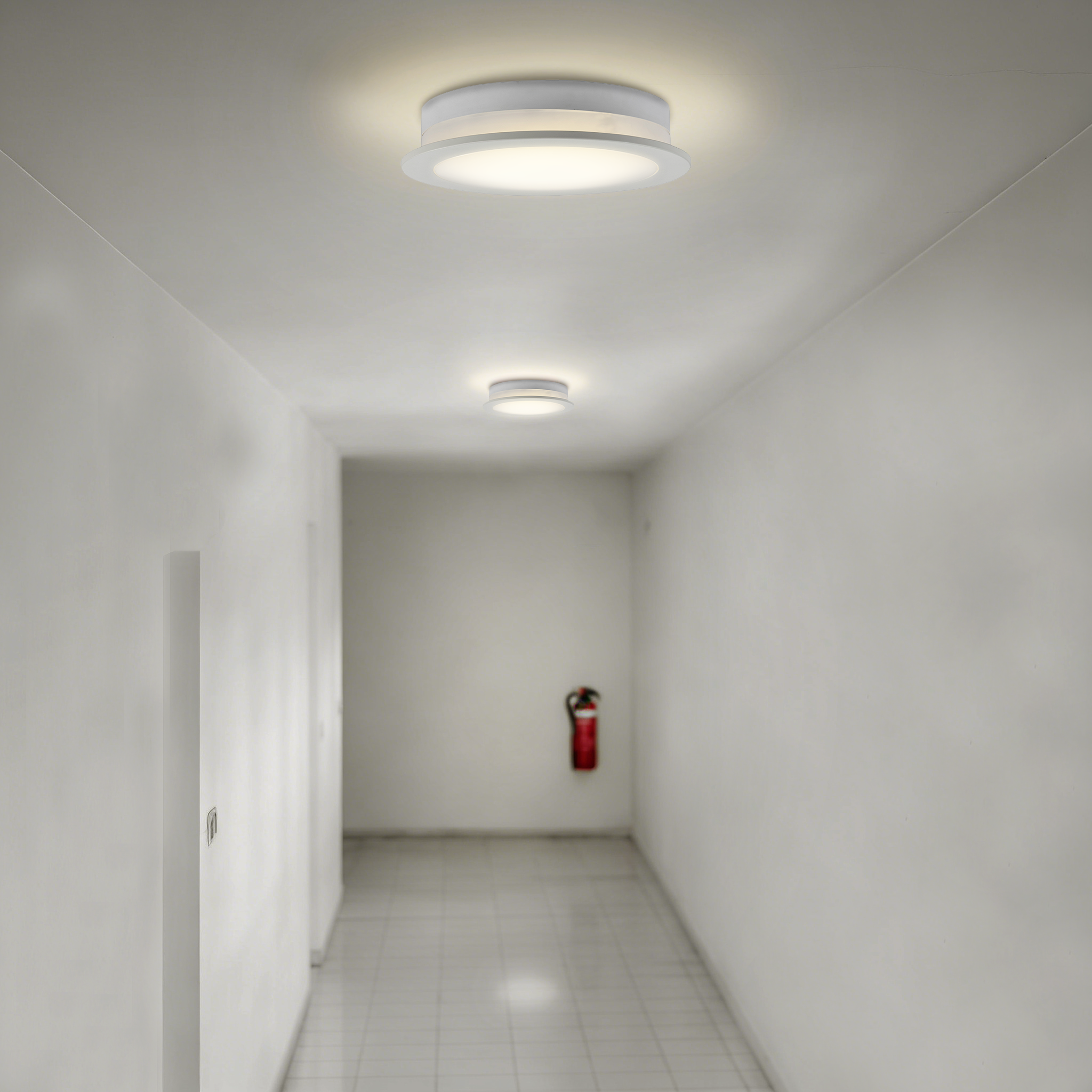

Corridors and circulation
Uniform forward light and a soft halo help reduce visual contrast along circulation routes.

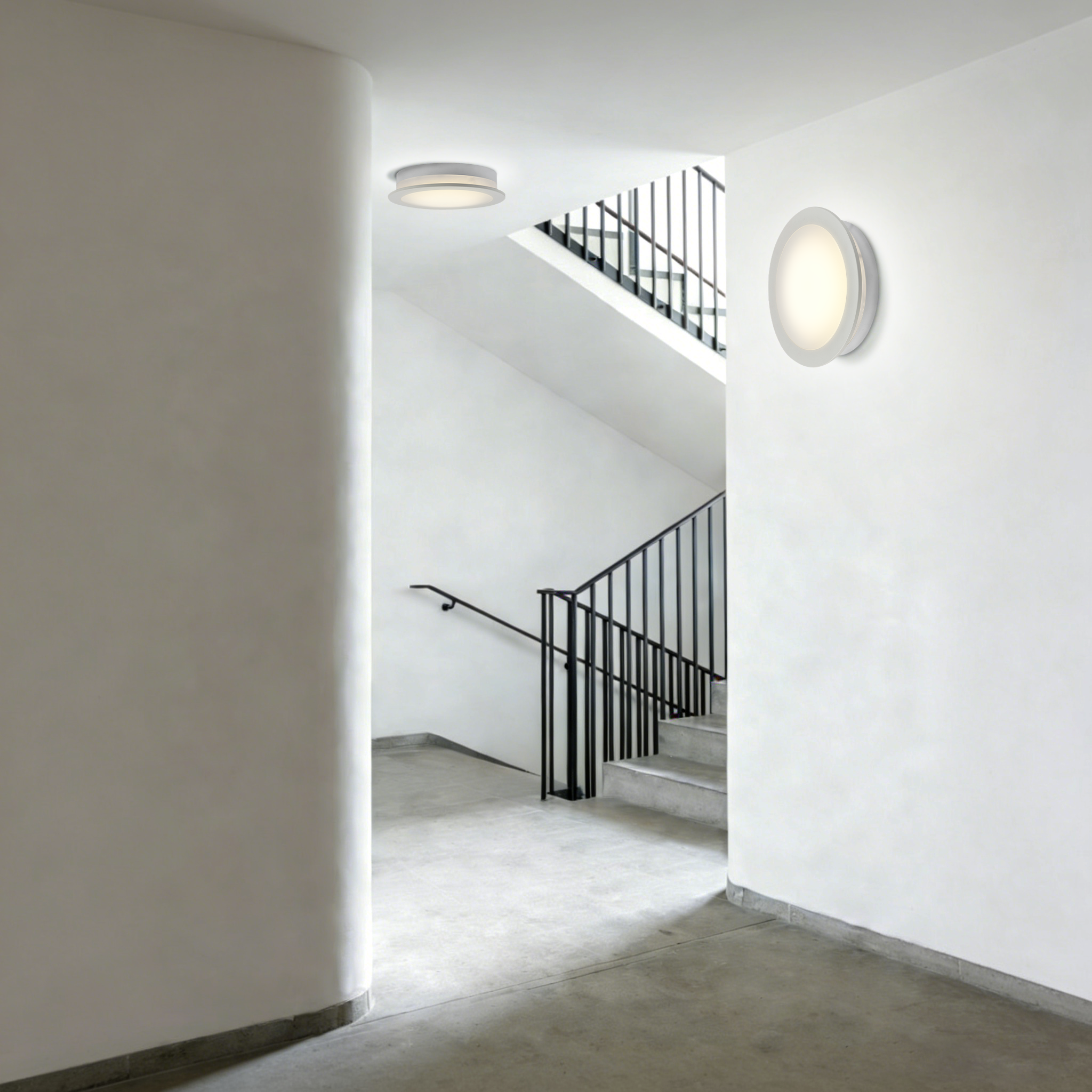

Stairwells and common areas
IP65 and IK10 protection support dependable lighting in frequently used public spaces.
Public staircases
Impact-resistant wall-mounted illumination delivering comfort and reliable visibility.
Office passageways
Dual-layer lighting providing balanced forward illumination and subtle perimeter depth.
SIMPLE PROJECT SUPPORT
From selection
to installation.
Our team helps match the output, finish, emission and control configuration to your project requirements.
-
01
Share requirements
Tell us the application, quantity, power, finish and control requirements.
-
02
Confirm configuration
Receive a matched specification, quotation and available project files.
-
03
Approve and produce
Confirm your order and production requirements with our lighting team.
FREQUENTLY ASKED
Before you specify.
What is the MA-8008 halo effect?
It is a soft indirect side glow that washes the mounting surface around the luminaire while the front diffuser provides functional general lighting.
Does the halo replace the main light output?
No. MA-8008 combines uniform front illumination with the secondary halo, so the halo complements rather than replaces the main output.

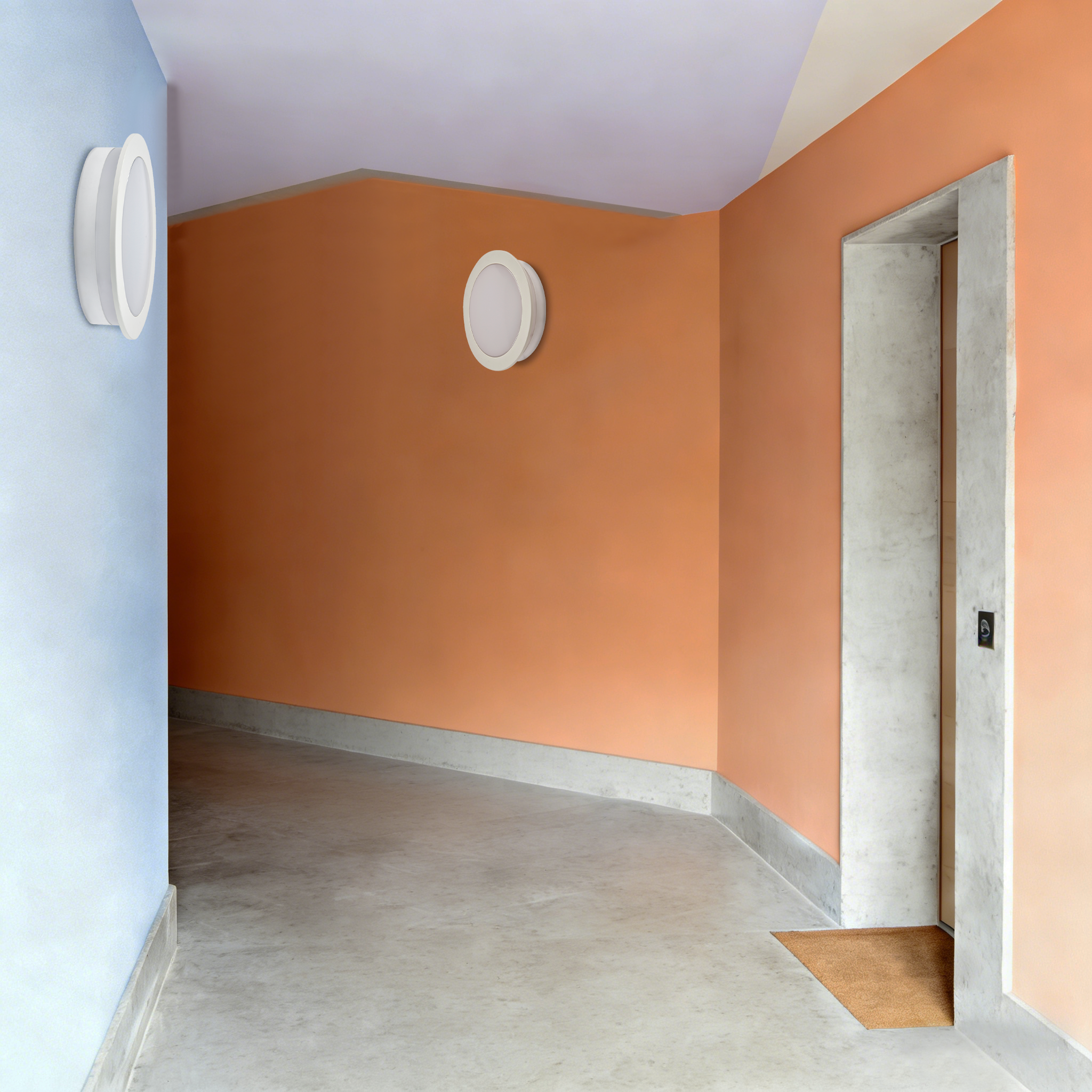

Can MA-8008 be wall mounted?
Yes. The product supports wall or ceiling mounting. Always coordinate the mounting position and desired halo appearance during project review.
Are sensor and emergency versions available?
Yes. A microwave sensor and a three-hour emergency version with 2–3W emergency output are available.
Customized & Standard Ceiling Light Solutions
From standard batch orders to tailored OEM/ODM specifications. Tell us what you need, and our engineering team will provide custom configurations and competitive quotes.
- Flexible OEM / ODM options
- Direct factory volume pricing
- Datasheets & compliance files
- Response within 1 business hour
