MODULAR PROJECT LIGHTING
MA-8007 · IP65 LED Ceiling Light
A modular round luminaire with interchangeable 3 frame designs and three frame colours—white, black and grey—plus aluminium heat management and project-ready controls.
DESIGNED FOR PROJECT FLEXIBILITY
One light platform.
Three frame designs.
MA-8007 combines a protected 20W / 25W lighting platform with three interchangeable frame designs. Each frame is available in white, black or grey for greater project flexibility.
Three interchangeable frames
Choose from three distinct face-ring designs to create different visual effects using the same lighting platform.
Three coordinated finishes
Each frame is available in white, black or grey to coordinate with ceilings, walls, façades and architectural finishes.
Protected performance
IP65 and IK10 protection, a UV-resistant diffuser and an aluminium heat sink support demanding indoor and outdoor projects.
CHOOSE YOUR FUNCTION
One lighting platform.
Three functional configurations.
Reliable everyday lighting
- 20W or 25W output
- Three interchangeable frame designs
- White, black or grey finishes
Light only when needed
- Integrated microwave motion sensor
- Ideal for corridors and transient spaces
- Helps reduce unnecessary energy use
Three-hour backup
- 2–3W emergency output
- Three-hour emergency operation
- Project specification support
PRODUCT INTRODUCTION
See MA-8007
in detail.
Watch the product introduction for a closer look at the luminaire, its construction and the interchangeable frame system.
Product appearance
Review the round housing, diffuser and installed proportions.

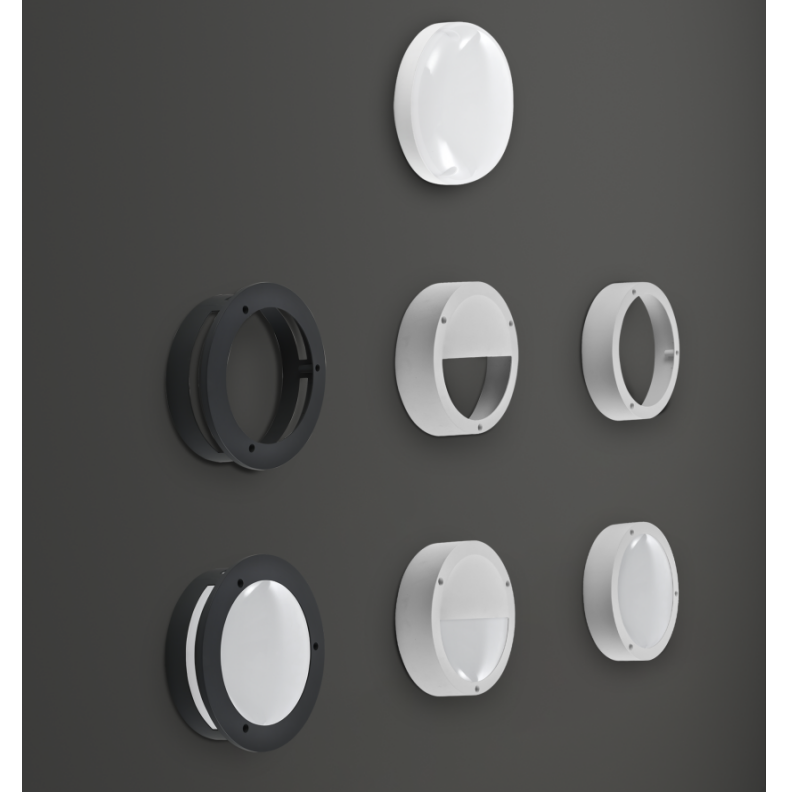

Interchangeable face rings
See how the modular frame system changes the product appearance.
Three frame colours
Choose white, black or grey to coordinate with the project.
TECHNICAL SPECIFICATIONS
Everything you need
to specify MA-8007.
Need project files?
Request datasheet, IES/LDT and certificates →| Model | MA-8007 |
|---|---|
| Power | 20W / 25W |
| Dimensions | Ø280 × H105 mm |
| Luminous efficacy | 100 lm/W standard · up to 120 lm/W optional |
| CCT options | 2700K · 3000K · 4000K · 5000K · 6000K |
| Frame designs | Full frame · Half-cover frame · Open frame |
| Finish options | Black · White · Grey |
| Diffuser | UV-resistant polycarbonate |
| Thermal management | Die-cast aluminium heat sink |
| Ingress protection | IP65 |
| Impact resistance | IK10 |
| Mounting | Ceiling-mounted or wall-mounted |
| Sensor option | Microwave motion sensor |
| Emergency option | 3-hour backup · 2–3W emergency output |
| Warranty / compliance | 5-year system warranty · CE · RoHS |
APPLICATIONS
Designed to adapt
across the project.

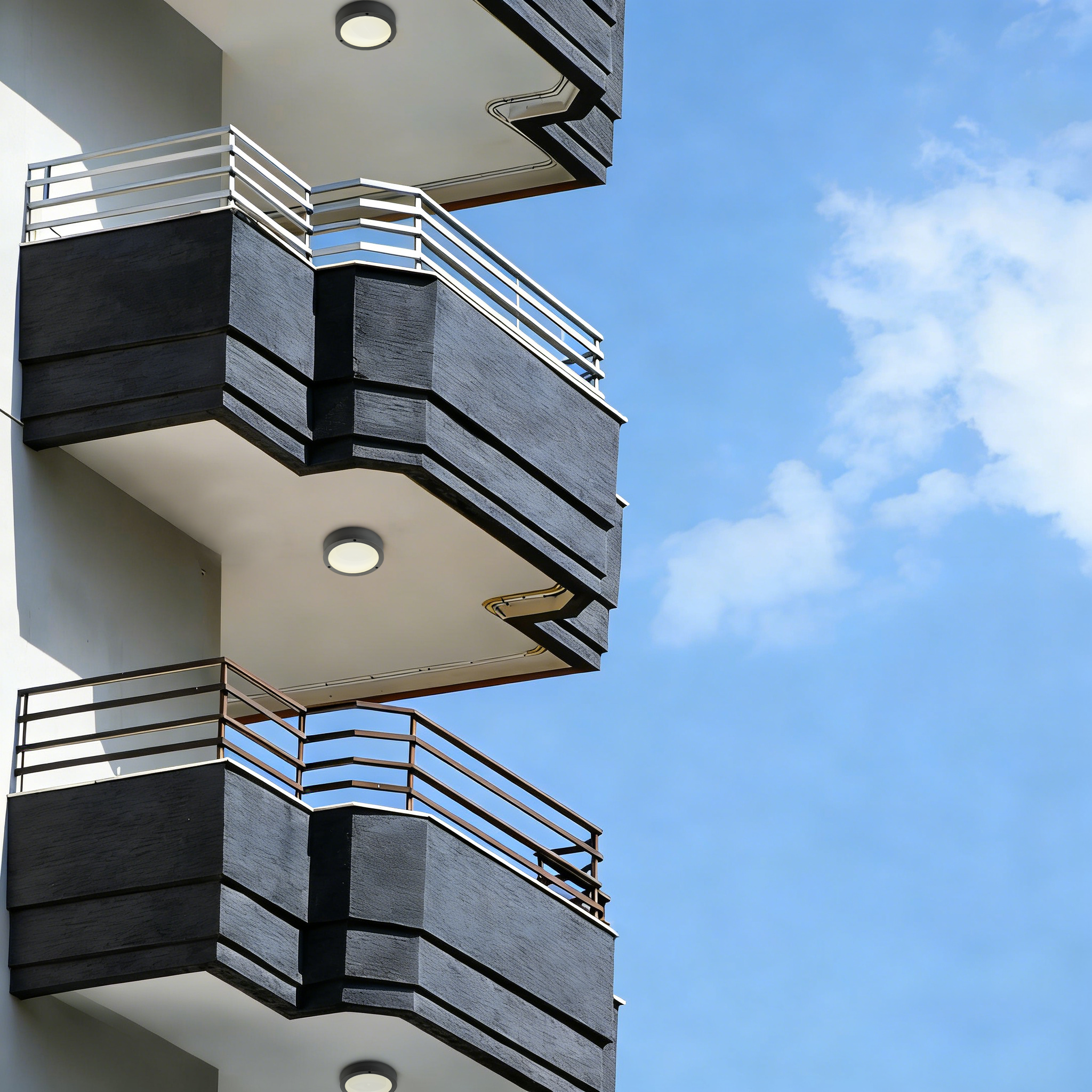

Building façades
IP65 wall lighting with a frame and finish matched to the architecture.

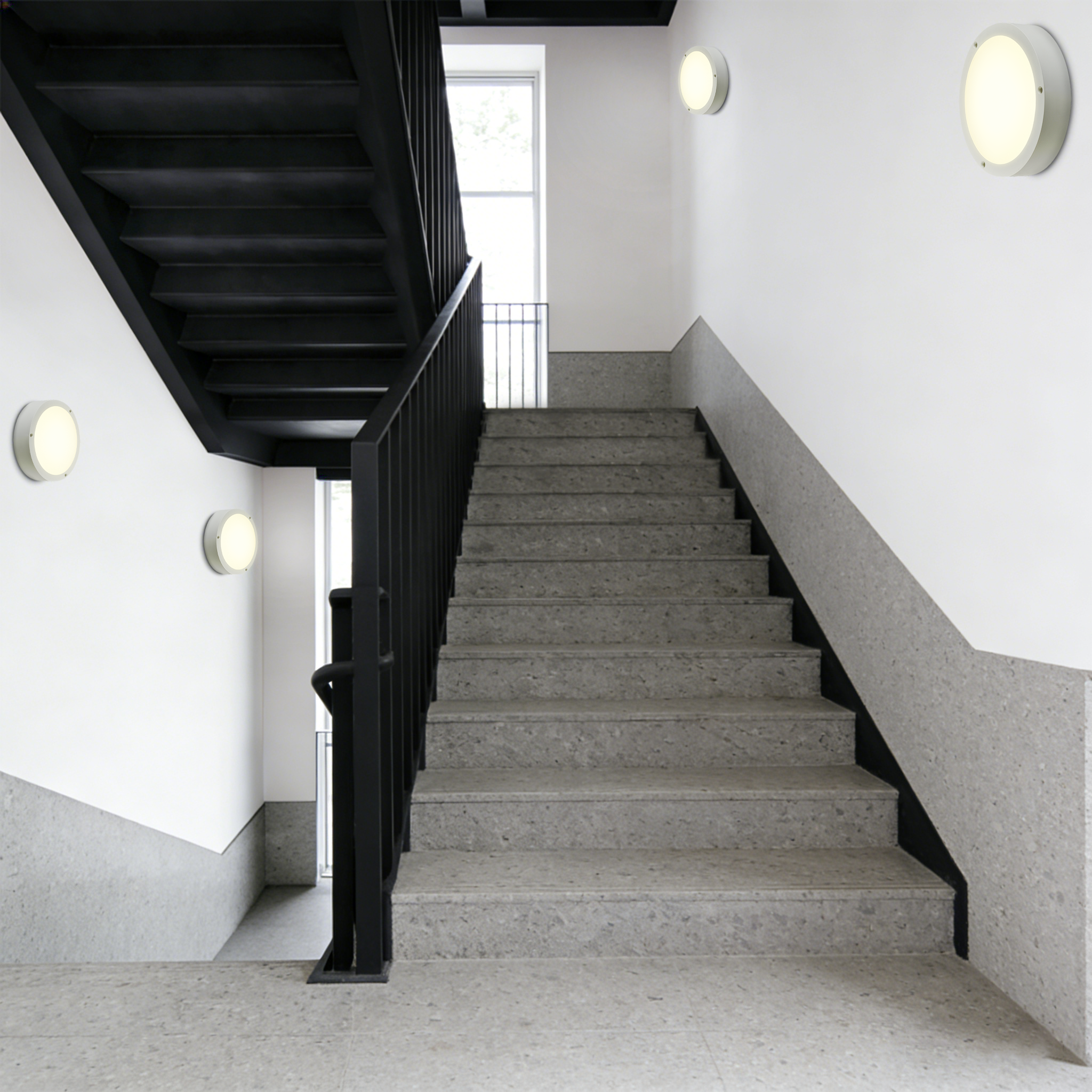

Residential stairwells
IK10 protection and comfortable output for shared circulation spaces.

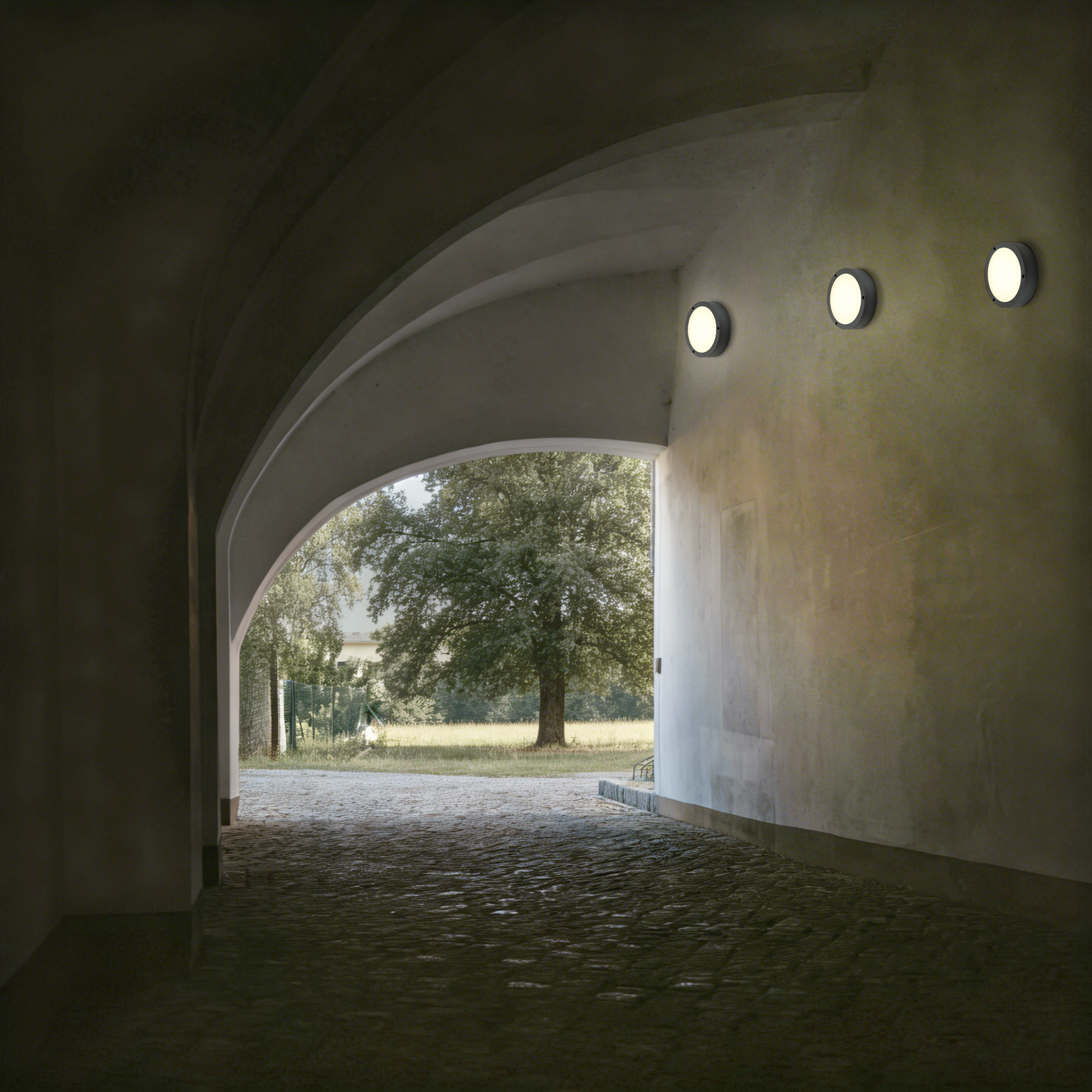

Balconies and entrances
Reliable lighting for covered exterior and residential access areas.
Corridors & walkways
Clean, low-glare illumination with smart sensor and emergency options.

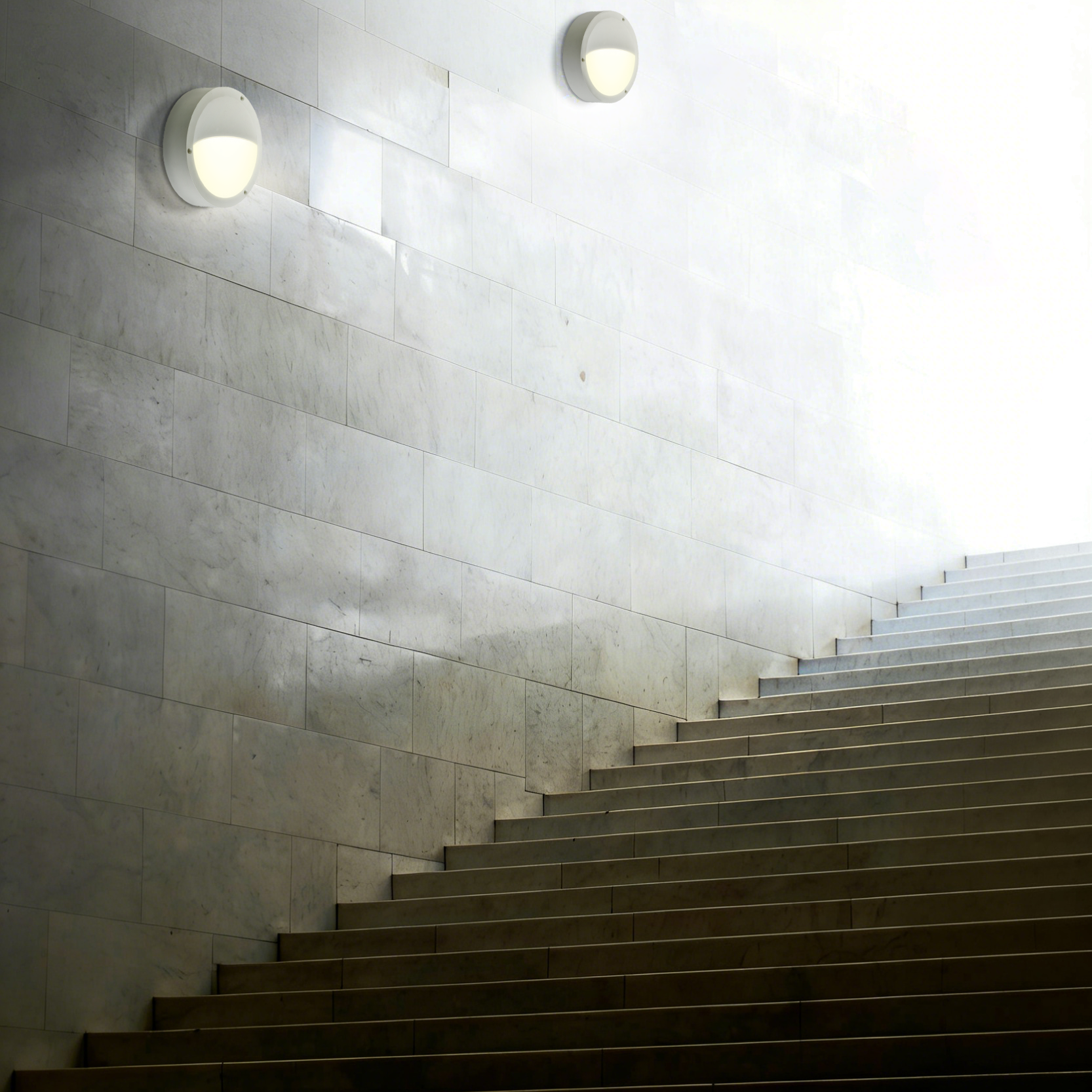

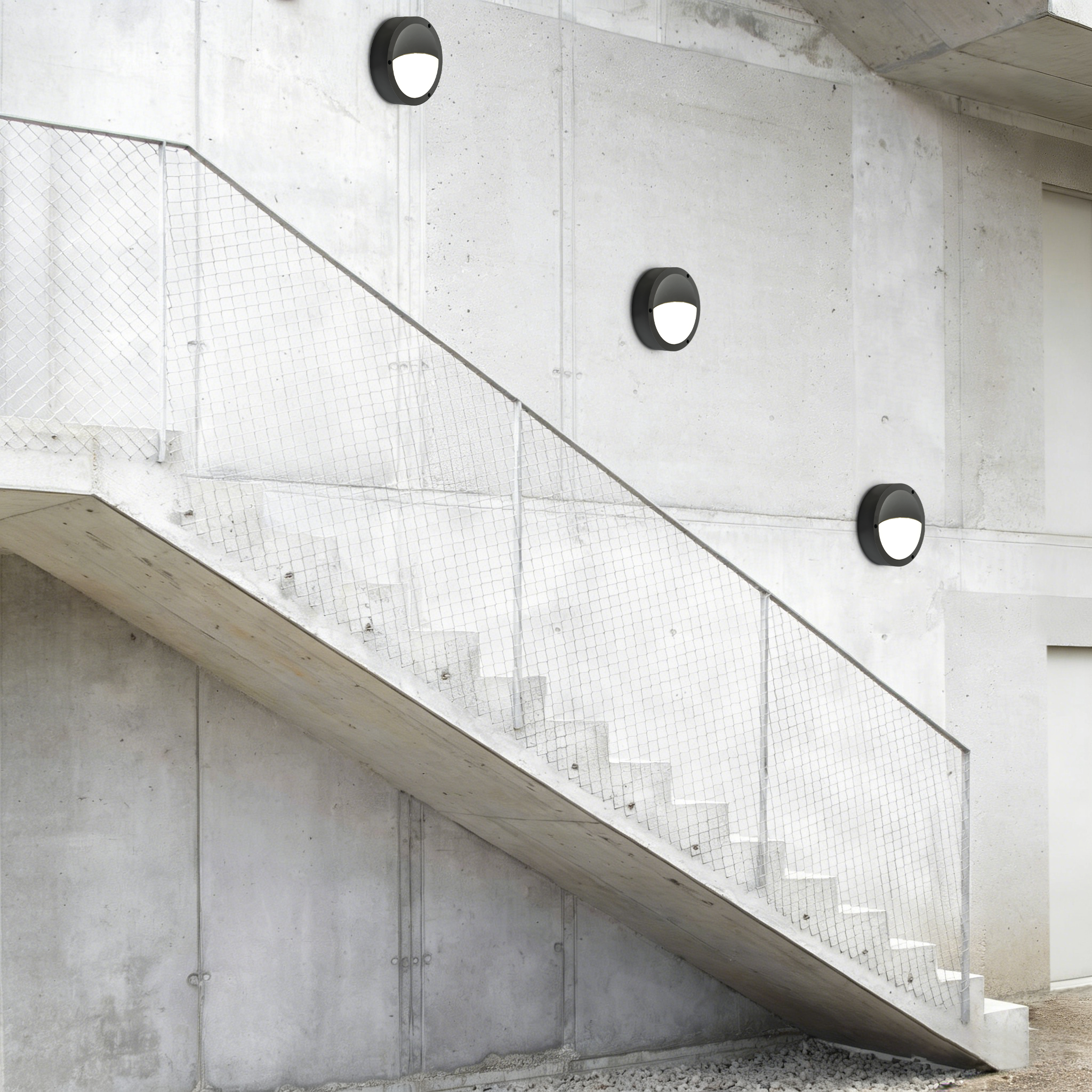

Public staircases
Robust impact resistance for busy commercial and public transit zones.
SIMPLE PROJECT SUPPORT
From selection
to installation.
Our team helps match the output, finish, emission and control configuration to your project requirements.
-
01
Share requirements
Tell us the application, quantity, power, finish and control requirements.
-
02
Confirm configuration
Receive a matched specification, quotation and available project files.
-
03
Approve and produce
Confirm your order and production requirements with our lighting team.
FREQUENTLY ASKED
Before you specify.
What makes MA-8007 modular?
The lighting platform supports interchangeable frame rings, including full-frame, half-frame and open-frame designs.
Which finishes are available?
MA-8007 can be specified in black, white or grey to coordinate with different architectural palettes.
Can MA-8007 be wall mounted outdoors?
Yes. It supports wall or ceiling mounting, while IP65, IK10 and a UV-resistant diffuser suit demanding indoor and appropriate outdoor areas.
Are sensor and emergency versions available?
Yes. Microwave sensing and a three-hour emergency version with 2–3W emergency output are available.
