HIGH-OUTPUT PROTECTED LIGHTING
MA-8005 · IP65 LED Ceiling Light
A robust round luminaire with a die-cast aluminium heat sink, uniform opal diffuser, sensor and emergency options.
BUILT FOR DEPENDABLE OUTPUT
Powerful light.
Controlled temperature.
MA-8005 combines a 24W LED platform, aluminium thermal management and protected construction for demanding public and commercial applications.
24W high-output platform
Efficient output supports corridors, car parks, tunnels, utility rooms and exterior circulation areas.
Aluminium heat management
A die-cast aluminium heat sink helps transfer heat away from the LED system for stable long-term operation.
Protected for demanding areas
IP65 ingress protection, IK10 impact resistance and a UV-resistant diffuser support indoor and outdoor installations.
CHOOSE YOUR CONFIGURATION
One 24W platform.
Three project-ready options.
Dependable everyday lighting
- 24W LED output
- Five CCT choices
- Ceiling or wall mount
Light only when needed
- Microwave motion sensor
- Ideal for transient spaces
- Supports energy reduction
Three-hour backup
- 2–3W emergency output
- Safety-focused configuration
- Project specification support
PRODUCT DEMONSTRATION
See MA-8005
in action.
Watch the luminaire up close for a clearer view of its round housing, opal diffuser, construction details and real product appearance.
Product appearance
Review the proportions, white finish and full-dome diffuser.
Construction details
See the housing and practical product structure more clearly.
Lighting demonstration
View the illuminated appearance and uniform diffuser output.
TECHNICAL SPECIFICATIONS
Everything you need
to specify MA-8005.
Need project files?
Request datasheet, IES/LDT and certificates →| Model | MA-8005 |
|---|---|
| Power | 24W |
| Dimensions | Ø270 × H83 mm |
| Luminous efficacy | 100 lm/W standard · up to 120 lm/W optional |
| CCT options | 2700K · 3000K · 4000K · 5000K · 6000K |
| Diffuser | UV-resistant polycarbonate |
| Thermal management | Die-cast aluminium heat sink |
| Ingress protection | IP65 |
| Impact resistance | IK10 |
| Mounting | Ceiling-mounted or wall-mounted |
| Sensor option | Microwave motion sensor |
| Emergency option | 3-hour backup · 2–3W emergency output |
| Warranty / compliance | 5-year system warranty · CE · RoHS |
APPLICATIONS
Reliable output for
demanding everyday spaces.

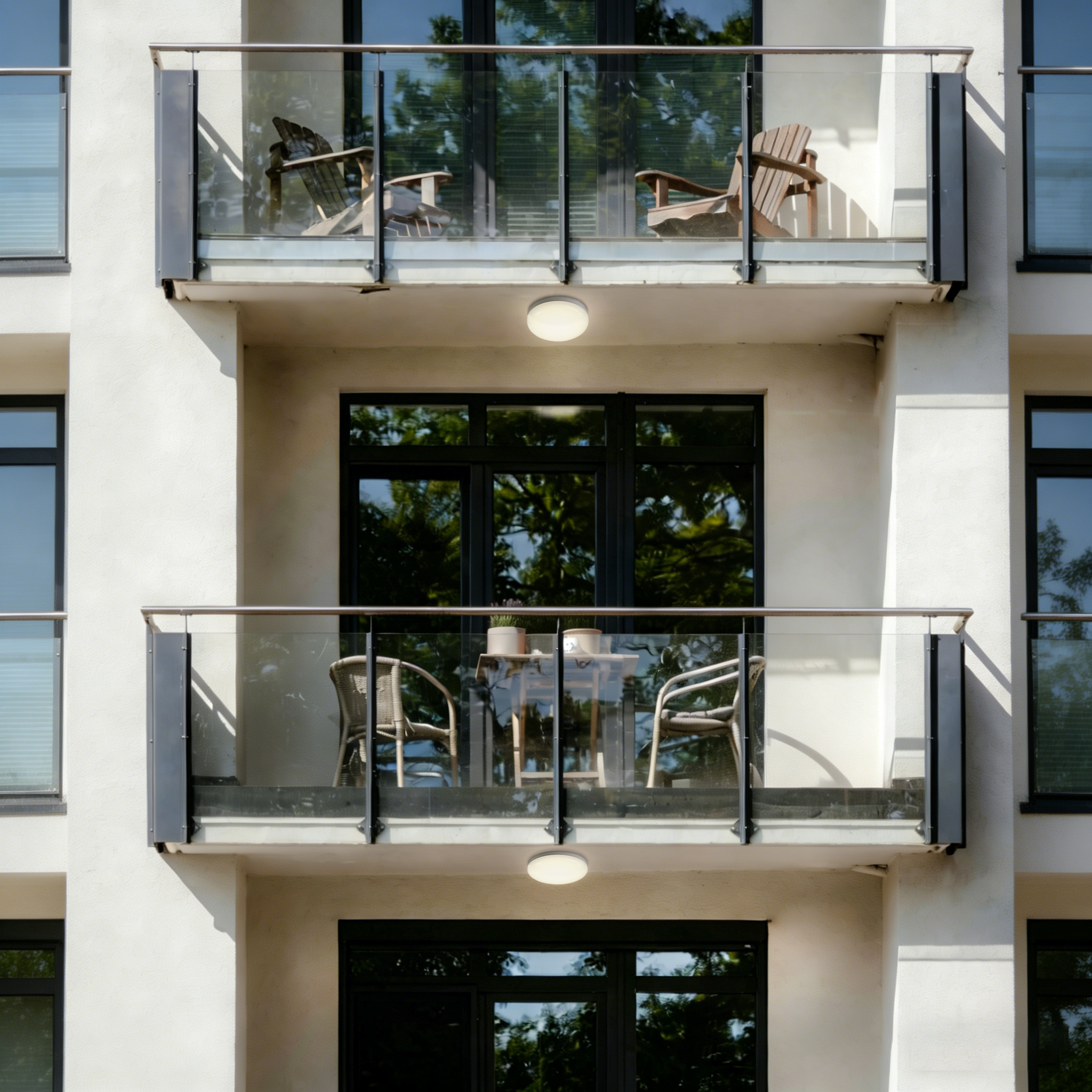

Balconies and entrances
IP65 lighting for residential access and covered exterior areas.

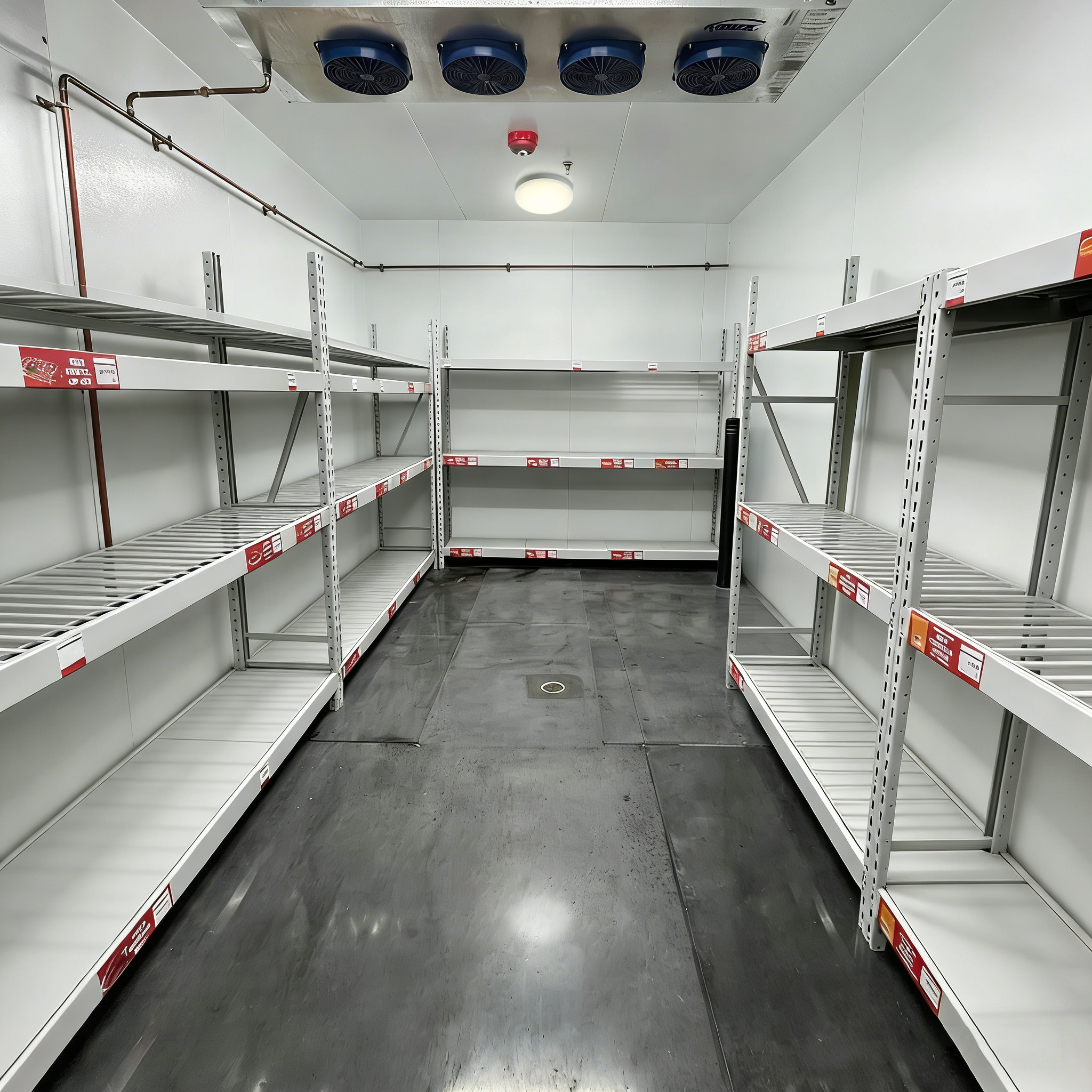

Cold storage rooms
Reliable 24W illumination for practical temperature-controlled spaces.

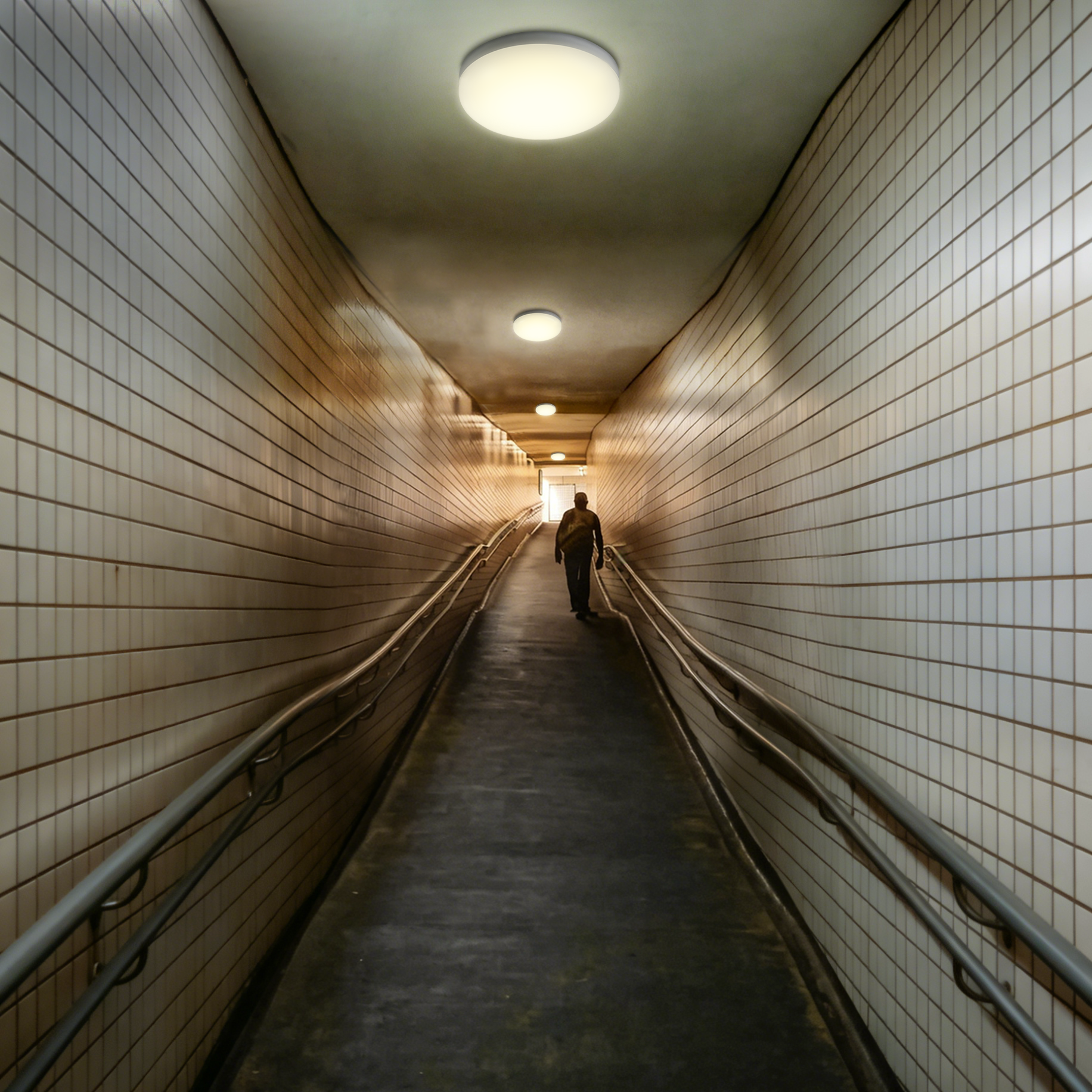

Pedestrian tunnels
Impact-resistant lighting for ramps and busy public circulation routes.

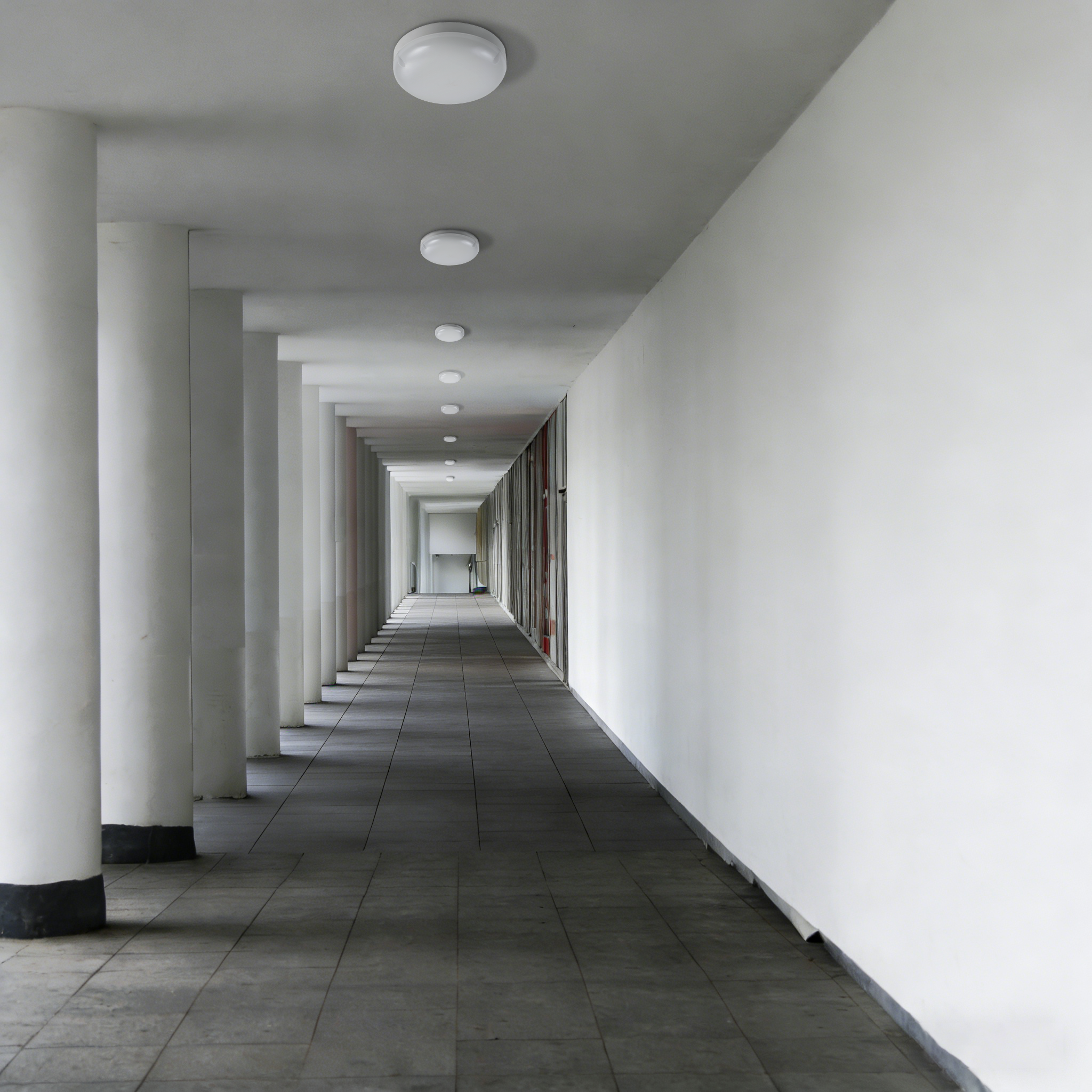

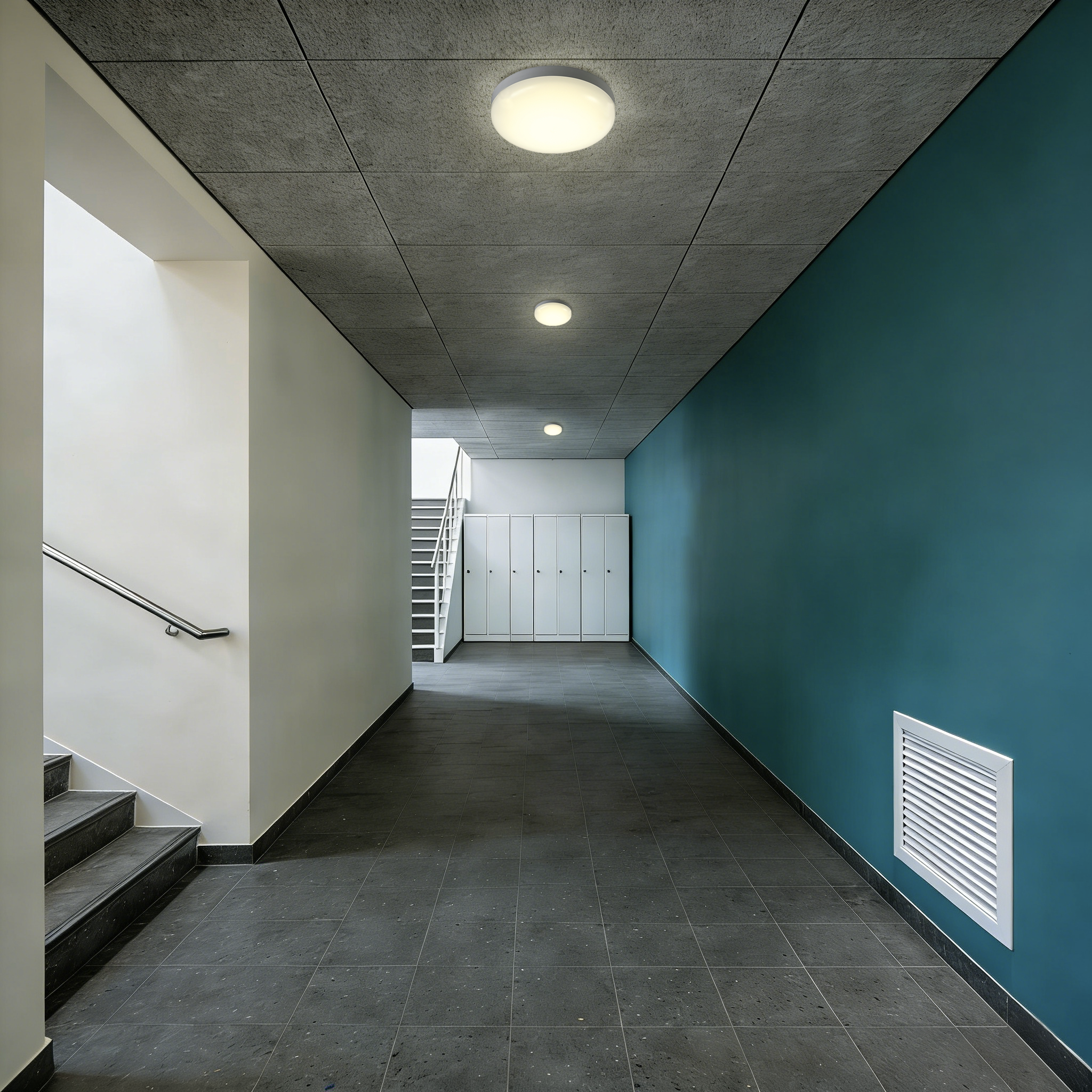

Access corridors
Uniform coverage for utility routes and shared circulation walkways.

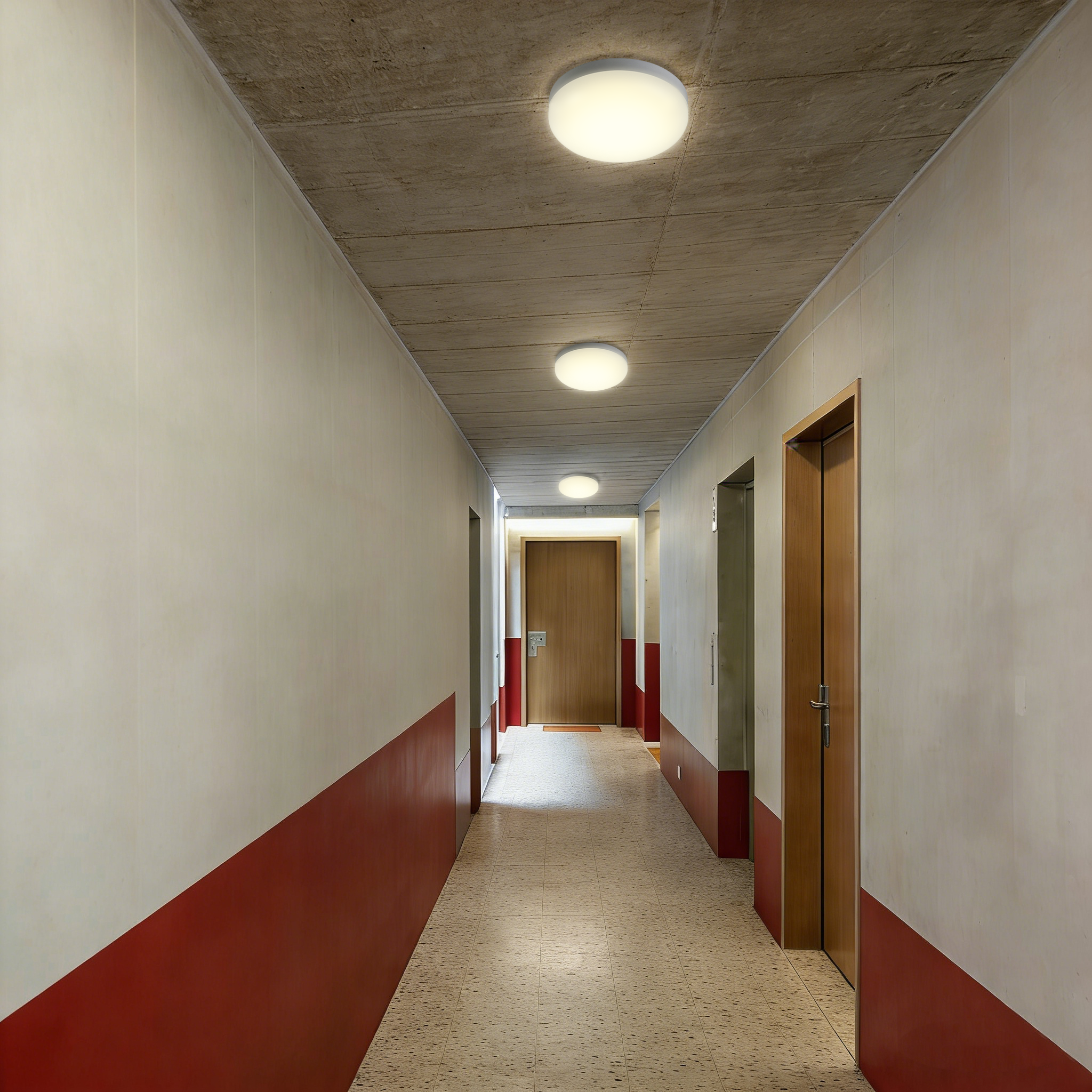

Apartment corridors
Clean, low glare light with sensor control for residential buildings.
SIMPLE PROJECT SUPPORT
From selection
to installation.
Our team helps match the output, finish, emission and control configuration to your project requirements.
-
01
Share requirements
Tell us the application, quantity, power, finish and control requirements.
-
02
Confirm configuration
Receive a matched specification, quotation and available project files.
-
03
Approve and produce
Confirm your order and production requirements with our lighting team.
FREQUENTLY ASKED
Before you specify.
Why does MA-8005 use an aluminium heat sink?
The die-cast aluminium heat sink helps transfer heat away from the LED system, supporting stable performance and long-term reliability.
Can MA-8005 be wall mounted?
Yes. MA-8005 is suitable for both ceiling-mounted and wall-mounted installation.
Is MA-8005 suitable for outdoor applications?
Its IP65 ingress protection, IK10 impact resistance and UV-resistant diffuser support indoor and suitable outdoor installations.
Are sensor and emergency versions available?
Yes. Microwave sensing and a three-hour emergency version with 2–3W emergency output are available.
Customized & Standard Ceiling Light Solutions
From standard batch orders to tailored OEM/ODM specifications. Tell us what you need, and our engineering team will provide custom configurations and competitive quotes.
- Flexible OEM / ODM options
- Direct factory volume pricing
- Datasheets & compliance files
- Response within 1 business hour
