Commercial Bulkhead Lighting
MC-801 · IP54 / IK10 LED Bulkhead
A robust 15W high-efficiency luminaire engineered for corridors, stairwells, car parks, and shared architectural spaces—supporting optional smart sensing and emergency backup.
Built for shared spaces
Reliable light.
Lower maintenance.
MC-801 combines a robust round housing, efficient LED performance and practical control options for public and commercial environments.
Built to withstand impact
IK10 impact resistance and a UV-resistant polycarbonate body help protect the luminaire in demanding circulation areas.
Efficient by design
Standard efficacy of 100 lm/W, with an optional version delivering up to 120 lm/W for lower operating costs.
Flexible for every project
Specify custom colour temperatures, microwave motion sensing and a three-hour emergency backup option.
Choose Your Configuration
One platform.
Three project-ready options.
Select the optimal operating mode to suit your project requirements—from cost-effective baseline lighting to presence-based energy saving and safety-critical emergency compliance.
Continuous, dependable illumination
The standard configuration provides direct switch-controlled lighting with high luminous efficiency (up to 120 lm/W). Ideal for commercial corridors, staircases, plant rooms, and general utility areas where manual or centralized timer switching is used.
- CCT Switchable: Selectable colour temperatures (2700K / 3000K / 4000K / 5000K / 6000K) via internal dip switch.
- Robust Protection: Fully sealed IP54 weatherproofing paired with IK10 impact protection.
- Driver Reliability: Long-life LED driver with high power factor (PF > 0.90) and flicker-free output.
Intelligent presence detection
Integrated high-frequency microwave motion sensor seamlessly hidden behind the polycarbonate diffuser. Automatically illuminates when occupancy is detected and dims or powers off when areas remain unoccupied.
- Adjustable Detection: 360° ceiling or 150° wall coverage with up to 6–8m detection radius.
- Daylight Threshold: Configurable lux sensor prevents unnecessary daylight triggering (2 Lux / 10 Lux / 50 Lux / Disable).
- Hold Time & Standby: Adjustable hold-time (5s to 30min) with optional bi-level corridor dimming.
3-Hour self-contained battery backup
Equipped with an integrated LiFePO4 emergency battery pack and smart monitoring circuit. In the event of mains power failure, the luminaire instantly switches to battery operation, providing compliant egress lighting along escape routes.
- 3-Hour Duration: High-temperature LiFePO4 battery pack delivering dependable 180-minute backup.
- LED Status Indicator: Discreet dual-color green/red LED indicator for clear charging and diagnostic feedback.
- Maintained / Non-Maintained: Configurable for continuous or emergency-only illumination.
Product Demonstration
See MC-801 in action.
Watch the luminaire being opened, handled and illuminated for a closer look at its construction, waterproof sealing and real-world lighting operation.
Product disassembly
A closer look at the housing, gear tray and internal seal structure.
Installation overview
See how the round bulkhead is easily wired and prepared for mounting.
Lighting test
View the homogeneous diffuser and illuminated appearance in operation.
Technical specifications
Everything you need
to specify MC-801.
Need project files?
Request datasheet, IES/LDT & certs →| Model | MC-801 |
|---|---|
| Power | 15W |
| Dimensions | Ø270 × H105 mm |
| Luminous efficacy | 100 lm/W standard · up to 120 lm/W optional |
| CCT options | 2700K · 3000K · 4000K · 5000K · 6000K (Switchable) |
| Ingress protection | IP54 |
| Impact resistance | IK10 |
| Materials | UV-resistant PC · die-cast aluminium heat sink |
| Mounting | Ceiling-mounted or wall-mounted |
| Emergency option | 3-hour backup · 2–3W emergency output (LiFePO4) |
| Sensor option | Microwave motion & daylight sensor available |
| Warranty / compliance | 5-year system warranty · CE · RoHS |
Applications
Designed for the spaces
people move through every day.
01Corridors
Uniform, high-efficiency illumination engineered for high-traffic circulation routes.

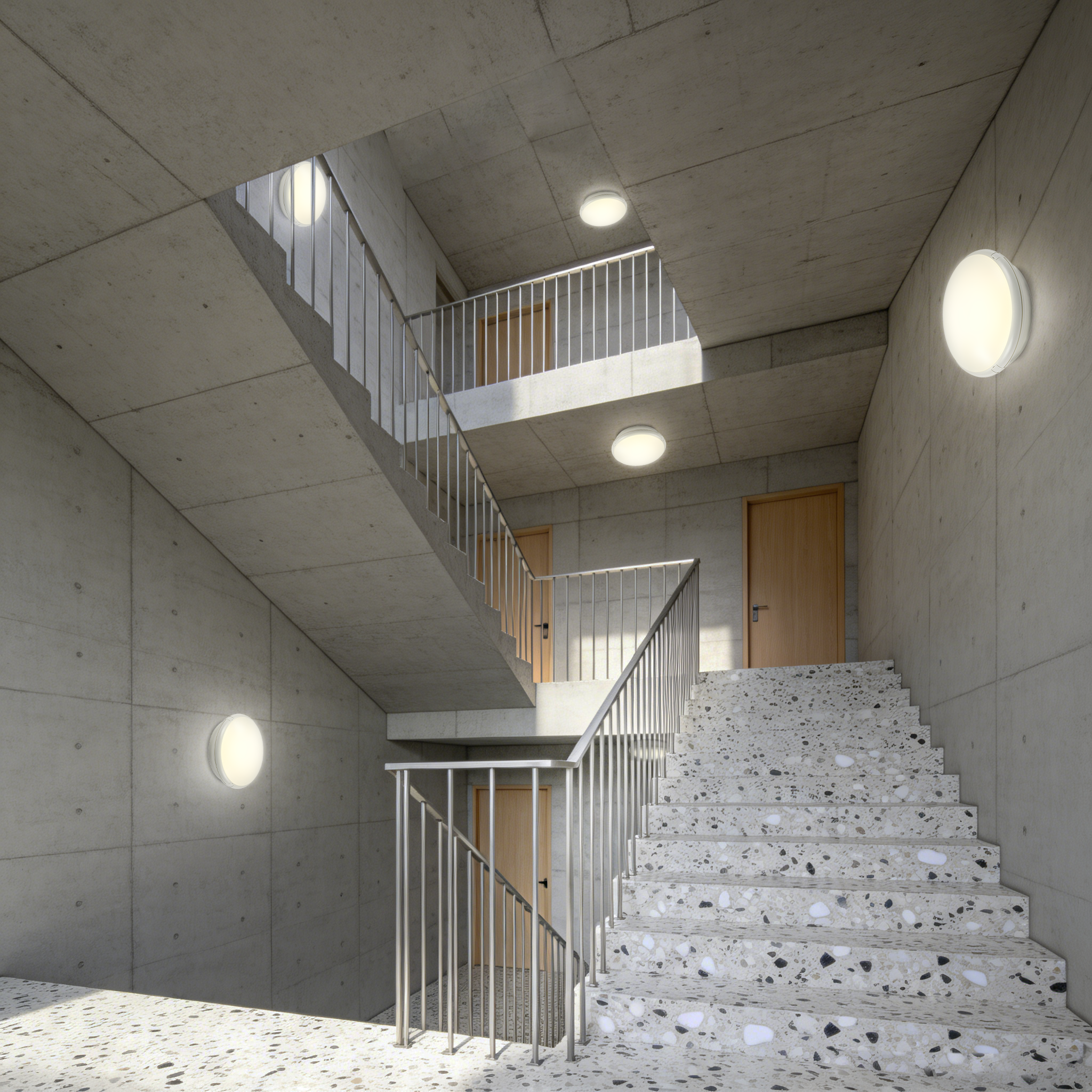

02Stairwells
IK10 impact resistance and optional 3-hour emergency backup for life safety egress.
03Service areas
Reliable, low-maintenance lighting for commercial utility rooms and technical zones.
04Balconies & Terraces
IP54 sealed weatherproofing resistant to moisture and dust ingress in semi-outdoor spaces.
05Communal Areas
Energy-saving microwave motion sensing for residential hallways and communal hubs.
Simple Project Support
From selection
to installation.
Our team helps confirm the right configuration and prepares the technical documentation and photometric data needed for your project.
-
01
Share requirements
Tell us the application, quantity, CCT, sensing and emergency backup options.
-
02
Confirm configuration
Receive matched specifications, competitive quotation and IES/LDT project files.
-
03
Approve & produce
Confirm your order and customisation requirements directly with our lighting engineering team.
Frequently Asked
Before you specify.
Can MC-801 be wall mounted?
Yes. MC-801 is engineered for versatile installation and is fully certified for both ceiling-mounted and wall-mounted orientations.
Is an emergency version available?
Yes. A 3-hour self-contained emergency version with long-life LiFePO4 battery pack and 2–3W output is available for project safety compliance.
Can I specify a motion sensor?
Yes. MC-801 can be integrated with an internal 5.8 GHz microwave motion & daylight sensor for automated presence detection in corridors and stairwells.
Which colour temperatures are offered?
Standard production comes equipped with CCT switchable technology: 2700K, 3000K, 4000K, 5000K and 6000K selectable via internal dip-switch.
