Vinci 360 · Configurable Architectural Tubular Light
360° tubular light, shaped for architecture.
A project-configurable tubular luminaire combining soft, uniform illumination with a distinctive metal grille. Adapt the length, finish, mounting, and control to create one consistent lighting language across indoor and outdoor spaces.
Project configuration, 3D CAD, and quotation support within 1 business hour.
PRODUCT & FACTORY CAPABILITIES
Designed for architecture.
Built around your specification.
Vinci 360 combines architectural expression with factory-configurable manufacturing. From uniform 360° illumination and custom grille patterns to dimensions, finishes, mounting and control, MANI turns project requirements into a documented, production-ready lighting solution.
Comfortable 360° Illumination
Diffuse tubular optics deliver soft, even light with reduced hotspots—supporting visual comfort in circulation areas, hospitality spaces and shared environments.
Custom Architectural Expression
Configurable grille patterns, finishes and end caps allow the luminaire to blend into the architecture or become a deliberate visual feature.
Freedom to Install
Mount vertically or horizontally, on walls or ceilings, or as a suspended element—using one product language across different spatial conditions.
Scaled to the Project
Two diameter options and project-specific lengths make it easier to coordinate proportions across intimate interiors and large architectural volumes.
Factory-Integrated Options
Drivers, DALI, TRIAC, 0–10V, sensors and emergency functions can be integrated and function-tested before delivery, reducing additional assembly and coordination on site.
Production-Ready Engineering
Our engineering team reviews dimensions, mounting, wiring, control and installation requirements before production— helping turn design intent into a practical manufacturing solution.
Project-Based Manufacturing
Standard configurations and custom-developed solutions for different project, brand and volume requirements
Prototype & Sample Support
Configuration review and sample production before batch manufacturing
Technical Documentation
Datasheets, 3D CAD, dimensional drawings, photometric files and available compliance documents
Factory Quality Assurance
Production inspection, final testing and a five-year system warranty
01 / INSTALLATION & SCALE
Flexible mounting, scaled to the project.

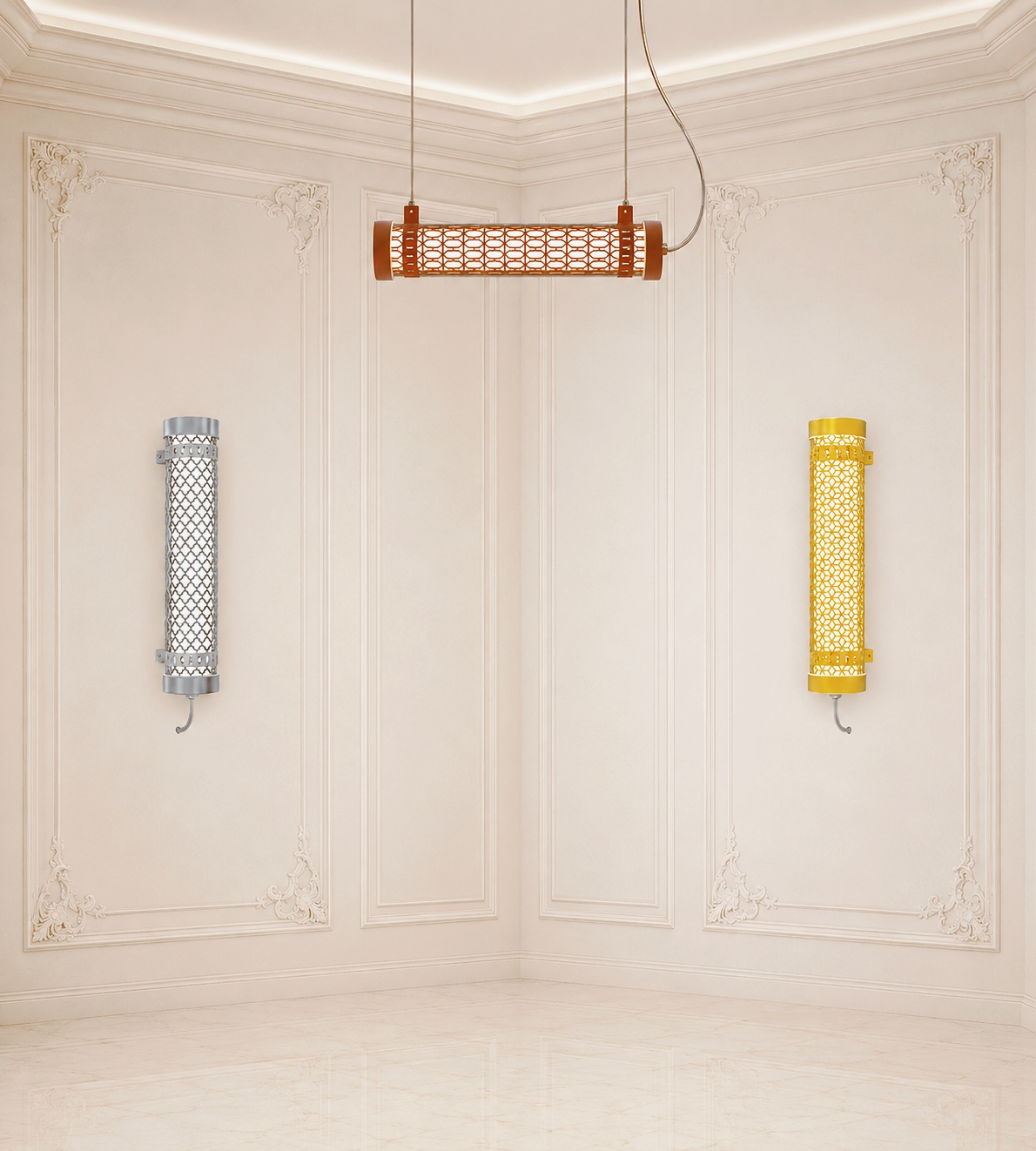

Vinci 360 can be installed vertically or horizontally, on walls or ceilings, or suspended as a linear architectural element. Two diameters and configurable lengths make it easier to coordinate one product language across different spaces.
- Mounting freedom
- Wall, ceiling, surface-mounted and suspended options.
- Project-specific sizes
- Ø70 / Ø100 mm profiles in 300–1800 mm lengths.
- Factory-configured details
- Brackets, end caps, cable entry and suspension details matched to the installation.
02 / DESIGN & MATERIAL
A configurable grille, made for the project.
The metal grille is more than decoration. It protects the diffuser, gives the luminaire a distinctive architectural identity and allows the product to coordinate with the material language of each space.
- Grille patterns
- Choose from standard patterns or develop a project-specific design.
- Finish options
- Silver, gold, bronze and custom RAL colours.
- Factory-built consistency
- Grilles, end caps and mounting components are finished and assembled as one coordinated system.
03 / OPTICAL PERFORMANCE
Soft, uniform illumination from every angle.

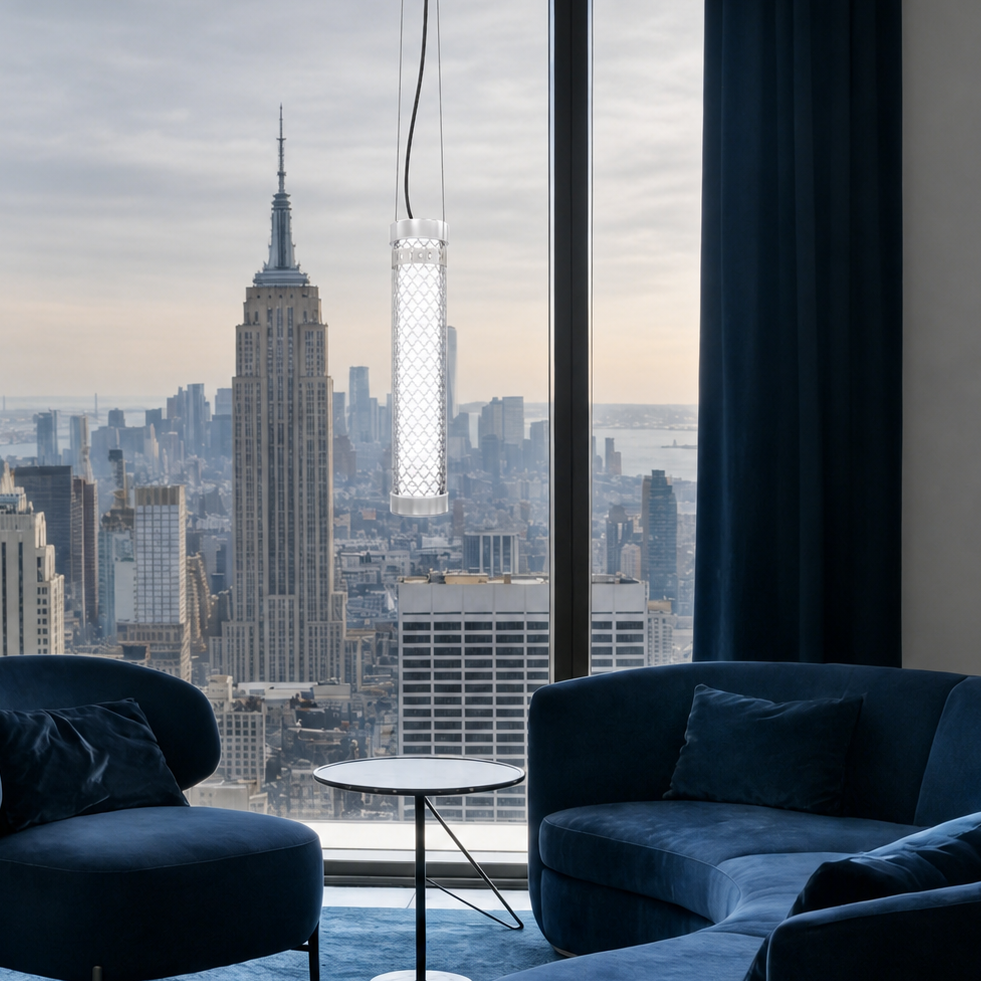

Diffuse tubular optics produce balanced 360° illumination without harsh hotspots. The result is calm, consistent ambient light designed for circulation areas, shared spaces and open interiors.
- High colour rendering
- CRI 90+ standard for faithful rendering of architectural textures and finishes.
- 3 SDCM consistency
- Strict color tolerance control across luminaires and project phases.
- RG0 visual safety
- Photobiological safety (exempt from blue light hazard) for comfortable long-term use.
04 / ENVIRONMENTAL DURABILITY
Built for interiors, exteriors and everything between.
A sealed housing, protective metal grille and durable materials help Vinci 360 perform reliably in demanding architectural environments, from interior circulation areas to sheltered and exterior spaces.
- IP65 protection
- Sealed against dust and water ingress for demanding locations.
- IK10 impact resistance
- A robust housing and metal grille protect the illuminated body.
- UV & corrosion resistance
- Architectural-grade finishes and anti-yellowing PC housing ensure long-term outdoor stability.
05 / FACTORY & PROJECT SUPPORT
From project brief to factory-built solution.
MANI coordinates the product configuration before manufacturing, translating the project brief into a buildable luminaire specification. This gives designers and contractors one clear path from selection to delivery.
- Flexible Project MOQ
- Tailored batch manufacturing, rapid prototyping and custom architectural sampling.
- Engineering documents
- Datasheets, 3D CAD/BIM models, DIALux simulation data and compliance files.
- Factory quality control
- Coordinated assembly, optical calibration and 100% aging test before shipment.
VINCI 360 / TECHNICAL SPECIFICATIONS
Clear technical data.
Configured for the project.
Factory technical data and optical metrics for the Vinci 360 architectural tubular luminaire. Fully configurable dimensions, decorative grilles, finishes, control protocols, and mounting details to suit complex indoor and outdoor architectural scopes.
01 / SIZING & PERFORMANCE Standard Configurations & Photometrics
| Nominal Length | Profile Diameter | System Power | Typical Lumen Output | Optics & Emission |
|---|---|---|---|---|
| 300 mm | Ø70 / Ø100 mm | 10 W – 15 W | 1,300 – 1,950 lm | 360° Omnidirectional Diffuse |
| 600 mm | Ø70 / Ø100 mm | 18 W – 25 W | 2,340 – 3,250 lm | 360° Omnidirectional Diffuse |
| 900 mm | Ø70 / Ø100 mm | 28 W – 35 W | 3,640 – 4,550 lm | 360° Omnidirectional Diffuse |
| 1200 mm | Ø70 / Ø100 mm | 36 W – 48 W | 4,680 – 6,240 lm | 360° Omnidirectional Diffuse |
| 1500 mm | Ø70 / Ø100 mm | 45 W – 60 W | 5,850 – 7,800 lm | 360° Omnidirectional Diffuse |
| 1800 mm | Ø70 / Ø100 mm | 55 W – 70 W | 7,150 – 9,100 lm | 360° Omnidirectional Diffuse |
Light Source & Optics
- Serviceable architectural LED module
- CRI ≥90 standard for superior colour fidelity
- MacAdam 3 SDCM colour consistency across batches
- L80 / B10 > 50,000 h at 25°C
- Photobiological safety: RG0 (IEC 62471 Exempt)
Electrical & Controls
- Integrated constant-current electronic driver
- Power Factor >0.95 · THD <10%
- Flicker-free performance (IEEE 1789 compliant)
- Class I electrical insulation standard
- Surge protection: 2 kV L-N / 4 kV L/N-PE
02 / SITE COORDINATION Installation, Wiring & Maintenance
Electrical Connection
- Nickel-plated brass / Stainless steel PG cable gland
- Suitable for external cable diameters Ø5–14 mm
- Tool-free push-in terminal block (up to 3 × 2.5 mm² / 5 × 2.5 mm² for DALI)
- Through-wiring harness configuration available upon request
Mounting Hardware
- 2-point precision stainless steel brackets with adjustable spacing
- Flexible multi-axis mounting: Horizontal, vertical, or angled
- Surface wall/ceiling mounting or adjustable wire pendant kits
- Vibration-resistant secure lock mechanism
03 / MATERIALS & CRAFTSMANSHIP Architectural Customization & Finishes
Diffuser Housing
- Extruded UV-resistant polycarbonate (PC)
- Uniform 360° luminance with invisible internal joints
- Optional high-clarity PMMA for specific environment
Metal Grille & Structure
- Precision laser-cut architectural steel / brass grille
- CNC machined 6063-T5 aluminium alloy end caps
- Seamless silicone compression sealing gaskets
Bespoke Custom Finishes
- Anodised Silver, Brushed Brass/Gold, Bronze, Matte Black
- Custom architectural RAL powder coating matched to interior palette
- Project-specific custom perforated grille patterns supported
04 / COMPLIANCE & STANDARDS Protection Ratings & Certifications
Ingress Protection
- IP65 standard
- Sealed against dust, jetting water, and outdoor condensation
Impact Resistance
- IK10 rated (20 Joules) with PC body and protective metal lattice
Fire Performance
- 960°C Glow-Wire Flammability Test compliant (IEC 60695-2-11)
Certificates
- CE, RoHS, REACH, IEC 60598-1, IEC 62471 (RG0)
Designed Across
Architectural Environments
From hospitality interiors and circulation areas to façades and covered exterior spaces, Vinci 360 can be configured around the scale, material language, mounting method and lighting requirements of each project.
