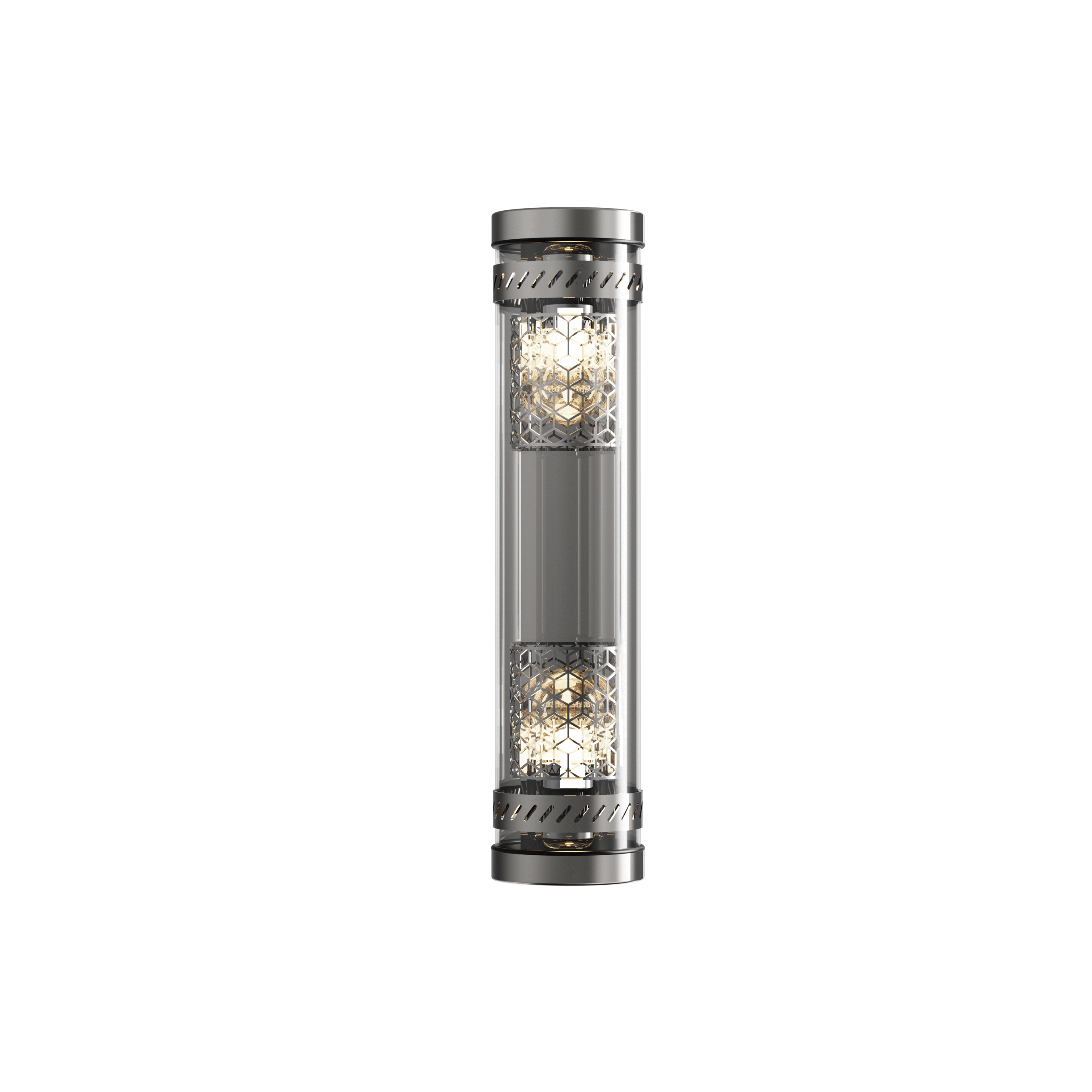

MOREAU SERIES · CONFIGURABLE E27 ARCHITECTURAL TUBULAR LIGHT
Decorative E27 Tubular Lighting.
Configured for the Project.
Moreau combines a serviceable E27 lamp system with a configurable internal metal grille. MANI engineers the housing length, grille coverage, finish and mounting around project requirements, then validates the configuration for sampling and batch production.
Engineering review, drawings, sample and quotation support for project enquiries.
PRODUCT & MANUFACTURING CAPABILITIES
One product platform,
configured and built to project requirements.
From lamp quantity and housing length to grille coverage, finish, mounting and sealing, every Moreau configuration is reviewed by MANI’s engineering team before production. Samples, technical drawings and factory inspections help maintain consistency from project approval through batch delivery.
Controlled Architectural Light
The internal grille screens direct views of the E27 lamp and helps soften the visible output, creating a more comfortable decorative light for hospitality, circulation and residential applications.
Configurable Grille & Finish
Specify full or half grille coverage, selected decorative patterns and project finishes. Custom RAL colours can be matched to the interior palette and approved through physical samples before production.
Replaceable E27 Lamp System
The standardized E27 holder supports flexible lamp selection for wattage, colour temperature and appearance. Replaceable lamps simplify future maintenance without changing the complete luminaire.
Scaled Dimensions & Output
Available in Ø70 mm and Ø100 mm profiles. Housing length and lamp quantity are calculated together to maintain balanced architectural proportions and required illumination across intimate or large spaces.
Flexible Mounting Engineering
Configure Moreau for vertical or horizontal installation on walls or ceilings, or as a suspended luminaire. Brackets, cable entry and suspension components are coordinated with the selected installation method.
Protected Construction
A UV-resistant polycarbonate housing, metal grille, aluminium end caps and sealed cable entry provide IP65 and IK10 protection for indoor, moisture-prone and sheltered outdoor environments.
Project-Based Configuration
Standard configurations and custom-developed variants for project, brand and volume requirements.
Prototype & Finish Approval
Physical samples for checking grille coverage, colour, finish, proportions and assembly before batch production.
Production Documentation
Dimensional drawings, 3D CAD files, wiring details, installation guides and compliance reports.
Factory Inspection & Traceability
Incoming-material inspection, assembly checks, electrical testing, sealing verification and final pre-shipment sign-off.
01 / INSTALLATION & SCALE
Flexible mounting, configured to the project.
Moreau can be installed vertically as a decorative wall sconce, horizontally on ceilings, or wire-suspended as a linear pendant. Two profile diameters and bespoke lengths allow seamless visual coordination across diverse interior and semi-outdoor zones.
- Mounting flexibility
- Solid wall-sconce, ceiling surface, or suspended pendant kits.
- Project-specific dimensions
- Ø70 mm and Ø100 mm diameters with project-custom lengths.
- Factory-matched hardware
- Brackets, end caps, cable entry and suspension components coordinated as one installation system.

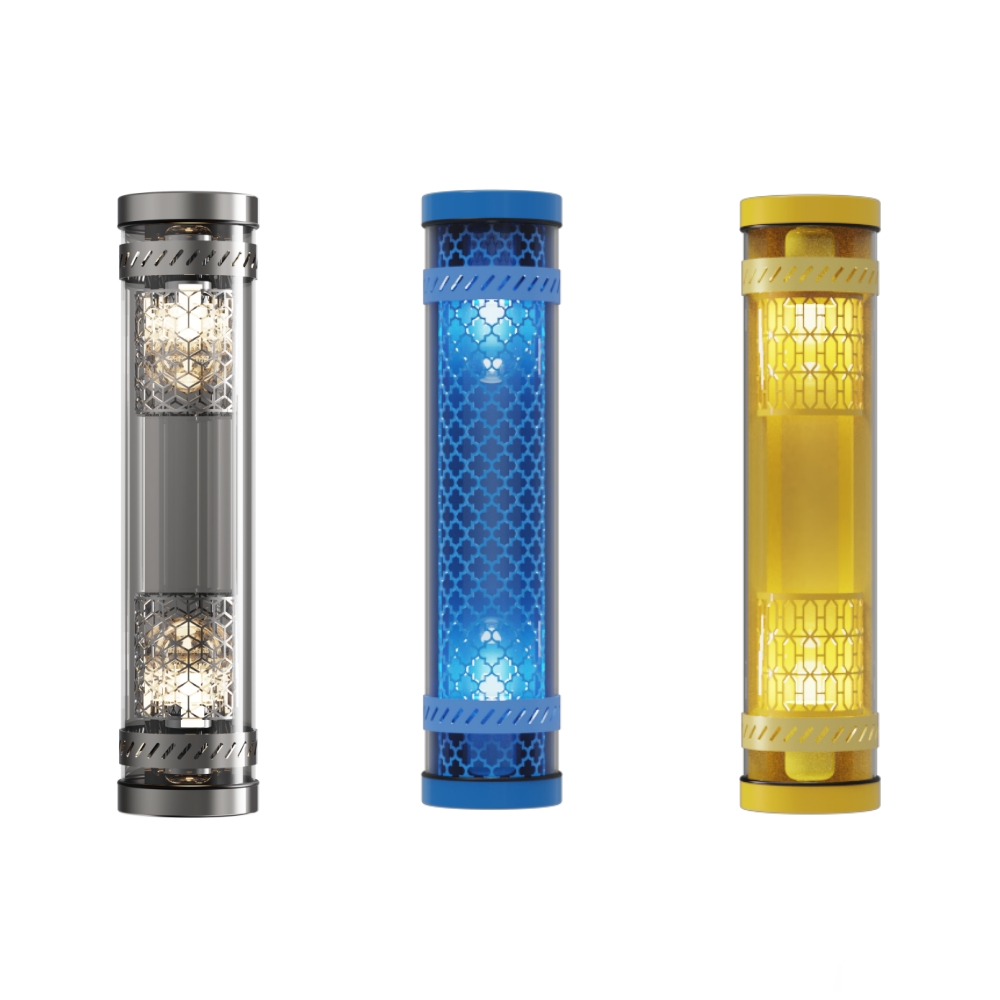

02 / DESIGN & CRAFTSMANSHIP
Precision metal mesh, finished in bespoke RAL shades.
The internal metal mesh is fabricated via CNC laser cutting and stamping. Available in full-length tubular coverage or localized socket-shielding options, every component is finished with high-adhesion architectural powder coating to align with interior finishes.
- Grille configuration
- Full-wrap or half-cover decorative grille options.
- Finish selection
- Standard metallic finishes and custom RAL powder-coated colours.
- Batch consistency
- Grilles, end caps and mounting components finished and inspected as a coordinated set.

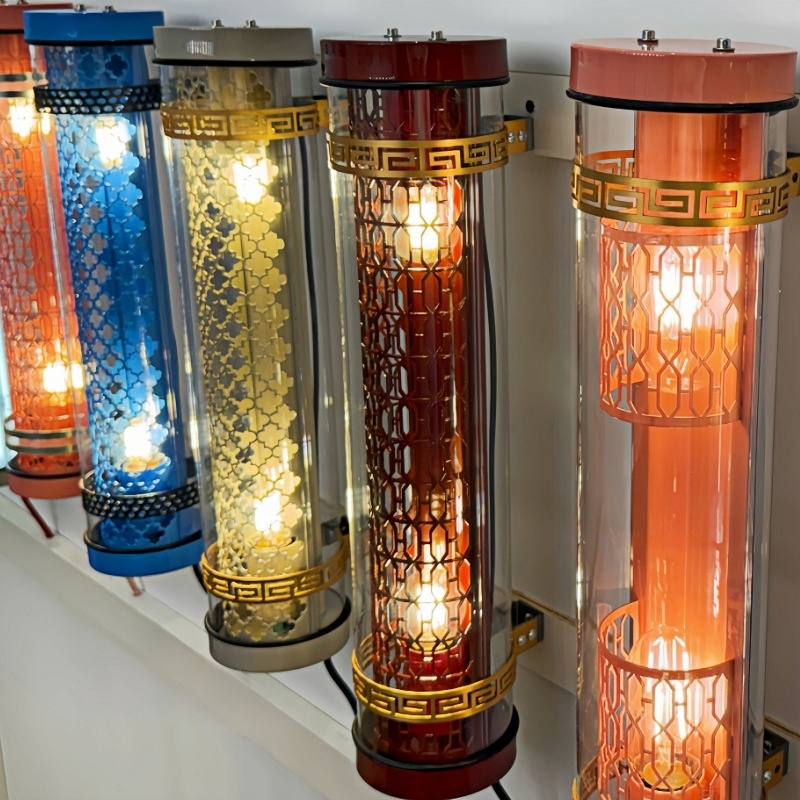

03 / LIGHT & VISUAL COMFORT
A layered decorative glow with reduced direct glare.
The transparent tubular housing and internal decorative grille create visual depth while helping soften direct views of the E27 lamps. The result is an atmospheric architectural light that remains visually distinctive both illuminated and switched off.
- Visual shielding
- The internal grille helps reduce direct views of the lamp and visible point-source glare.
- Lamp-dependent output
- Brightness, colour temperature and lighting character are determined by the selected E27 lamp.
- Architectural atmosphere
- Designed for hospitality, dining, residential and circulation spaces.
04 / SERVICEABILITY & E27 SYSTEM
Replaceable E27 lamps for simpler project maintenance.
Moreau uses standard E27 lamp holders, with lamp quantity coordinated to the luminaire length. Project teams can select compatible LED lamps according to output, colour temperature and appearance, while facility teams can replace lamps without changing the complete luminaire.
- Replaceable light source
- Compatible E27 LED lamps selected according to project requirements.
- Length-based configuration
- Lamp quantity coordinated with housing length and required light output.
- Simplified maintenance
- Routine relamping without replacing the complete fixture body.
05 / PROTECTION & FACTORY VERIFICATION
IP65 and IK10 construction, verified before delivery.
A UV-resistant polycarbonate housing, aluminium end caps, sealed cable entry and coordinated metal components protect the lamp chamber for indoor and sheltered exterior applications. Assembly, electrical operation, finish quality and sealing are checked before shipment.
- IP65 water & dust seal
- IP65 protection against dust and water ingress.
- IK10 impact rating
- IK10 polycarbonate housing for demanding public and commercial environments.
- Factory inspection
- Assembly, electrical function, finish consistency and sealing checked before delivery.
MOREAU SERIES / TECHNICAL SPECIFICATIONS
Clear engineering data.
Project-ready configuration.
Moreau is a configurable architectural tubular luminaire built around replaceable E27 lamps. Housing dimensions, lamp quantity, decorative grille coverage, finishes, mounting components and cable entry are coordinated to the approved project specification before production.
01 / SIZING & CONFIGURATION Standard Configurations & Lamp Matrix
| Nominal Length | Profile Diameter | E27 Socket Qty | Recommended Lamp Type | Grille Coverage Options |
|---|---|---|---|---|
| 300 – 450 mm | Ø70 / Ø100 mm | 1 × E27 | LED Tubular / A60 / Filament | Full-Length / Socket-Shield |
| 600 – 800 mm | Ø70 / Ø100 mm | 2 × E27 | LED Tubular / A60 / Filament | Full-Length / Socket-Shield |
| 1000 – 1200 mm | Ø70 / Ø100 mm | 2–3 × E27 | LED Tubular / T30 / Filament | Full-Length / Socket-Shield |
| 1500 – 1800 mm | Ø70 / Ø100 mm | 3–4 × E27 | LED Tubular / T30 / Filament | Full-Length / Socket-Shield |
Light Source & Optics
- Aluminum E27 lamp holders (LED retrofit lamps excluded)
- Compatible with standard E27 LED, filament, and smart bulbs
- Single-sided / semi-directional light distribution with internal metal elements
- Visual comfort engineered for hospitality, retail, and accent illumination
- CCT determined by lamp selection (typical 2700K / 3000K / 4000K / 5000K)
Electrical & Controls
- Direct mains AC 220–240 V, 50/60 Hz connection
- Driver integrated inside the selected E27 LED lamp
- Power consumption dependent on specified E27 lamps
- High-temperature aluminum lampholders with pre-wired heat-resistant cabling
- Class I electrical insulation standard
02 / SITE COORDINATION Installation, Wiring & Maintenance
Electrical Connection
- Sealed cable entry with stainless steel gland (Ø5–14 mm cables)
- Disconnectable push-in terminal block for fast site wiring
- Supports up to 3 × 2.5 mm² solid or stranded conductors
Mounting & Relamping
- 2 mounting brackets with adjustable spacing along the tube
- Universal wall-sconce, ceiling surface, or wire-suspended mounting
- Removable screw-lock end cap for easy E27 lamp replacement
03 / MATERIALS & CRAFTSMANSHIP Materials, Grilles & Finishes
Housing Envelope
- High-transparency clear polycarbonate (PC) tubular housing
- UV-resistant and anti-aging for long-term optical clarity
- Provides high-level mechanical barrier and subtle light refraction
Internal Mesh & Caps
- Laser-cut decorative iron mesh internal elements
- CNC machined 6063-T5 aluminium alloy end caps and brackets
- Stainless steel fixing hardware and compression silicone gaskets
Custom Finishes
- Full-length continuous wrap or dual socket-shielded grilles
- Bespoke architectural RAL powder coating (Blue, Yellow, Red, Pink, Grey, etc.)
- Special metallic finishes: Anodised Silver, Brushed Gold, Bronze, Matte Black
04 / COMPLIANCE & STANDARDS Protection Ratings & Standards
Ingress Protection
- IP65 standard
- IP69K optional sealing configuration
Impact Resistance
- IK10 rated heavy-duty impact resistance
- Vandal-resistant solid PC construction
Fire Performance
- 960°C Glow-Wire Flammability Test compliant (IEC 60695-2-11)
Applications
- Architectural indoor, high-humidity, and covered semi-outdoor environments
Architectural Character
Across Space & Scale
From boutique hospitality and dining spaces to circulation corridors and sheltered outdoor terraces, Moreau is engineered to coordinate with interior palettes, offering flexible full or socket-shielded grilles, custom RAL finishes, and low-maintenance E27 architecture.
