PERFO 360 SERIES · ARCHITECTURAL TUBULAR LIGHT
Perforated Stainless Steel.
Controlled 360° Illumination.
Perfo 360 incorporates precision perforated stainless steel inserts to deliver low- glare, highly controlled illumination. Engineered for versatile architectural integration with single-sided, double-sided, or full 360° light distribution, and flexible ceiling, wall, or pendant suspension mounting.
Engineering layout support, custom mounting hardware, CNC machined end caps, DALI-2/0-10V controls, and photometric data.
PRODUCT & MANUFACTURING CAPABILITIES
Perforated metal texture.
Light shaped for every direction.
Perfo 360 combines a perforated stainless-steel insert with configurable single-sided, double-sided or full 360° emission. The internal metal layer softens direct views of the LED source while creating a distinctive illuminated texture for architectural spaces.
Perforated Steel Insert
A precision-formed stainless-steel insert filters the light and gives the luminaire its distinctive architectural texture.
Three Emission Options
Configure single-sided, double-sided or full 360° output to support different lighting functions within one product family.
Comfortable Illumination
The perforated structure limits direct views of the LED source, helping reduce glare while maintaining effective illumination.
Configurable Scale
Available in Ø70 mm and Ø100 mm profiles with configurable lengths from 300 to 3000 mm.
Flexible Installation
Suitable for wall-mounted, ceiling-mounted or suspended applications, used individually or in repeated arrangements.
Architectural Durability
A UV-resistant PC housing combines IP65 ingress protection with IK10 impact resistance for indoor and outdoor use.
Project Configuration
Dimensions, emission format, finish, mounting method and control options coordinated to project requirements.
Light Effect Verification
Pre-production samples allow the emission pattern, visual texture, finish and mounting details to be reviewed before batch production.
Engineering Support
Project-specific drawings, technical data and photometric documentation prepared for design coordination and approval.
Testing & Consistency
Light distribution, electrical operation, finish quality, sealing and impact resistance inspected against the approved configuration.
01 / MATERIAL & LIGHT TEXTURE
Perforated steel turns light into texture.
Perfo 360 places a perforated stainless-steel insert inside a transparent tubular housing. The rhythmic metal pattern softens direct views of the LED source while giving the luminaire a distinctive architectural presence, illuminated or unlit.
- Perforated insert
- Stainless-steel construction creates a precise, rhythmic lighting texture.
- Visual comfort
- The perforated surface screens the LED source and softens direct glare.
- Architectural presence
- A distinctive metallic expression, both illuminated and switched off.

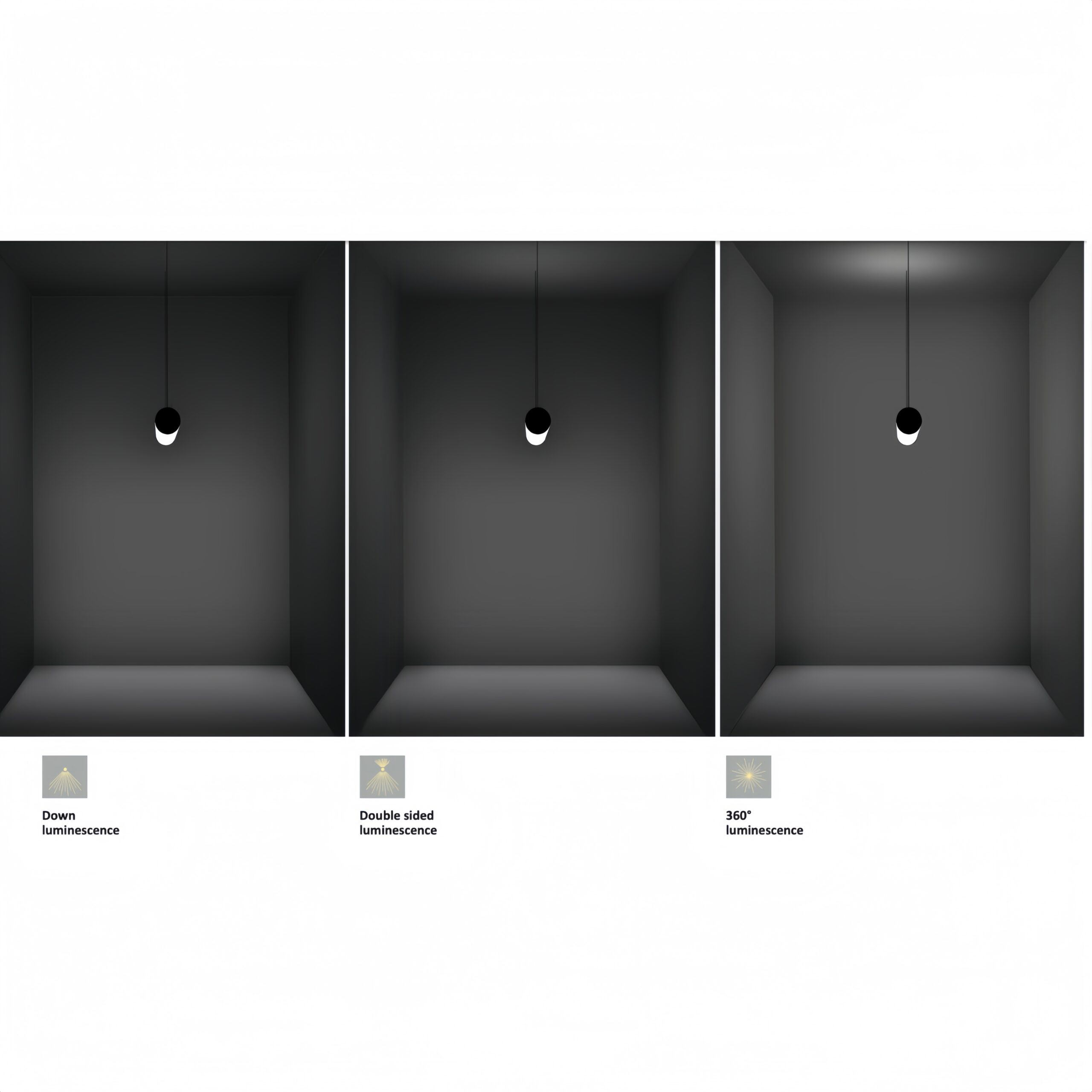

02 / LIGHT DISTRIBUTION
One family. Three ways to light.
Perfo 360 is available with single-sided, double-sided or full 360° emission, allowing different lighting functions to share one consistent architectural form.
- Single-sided
- Controlled illumination directed toward a defined surface or zone.
- Double-sided
- Balanced output in two directions for wider spatial illumination.
- Full 360°
- Smooth, all-around ambient light from the complete tubular profile.
03 / PROTECTION & MATERIALS
Built for demanding environments.
A sealed IP65 construction, IK10-rated PC housing and durable stainless-steel components give Perfo 360 the resilience required for long-term indoor and outdoor architectural use.
- Ingress protection
- IP65-rated protection against dust and water ingress.
- Impact resistance
- IK10-rated PC housing for exposed and high-traffic environments.
- Material integrity
- UV-resistant housing and durable stainless-steel components.
04 / INSTALLATION & COMPOSITION
One form, multiple arrangements.
Perfo 360 can be wall-mounted, ceiling-mounted or suspended, then used individually or repeated to create a cohesive architectural lighting composition.
- Mounting options
- Wall-mounted, ceiling-mounted or suspended.
- Layout flexibility
- Suitable for standalone, linear or repeated arrangements.
- Design continuity
- A consistent lighting language across different areas of a project.
PERFO 360 SERIES / TECHNICAL SPECIFICATIONS
Clear engineering data.
Project-ready configuration.
Perfo 360 is an architectural tubular luminaire featuring an integrated perforated stainless steel insert for controlled, glare-free illumination. Configurable in Ø70 and Ø100 mm profiles, custom continuous lengths (300–3000 mm), single/double-sided or 360° light distributions, and versatile ceiling, wall, or suspension mounting.
01 / OPTICS & ELECTRICAL Technical Characteristics & Optical Systems
| Configuration Parameter | Available Options | Project Note |
|---|---|---|
| Profile Diameter | Ø70 mm / Ø100 mm | Selected according to architectural spatial scale and output |
| Fixture Length | 300–3000 mm (custom continuous lengths) | Factory-cut lengths coordinated with internal LED modules |
| Power Range | 10–70 W (scalable) | Power range determined by fixture length and target output |
| Optical System | Integrated perforated stainless steel insert | Reduced direct view of LED source & controlled light distribution |
| Light Distribution | Single-sided / Double-sided / 360° emission | Single-sided emission standard; double-sided and full 360° on request |
| Controls | ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8) | Sensor version / Emergency version available |
Light Source & CCT
- LED source: High-efficiency SMD2835 LEDs
- CRI: ≥80 (CRI 90 optional)
- Color consistency: MacAdam ≤3 SDCM
- CCT: 2700K / 3000K / 4000K / 5000K / 6000K
- Option: Tunable White (on request)
- Lifetime: 50,000 h (L80/B10 @ 25°C)
Optical System & Glare Control
- Optical system: Integrated perforated stainless steel insert
- Light distribution: Single-sided emission (standard)
- Option: Double-sided emission / 360° emission
- Glare control: Reduced direct view of LED source
- Distinctive illuminated metallic texture
Electrical & Controls
- Input voltage: 220–240 V AC (100–277 V AC optional), 50/60 Hz
- Power factor: >0.95
- Power range: 10–70 W (depending on length and output)
- Control options: ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request)
- Options: Sensor version / Emergency version
- Electrical class: Class I
02 / SITE COORDINATION Installation, Maintenance & Wiring
Connection & Operating
- Sealed cable entry with stainless steel cable gland
- Cable range: Ø5–14 mm
- Disconnectable terminal block
- Up to 3 × 2.5 mm² conductors
- Operating temperature: −25°C to +45°C
Mounting & Coordination
- 2 Mounting brackets with adjustable spacing
- Wall, ceiling or suspended installation
- Suspension kits available
- Vertical or horizontal mounting orientation
- Supports standalone, linear or repeated arrangements
03 / MATERIALS & CRAFTSMANSHIP Housing Envelope, Structure & End Caps
Housing Envelope
- Co-extruded polycarbonate (PC) or PMMA tube
- UV-stable, impact-resistant
- For indoor and outdoor use
- Tube diameter: Ø70 mm / Ø100 mm
- Custom lengths available (300–3000 mm)
Structure & Mechanics
- High-transparency PC housing
- Perforated stainless steel insert
- Stainless steel end caps
- Stainless steel fixing components
- Long-term ingress sealing gaskets
Customization & Finishes
- Custom lengths available on request
- Multiple mounting bracket options (project-specific)
- Surface finishes: matte textured / smooth gloss
- Control options configurable per project (ON/OFF, TRIAC, 0–10 V, DALI; sensor / emergency on request)
- Single-sided / double-sided / 360° emission options
04 / COMPLIANCE & STANDARDS Standards, Protection & Factory Warranty
Ingress Protection
- IP65 standard
- IP69K optional
Impact Resistance
- IK10 (PC)
- IK08 (PMMA)
Fire Performance
- Glow-wire test: 960°C
- CE and RoHS compliant manufacturing
Warranty & Applications
- 5-Year whole fixture warranty
- Applications: Architectural indoor and outdoor environments
Architectural Presence
Across Space & Scale
From hospitality corridors and exterior facades to contemporary atriums and public spaces, Perfo 360 combines precision perforated stainless steel inserts with configurable single, double, or 360° illumination, flexible ceiling/wall/suspended mounting, and certified IP65/IK10 durability.
