LINEA TASK SERIES · ARCHITECTURAL TUBULAR FLOOR LAMP
Horizontal Light.
Precisely Tuned for Work.
Available in custom featured finishes, Linea Task pairs a slim freestanding frame with a horizontal tubular luminaire to deliver focused, low-glare illumination across desks and work surfaces. Configurable optics, integrated dimming and single- or double-sided output allow both the light and the appearance to be tailored to each project—without fixed installation.
Custom frame finishes, grille, honeycomb or louver optics, DALI/0–10V controls, sensor and emergency options, and photometric data.
PRODUCT & MANUFACTURING CAPABILITIES
Focused horizontal light.
Precise control for everyday work.
Linea Task combines a horizontal tubular luminaire with a slim freestanding frame, bringing comfortable, task-oriented illumination directly to desks and work surfaces without fixed installation. Interchangeable optical configurations, selectable light emission and integrated dimming allow each luminaire to be tailored to different tasks and working environments.
Horizontal Task Lighting
The horizontal tubular head provides focused linear illumination across desks, counters and shared work surfaces.

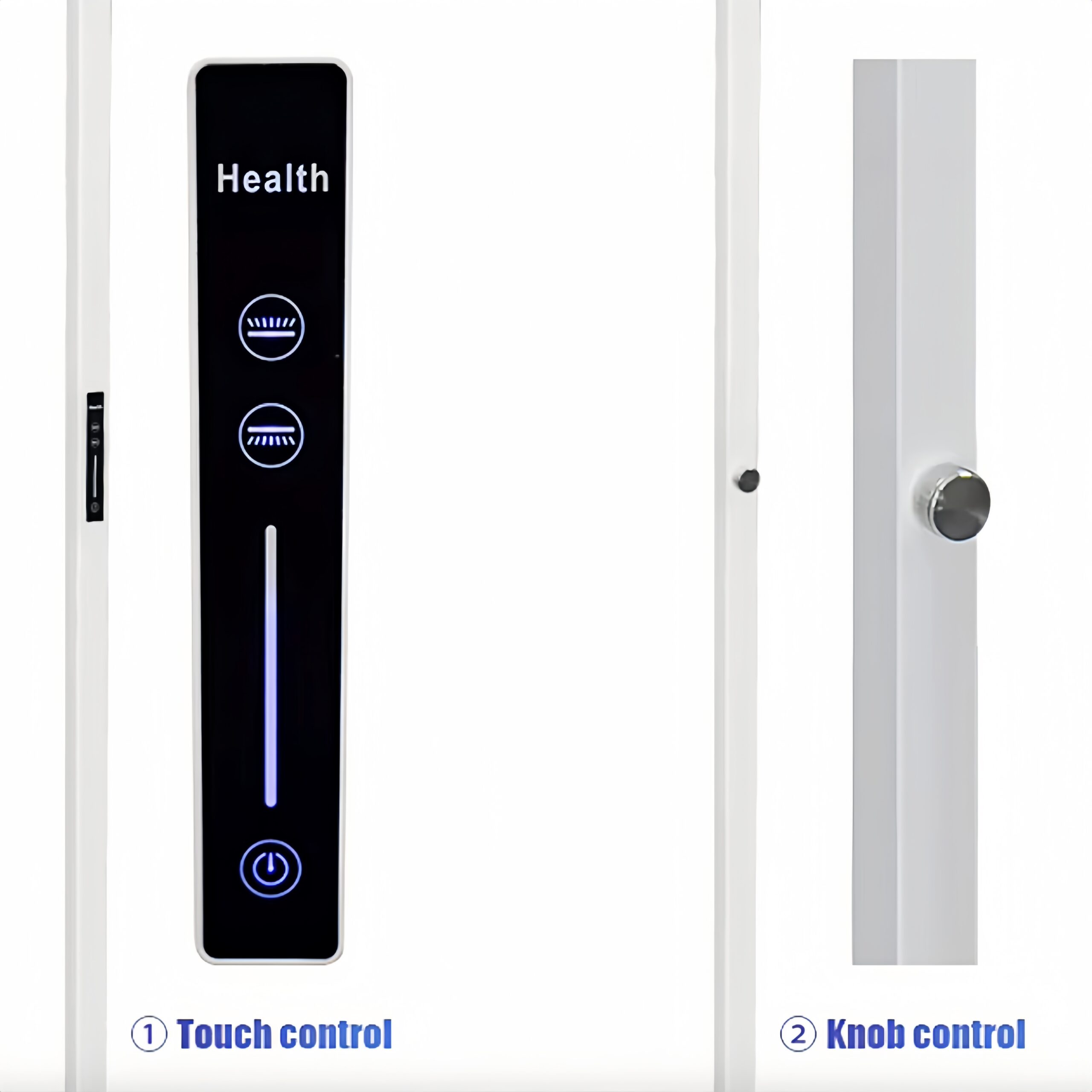

Touch or Rotary Dimming
Integrated touch or rotary control allows users to adjust brightness directly at the luminaire for changing tasks and comfort preferences.
Micro-Reflector Optics
Individual reflector cups shield the LED source, control glare and produce clearly defined directional light. The micro-reflector configuration offers 20°, 32.8° and 48° beam options for precise task illumination.
Single or Double Emission
Choose single-sided output for focused task illumination or optional double-sided emission for a more balanced combination of task and ambient light.
Freestanding Placement
The floor-mounted structure requires no fixed installation, allowing the luminaire to be repositioned as layouts and working needs change.
Daily-Use Durability
A sealed IP65 luminaire with an IK10-rated PC housing supports reliable everyday performance in demanding indoor and outdoor environments.
Project Configuration
Tubular optics, reflector beam angle, emission format, frame dimensions, controls and finish options—including six featured finishes and custom RAL colors—coordinated to project requirements.
Task Light Verification
Pre-production samples allow beam angle, brightness control, glare performance, light distribution, finish and working-height relationships to be reviewed before production.
Lighting & Integration Data
Configuration drawings, electrical data, control information and photometric documentation prepared for design coordination and approval.
Performance & Control Testing
Dimming response, light output, optical alignment, electrical operation, sealing and finished appearance inspected before delivery.
01 / PRECISION TASK OPTICS
Put focused light exactly where work happens.
Linea Task combines a horizontal tubular head with configurable optical systems to deliver controlled illumination across desks, counters and shared work surfaces. Micro-reflector optics offer three beam angles, allowing the light effect to be matched to different tasks and working distances.
- Horizontal coverage
- The linear light head extends useful illumination across a wider work surface.
- Three beam options
- Choose 20°, 32.8° or 48° micro-reflector optics for focused, medium or broader task illumination.
- Visual comfort
- Recessed micro-reflectors, grille, honeycomb or louver options reduce direct view of the LED source.
02 / PERSONAL LIGHT CONTROL
Set the light for the task at hand.
Integrated controls give users direct command of brightness at the luminaire, making it easy to move between focused work, general desk use and more relaxed ambient conditions.
- Touch or rotary dimming
- Choose an intuitive touch interface or tactile rotary knob for direct brightness adjustment.
- Flexible color temperature
- Select from 2700K to 6000K to support different activities and visual preferences.
- Tunable White option
- Optional Tunable White enables both brightness and color temperature to be adjusted throughout the day.
03 / FREESTANDING FLEXIBILITY
Bring better light to changing workspaces.
The slim freestanding structure requires no fixed installation, allowing Linea Task to be positioned beside individual desks, shared tables and counters as layouts and working needs evolve.
- No fixed installation
- The floor-mounted frame can be positioned without modifying walls, ceilings or furniture.
- Single or double emission
- Choose focused single-sided task light or optional double-sided output for added ambient illumination.
- Reliable daily use
- A sealed IP65 luminaire with an IK10-rated PC housing supports dependable performance in demanding environments.
LINEA TASK SERIES / TECHNICAL SPECIFICATIONS
Clear engineering data.
Project-ready configuration.
Linea Task is an architectural freestanding horizontal floor luminaire system pairing a slim linear iron frame with an interchangeable tubular light head. Engineered in Ø70 mm profiles, standard 1200 mm length (custom available), precision micro-reflector optics (20°, 32.8°, 48°), single- or double-sided emission, and versatile dimming controls.
01 / OPTICS & ELECTRICAL Technical Characteristics & Optical Systems
| Configuration Parameter | Available Options | Project Note |
|---|---|---|
| Profile Diameter | Ø70 mm | Optimized linear profile for direct workspace illumination |
| Fixture Length | 1200 mm standard (custom lengths available) | Wide task coverage and custom continuous spans on request |
| Power Range | 40 W | Balanced output for high-efficiency desk and task lighting |
| Optical System | Micro-reflector optics (20° / 32.8° / 48° beam angles) | Precision task control, reduced direct glare & tailored beam distribution |
| Light Distribution | Single-sided / Double-sided emission | Single-sided standard; symmetrical double-sided on request |
| Controls | ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8) | Sensor version / Emergency version available on request |
Light Source & CCT
- LED source: High-efficiency SMD2835 / SMD3030 LEDs
- CRI: ≥80 (CRI 90 optional)
- Color consistency: MacAdam ≤3 SDCM
- CCT: 2700K / 3000K / 4000K / 5000K / 6000K
- Option: Tunable White (on request)
- Lifetime: 50,000 h (L80/B10 @ 25°C)
Optical System & Glare Control
- Optical system: Micro-reflector optics
- Beam options: 20° (spot) / 32.8° (medium) / 48° (wide)
- Light distribution: Single-sided emission (standard)
- Option: Double-sided emission (on request)
- Glare control: Recessed reflector cups reduce direct LED view
- High visual comfort tuned specifically for work surfaces
Electrical & Controls
- Input voltage: 220–240 V AC (100–277 V AC optional), 50/60 Hz
- Power factor: >0.95
- Power range: 40 W
- Control options: ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request)
- Options: Touch / Rotary dimming · Sensor · Emergency
- Electrical class: Class I
02 / SITE COORDINATION Installation, Maintenance & Wiring
Connection & Operating
- Sealed cable entry with stainless steel cable gland
- Cable range: Ø5–14 mm
- Disconnectable terminal block
- Up to 3 × 2.5 mm² conductors
- Operating temperature: −25°C to +45°C
Mounting & Coordination
- Installation type: Freestanding floor-mounted luminaire with linear iron frame
- Slim freestanding base designed to slide neatly beside or beneath desks
- No permanent wall, ceiling, or furniture attachment required
- Integrated touch or rotary interface for easy user adjustment
- Easily repositioned to suit evolving task zones and layouts
03 / MATERIALS & CRAFTSMANSHIP Housing Envelope, Structure & End Caps
Housing Envelope
- Co-extruded polycarbonate (PC) or PMMA tube
- UV-stable, impact-resistant
- For indoor and outdoor use
- Tube diameter: Ø70 mm
- Lengths available: 1200 mm (custom lengths available)
Structure & Mechanics
- Iron floor stand structure
- PC luminaire housing with recessed optical modules
- Precision aluminum end caps
- Stainless steel fixing components
- Long-term ingress sealing gaskets
Customization & Finishes
- Custom lengths available on request
- Surface finishes: matte textured / smooth gloss
- Multiple frame RAL color finishes configurable per project
- Control options configurable (ON/OFF, TRIAC, 0–10 V, DALI; sensor / emergency on request)
- Single-sided / double-sided emission options
04 / COMPLIANCE & STANDARDS Standards, Protection & Factory Warranty
Ingress Protection
- IP65 standard
- IP69K optional
Impact Resistance
- IK10 (PC)
- IK08 (PMMA)
Fire Performance
- Glow-wire test: 960°C
- CE and RoHS compliant manufacturing
Warranty & Applications
- 5-Year whole fixture warranty
- Applications: Indoor and outdoor environments
Architectural Presence
Across Space & Scale
From executive desks and collaborative workstations to hospitality counters and reading lounges, Linea Task combines a slim freestanding iron frame with interchangeable horizontal task optics, integrated dimming controls, and certified IP65/IK10 durability.
