FLOW STAND SERIES · ARCHITECTURAL TUBULAR FLOOR LAMP
Sculptural Curve.
Light Tuned on Site.
Flow Stand pairs a fluid, freestanding frame with rotary-adjustable aluminum louver optics. Light direction can be refined after placement, while interchangeable tubular configurations, selectable emission and project-specific controls adapt the luminaire to different architectural settings.
Custom stand finishes, optical configurations, louver orientation, dimming controls, technical drawings, and photometric data.
PRODUCT & MANUFACTURING CAPABILITIES
Curved architectural form.
Directional light, refined on site.
Flow Stand combines a sculptural curved floor stand with rotary-adjustable louver optics, allowing the direction of light to be refined after placement. Interchangeable tubular configurations, selectable emission and project-specific controls bring precise illumination to a distinctive freestanding form.
Curved Freestanding Form
The curved iron stand creates a fluid architectural silhouette while providing stable placement without permanent installation.

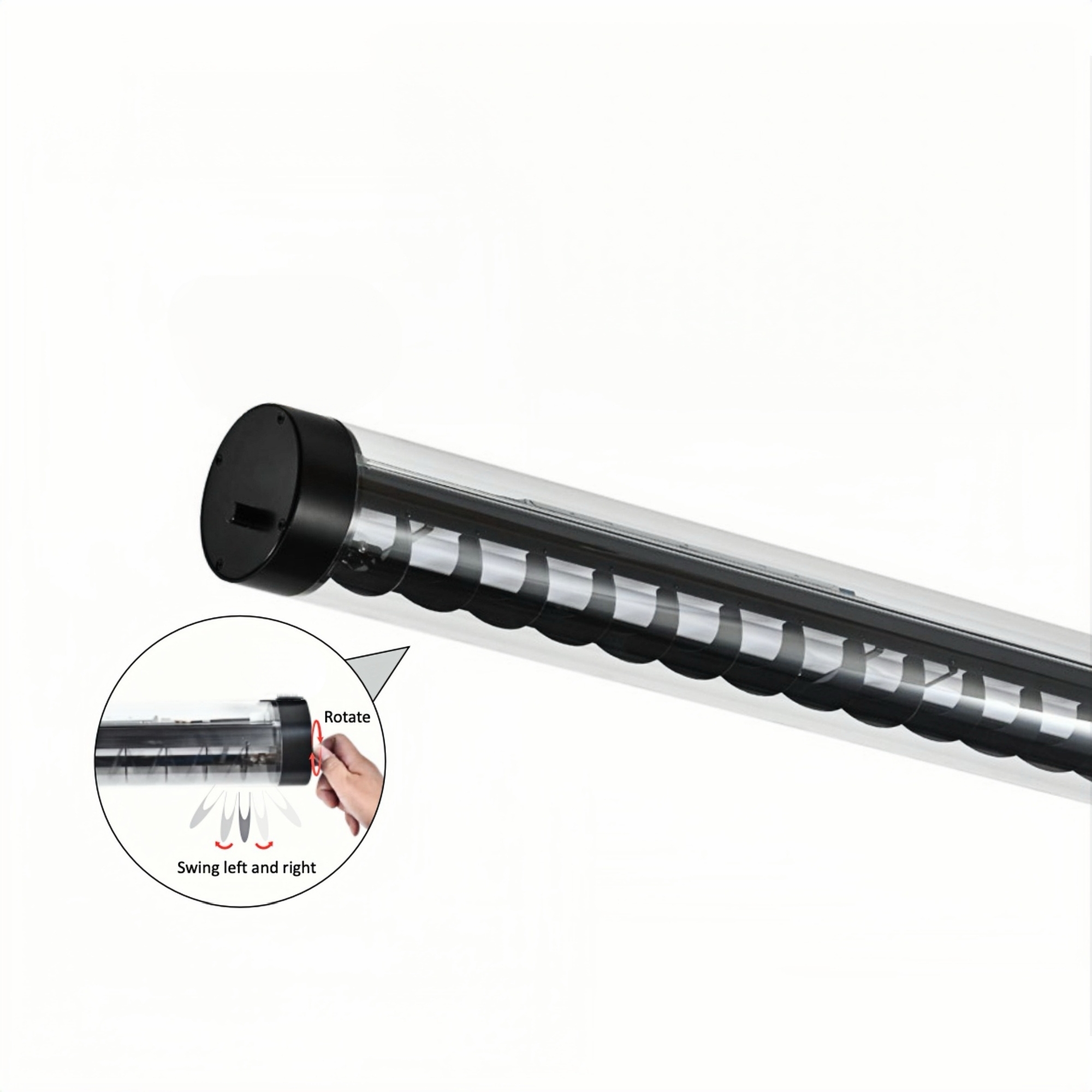

Rotary Louver Control
Manually adjustable aluminum louvers allow the light direction to be refined on site while helping shield direct views of the LED source.
Interchangeable Tubular System
Compatible tubular configurations allow different optical structures and visual expressions to be integrated into the same floor-lamp platform.
Single or Double Emission
Choose single-sided output for directed illumination or optional double-sided emission for more balanced spatial lighting.
Configurable Light & Control
Available with 2700K–6000K color temperatures, optional Tunable White and project-specific dimming or control protocols.
Architectural Durability
A sealed IP65 luminaire with an IK10-rated PC housing supports reliable use across indoor and outdoor architectural environments.
Project Configuration
Tubular optics, louver orientation, emission format, stand finish, color temperature and control options coordinated to project requirements.
Direction & Form Verification
Pre-production samples allow louver adjustment, light direction, glare control, stand proportions and finish quality to be reviewed before production.
Engineering Support
Configuration drawings, electrical data, control information and photometric documentation prepared for design coordination and approval.
Adjustment & Stability Testing
Louver movement, stand stability, optical alignment, electrical operation, sealing and finished appearance inspected before delivery.
01 / ADJUSTABLE LIGHT CONTROL
Aim the light where it matters.
Flow Stand integrates manually adjustable aluminum louvers, allowing the light direction to be refined after the luminaire has been positioned. The optical shielding reduces direct views of the LED source while delivering controlled illumination toward the required surface or zone.
- Adjustable louvers
- Manual rotary control provides precise adjustment of the light direction.
- Visual comfort
- The aluminum louvers shield the LED source and help reduce direct glare.
- On-site flexibility
- Light distribution can be refined after placement to respond to furniture, pathways and architectural surfaces.
02 / CURVED FREESTANDING DESIGN
A fluid form with no fixed installation.
The curved iron stand gives Flow Stand a distinctive sculptural silhouette while supporting flexible floor placement. Its freestanding structure introduces architectural light without requiring modifications to walls or ceilings.
- Curved architectural frame
- The flowing stand geometry creates a recognisable profile from multiple viewpoints.
- Freestanding placement
- No fixed installation is required, allowing the luminaire to move with changing layouts.
- Interchangeable tubular system
- Compatible tubular configurations allow different optical and visual expressions within the same floor-lamp platform.
03 / CONFIGURABLE PERFORMANCE
Built to adapt, indoors and out.
Flow Stand combines configurable light output with a sealed tubular luminaire and robust iron structure, supporting dependable use across residential, hospitality and commercial environments.
- Emission options
- Choose single-sided output for directional illumination or optional double-sided output for broader spatial light.
- Light and control options
- Available with 2700K–6000K color temperatures, optional Tunable White and project-specific dimming controls.
- Protected luminaire
- An IP65-sealed luminaire with an IK10-rated PC housing supports reliable indoor and outdoor use.
FLOW STAND SERIES / TECHNICAL SPECIFICATIONS
Clear engineering data.
Project-ready configuration.
Flow Stand is an architectural freestanding floor luminaire system pairing a sculptural curved iron frame with an interchangeable tubular light head. Engineered in Ø70 mm and Ø100 mm profiles, standard 1200 mm length (custom available), integrated grille / honeycomb / louver optics, single- or double-sided emission, and versatile dimming controls.
01 / OPTICS & ELECTRICAL Technical Characteristics & Optical Systems
| Configuration Parameter | Available Options | Project Note |
|---|---|---|
| Profile Diameter | Ø70 mm / Ø100 mm | Architectural tubular profiles paired with curved floor frame |
| Fixture Length | 1200 mm standard (Custom lengths available) | Project-specific lengths coordinated to architectural scale |
| Power Range | 40 W | Optimized high-efficiency architectural output |
| Optical System | Integrated internal grille / honeycomb / louver | Rotary adjustment & reduced direct view of LED source |
| Light Distribution | Single-sided emission (standard) / Double-sided (on request) | Direct accent/task lighting or balanced spatial emission |
| Controls | ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request) | Sensor version / Emergency version available on request |
Light Source & CCT
- LED source: High-efficiency SMD2835 LEDs
- CRI: ≥80 (CRI 90 optional)
- Color consistency: MacAdam ≤3 SDCM
- CCT: 2700K / 3000K / 4000K / 5000K / 6000K
- Option: Tunable White (on request)
- Lifetime: 50,000 h (L80/B10 @ 25°C)
Optical System & Glare Control
- Optical system: Integrated internal grille / honeycomb / louver
- Light distribution: Single-sided emission (standard)
- Option: Double-sided emission (on request)
- Glare control: Reduced direct view of LED source
- Rotary-adjustable shielding for precise beam aiming
- Visual comfort tuned for indoor and outdoor settings
Electrical & Controls
- Input voltage: 220–240 V AC (100–277 V AC optional), 50/60 Hz
- Power factor: >0.95
- Power range: 40 W
- Control options: ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request)
- Options: Sensor version / Emergency version
- Electrical class: Class I
02 / SITE COORDINATION Installation, Maintenance & Wiring
Connection & Operating
- Sealed cable entry with stainless steel cable gland
- Cable range: Ø5–14 mm
- Disconnectable terminal block
- Up to 3 × 2.5 mm² conductors
- Operating temperature: −25°C to +45°C
Mounting & Installation
- Installation type: Freestanding floor-mounted luminaire with curved iron stand
- Sculptural freestanding base designed for flexible placement
- No permanent wall or ceiling drilling required
- Rotary optical adjustment tuned directly on site
- Easily repositioned as spatial and landscape layouts evolve
03 / MATERIALS & CRAFTSMANSHIP Housing Envelope, Structure & End Caps
Housing Envelope
- Co-extruded polycarbonate (PC) or PMMA tube
- UV-stable, impact-resistant
- For indoor and outdoor use
- Tube diameter: Ø70 / Ø100 mm
- Lengths available: 1200 mm (Custom lengths available)
Structure & Mechanics
- Iron floor stand structure with curved profile
- PC luminaire housing with internal optical assemblies
- Precision aluminum end caps
- Stainless steel fixing components
- Long-term ingress sealing gaskets
Customization & Finishes
- Custom lengths available on request
- Surface finishes: matte textured / smooth gloss
- Custom frame colors configurable per project
- Control options configurable (ON/OFF, TRIAC, 0–10 V, DALI; sensor / emergency)
- Single-sided / double-sided emission options
04 / COMPLIANCE & STANDARDS Standards, Protection & Factory Warranty
Ingress Protection
- IP65 standard
- IP69K optional
Impact Resistance
- IK10 (PC)
- IK08 (PMMA)
Fire Performance
- Glow-wire test: 960°C
- CE and RoHS compliant manufacturing
Warranty & Applications
- 5-Year whole fixture warranty
- Applications: Indoor and outdoor environments
Architectural Presence
Across Space & Scale
From hospitality lounges and open architectural lobbies to retail displays and residential zones, Flow Stand combines a sculptural curved iron frame with rotary-adjustable louver optics, single- or double-sided emission, and certified IP65/IK10 durability.
