Aero
Adjustable Architectural Tubular Wall Light
Adjustable light, precise control.
Designed for directional illumination.
Engineered for flexible installation.
Built for reliable performance.
Key Features
- Adjustable aluminum louver system
- Manual angle control for precise light direction
- Direct wall-mounted integrated design
- Single-sided or double-sided light output
- Ø70 / Ø100 mm diameter options
- 300–1500 mm configurable lengths
- Custom colors and finishes available
- Flexible mounting configurations
- Multiple control compatibility
- Optional sensor and emergency functions
- Durable high-transparency polycarbonate housing
- IP67 ingress protection
- IK10 impact resistance
- Minimum 5-year system warranty
- CE, RoHS certified
Adjustable aluminum louver system
Integrated aluminum louvers with manual rotary adjustment allow precise control of the light output angle, enabling effective glare reduction and directional lighting on site.

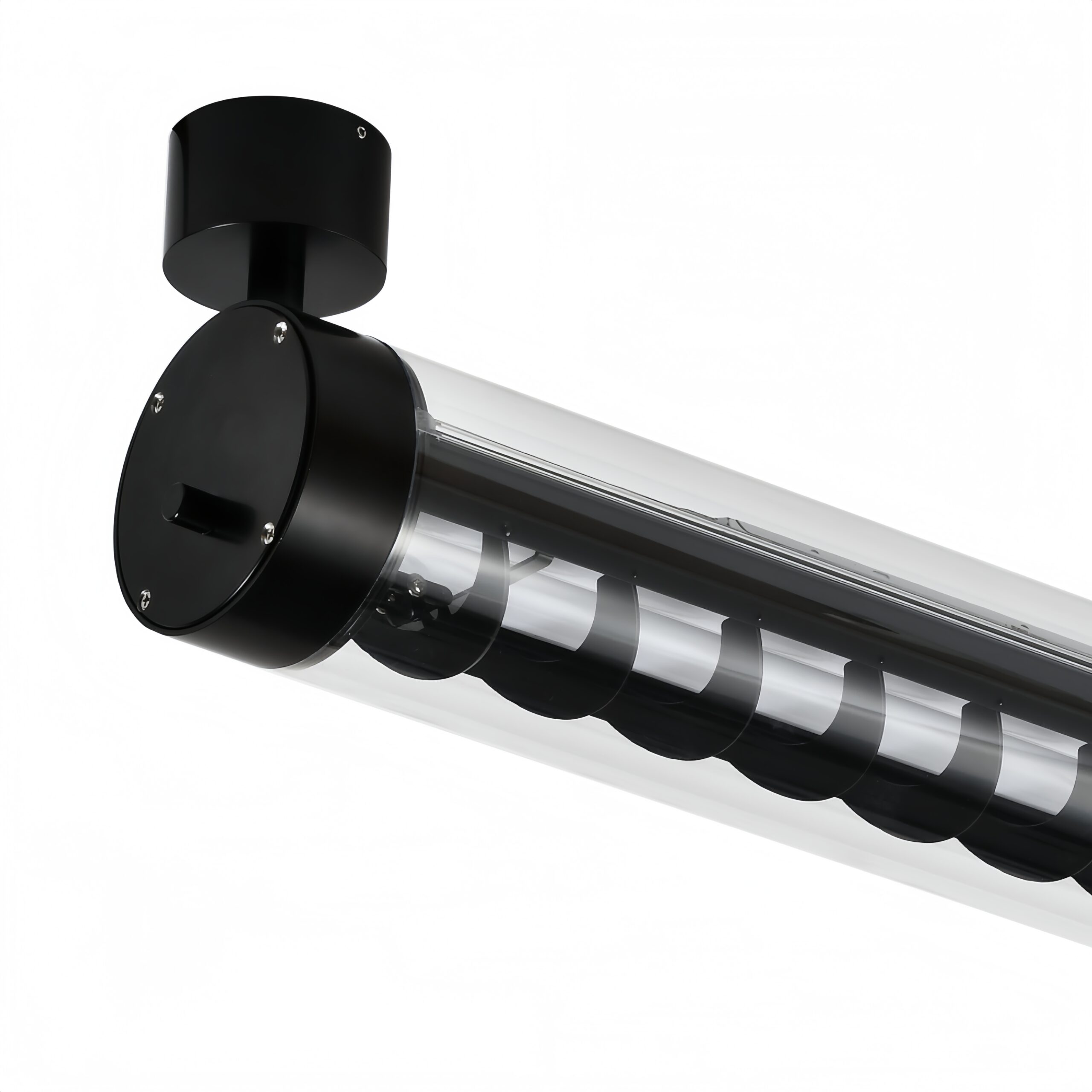

Direct wall mounting design
Integrated wall-mounting structure enables direct installation onto the wall without external clips, ensuring clean installation, reduced components, and long-term mechanical stability.
Single-sided or double-sided emission
Available in single-sided emission as standard, with optional double-sided emission to support different installation layouts and balanced light distribution requirements.
Robust sealed construction (IP67 / IK10)
Fully sealed housing rated IP67 for dust and water protection, combined with IK10 impact resistance, suitable for indoor and outdoor applications, including public and high-traffic areas.
TECHNICAL SPECIFICATIONS
Technical characteristics
Light source
LED source: High-efficiency SMD2835 LEDs
CRI: ≥80 (CRI 90 optional)
MacAdam: ≤3 SDCM
Lifetime: 50,000 h (L80/B10 @ 25°C)
____________________________________________________________________________
Optical system
Optical system: Directional lighting controlled by adjustable aluminum louvres
Light distribution: Single-sided emission (standard)
Option: Double-sided emission (on request)
Glare control: Reduced direct view of LED source
____________________________________________________________________________
Electrical
Input voltage: 220–240 V AC (100–277 V AC optional), 50/60 Hz
Power factor: >0.95
Power range: 10–70 W (depending on length and output)
Control options: ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request)
Options: Sensor version / Emergency version
Electrical class: Class I
____________________________________________________________________________
Color temperature
CCT: 2700K / 3000K / 4000K / 5000K / 6000K
Option: Tunable White (on request)
____________________________________________________________________________
Dimensions
Tube diameter: Ø70 mm / Ø100 mm
Custom lengths available (300–1500 mm)
____________________________________________________________________________
Operating temperature
Operating temperature: −25°C to +45°C
Installation and maintenance
Connection
Sealed cable entry with stainless steel cable gland
Cable range: Ø5–14 mm
Disconnectable terminal block
Up to 3 × 2.5 mm² conductors
____________________________________________________________________________
Mounting
Built-in wall mounting structure
Direct wall installation (no external mounting brackets)
Vertical or horizontal mounting orientation
Materials
Housing
Co-extruded polycarbonate (PC) or PMMA tube
UV-stable, impact-resistant
For indoor and outdoor use
____________________________________________________________________________
Structure
Adjustable aluminum louvre system
Aluminum end caps
Stainless steel fixing components
____________________________________________________________________________
Customization
Custom lengths available on request
Surface finishes: matte textured / smooth gloss
Control options configurable per project (ON/OFF, TRIAC, 0–10 V, DALI; sensor / emergency on request)
Single-sided / double-sided emission options
Standards & protection
Ingress protection
IP67 standard
IP69K optional
____________________________________________________________________________
Impact resistance
IK10 (PC)
IK08 (PMMA)
____________________________________________________________________________
Fire performance
Glow-wire test: 960°C
____________________________________________________________________________
Warranty
5-Year whole fixture
____________________________________________________________________________

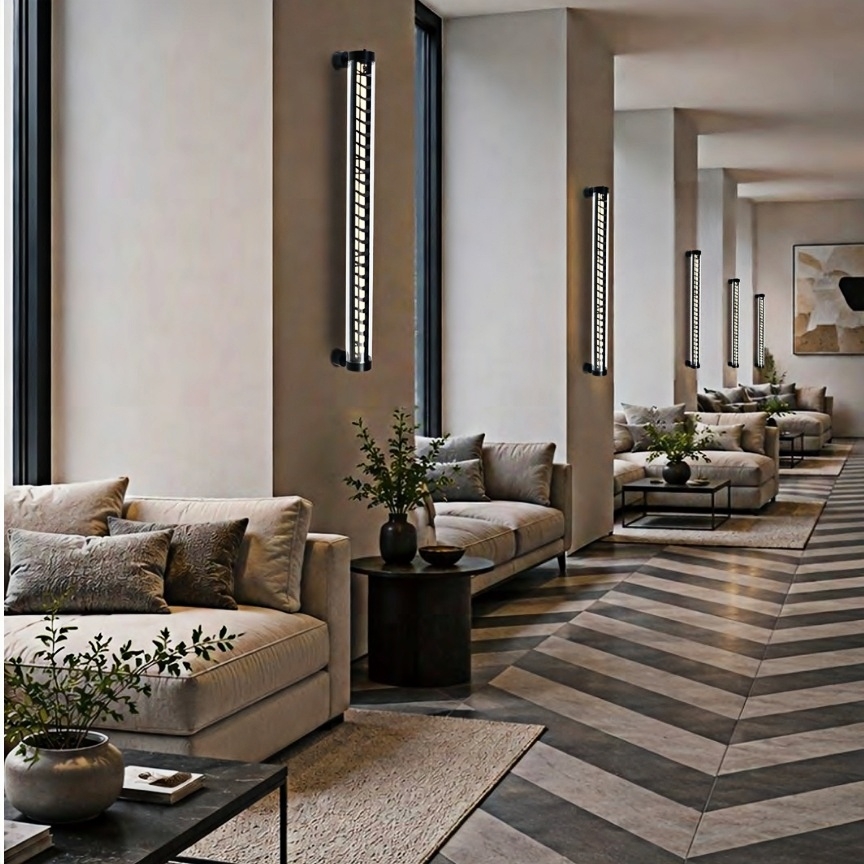

Applications
Architectural indoor and outdoor environments
ARCHITECTURAL APPLICATIONS
