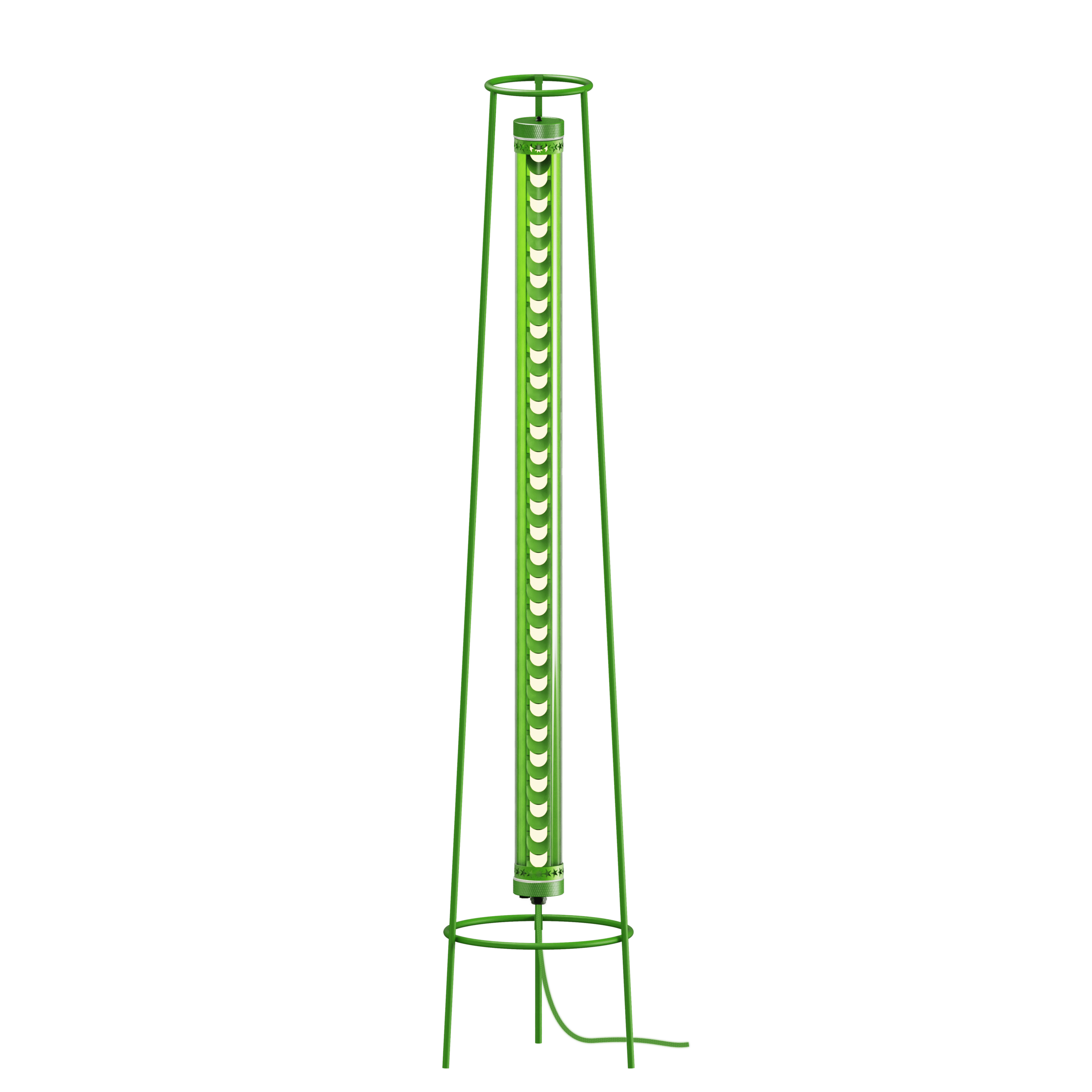

HALO TRIPOD SERIES · ARCHITECTURAL TUBULAR FLOOR LAMP
Open Tripod Form.
Vertical Light, Beautifully Balanced.
Halo Tripod pairs a slim tubular luminaire with an open three-leg frame, creating a freestanding architectural light with a lightweight, balanced presence. Customizable frame finishes and mounting clip designs allow its appearance to coordinate with each project, while configurable glare-control optics, selectable emission and flexible controls adapt the light across residential, hospitality and commercial settings.
Choose from featured tripod finishes and mounting clip designs, or specify a custom RAL color together with your preferred optics, dimming controls, sensor and emergency options. Technical drawings and photometric data are available for project coordination.
PRODUCT & MANUFACTURING CAPABILITIES
Lightweight tripod form.
Vertical light with an open presence.
Halo Tripod pairs a slim tubular luminaire with an open tripod frame, creating a freestanding vertical light that feels visually light yet structurally balanced. Configurable optics, emission, color temperature and controls are complemented by customizable frame finishes and mounting clip designs, allowing the luminaire to adapt visually and technically across residential, hospitality and commercial environments.
Customizable Tripod Structure
The minimal three-leg iron frame supports the vertical luminaire while maintaining an open, lightweight architectural presence. Frame colors and mounting clip designs can be customized to coordinate with different interiors and project identities.
Freestanding Placement
No fixed installation is required, allowing Halo Tripod to be repositioned as furniture layouts and spatial needs change.
Low-Glare Optical Control
Grille, honeycomb or louver configurations shield the LED source and provide more comfortable illumination for occupied spaces.
Single or Double Emission
Choose single-sided output for directed illumination or optional double-sided emission for more balanced spatial light.
Configurable Light & Control
Available with 2700K–6000K color temperatures, optional Tunable White and project-specific dimming or control options.
Architectural Durability
A sealed IP65 luminaire with an IK10-rated PC housing and robust iron tripod supports reliable indoor and outdoor use.
Project Configuration
Tubular optics, emission format, frame dimensions, color temperature and controls can be coordinated with custom tripod colors, surface finishes and mounting clip designs to meet project requirements.
Form, Finish & Light Verification
Pre-production samples allow tripod proportions, structural balance, mounting clip design, color and finish, light distribution and glare control to be reviewed before production.
Engineering Support
Configuration drawings, finish references, mounting details, electrical data, control information and photometric documentation prepared for design coordination and approval.
Stability & Performance Testing
Tripod stability, clip fit and security, optical alignment, electrical operation, sealing, color consistency and finished appearance inspected before delivery.
01 / OPEN TRIPOD FORM
Lightness you can see. Stability you can trust.
Halo Tripod suspends a slim tubular luminaire within an open three-leg frame, creating a lightweight architectural presence with dependable freestanding stability. With no fixed installation required, it can be positioned wherever ambient light and visual character are needed.
- Open structure
- A minimal tripod frame gives the luminaire an airy, sculptural identity.
- Freestanding placement
- No permanent mounting is required, allowing flexible positioning as spaces evolve.
- Balanced support
- The three-leg geometry provides stable support with a compact visual footprint.
02 / CONFIGURABLE VISUAL COMFORT
Shape the atmosphere, soften the source.
A choice of grille, honeycomb or louver optics shields direct views of the LED source and refines the light distribution. This allows Halo Tripod to provide comfortable illumination while introducing a distinctive illuminated texture to the space.
- Glare-control optics
- Grille, honeycomb and louver configurations reduce direct-source brightness.
- Visual comfort
- Optical shielding creates a softer and more comfortable viewing experience.
- Selectable emission
- Choose single- or double-sided output to suit directional or balanced ambient lighting.
03 / INDOOR–OUTDOOR PERFORMANCE
Architectural light that moves beyond the interior.
A fully sealed IP65 luminaire with an IK10-rated PC housing provides protection against dust, water and impact. Combined with its robust iron tripod frame, Halo Tripod delivers reliable freestanding illumination for hospitality, residential and exterior environments.
- Protected luminaire
- IP65 sealing supports reliable operation in exposed indoor and outdoor settings.
- Impact resistance
- The IK10-rated PC housing is designed for demanding and high-traffic applications.
- Built for projects
- Durable materials and a stable iron frame support consistent long-term performance.
HALO TRIPOD SERIES / TECHNICAL SPECIFICATIONS
Clear engineering data.
Project-ready configuration.
Halo Tripod is an architectural freestanding floor luminaire system pairing an open three-leg iron frame with an interchangeable tubular light head. Engineered in Ø70 mm and Ø100 mm profiles, standard 1200 mm length (custom available), integrated internal grille, honeycomb or louver optics, single- or double-sided emission, and versatile project control protocols.
01 / OPTICS & ELECTRICAL Technical Characteristics & Optical Systems
| Configuration Parameter | Available Options | Project Note |
|---|---|---|
| Profile Diameter | Ø70 mm / Ø100 mm | Architectural tubular profiles paired with tripod iron stand |
| Fixture Length | 1200 mm standard (Custom lengths available) | Project-specific lengths coordinated to architectural scale |
| Power Range | 40 W | Optimized high-efficiency architectural output |
| Optical System | Integrated internal grille / honeycomb / louver | Precision glare control & reduced direct view of LED source |
| Light Distribution | Single-sided emission (standard) / Double-sided (on request) | Directional accentuation or balanced ambient spatial emission |
| Controls | ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request) | Sensor version / Emergency version available on request |
Light Source & CCT
- LED source: High-efficiency SMD2835 LEDs
- CRI: ≥80 (CRI 90 optional)
- Color consistency: MacAdam ≤3 SDCM
- CCT: 2700K / 3000K / 4000K / 5000K / 6000K
- Option: Tunable White (on request)
- Lifetime: 50,000 h (L80/B10 @ 25°C)
Optical System & Glare Control
- Optical system: Integrated internal grille / honeycomb / louver
- Light distribution: Single-sided emission (standard)
- Option: Double-sided emission (on request)
- Glare control: Reduced direct view of LED source
- Softens source brightness for enhanced visual comfort
- Configurable textures tuned for refined architectural spaces
Electrical & Controls
- Input voltage: 220–240 V AC (100–277 V AC optional), 50/60 Hz
- Power factor: >0.95
- Power range: 40 W
- Control options: ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request)
- Options: Sensor version / Emergency version
- Electrical class: Class I
02 / SITE COORDINATION Installation, Maintenance & Wiring
Connection & Operating
- Sealed cable entry with stainless steel cable gland
- Cable range: Ø5–14 mm
- Disconnectable terminal block
- Up to 3 × 2.5 mm² conductors
- Operating temperature: −25°C to +45°C
Mounting & Installation
- Installation type: Freestanding floor-mounted luminaire with tripod iron frame
- Lightweight tripod base designed for flexible spatial placement
- No permanent wall, ceiling, or floor drilling required
- Stable three-leg geometry with compact footprint
- Easily repositioned as interior or outdoor layouts evolve
03 / MATERIALS & CRAFTSMANSHIP Housing Envelope, Structure & End Caps
Housing Envelope
- Co-extruded polycarbonate (PC) or PMMA tube
- UV-stable, impact-resistant
- For indoor and outdoor use
- Tube diameter: Ø70 / Ø100 mm
- Lengths available: 1200 mm (Custom lengths available)
Structure & Mechanics
- Iron floor stand structure with open tripod geometry
- PC luminaire housing with internal optical modules
- Precision aluminum end caps
- Stainless steel fixing components
- Long-term ingress sealing gaskets
Customization & Finishes
- Custom lengths available on request
- Surface finishes: matte textured / smooth gloss
- Multiple custom tripod colors & clip designs per project
- Control options configurable (ON/OFF, TRIAC, 0–10 V, DALI; sensor / emergency)
- Single-sided / double-sided emission options
04 / COMPLIANCE & STANDARDS Standards, Protection & Factory Warranty
Ingress Protection
- IP65 standard
- IP69K optional
Impact Resistance
- IK10 (PC)
- IK08 (PMMA)
Fire Performance
- Glow-wire test: 960°C
- CE and RoHS compliant manufacturing
Warranty & Applications
- 5-Year whole fixture warranty
- Applications: Indoor and outdoor environments
Architectural Presence
Across Space & Scale
From hospitality lounges and corporate lobbies to open residential terraces and covered walkways, Halo Tripod combines an open three-leg iron frame with interchangeable tubular optics, custom clip detailing, and certified IP65/IK10 durability.
