NOVA SERIES · ARCHITECTURAL TUBULAR LIGHT
Integrated honeycomb optic.
Directional low-glare light.
Featuring an integrated honeycomb optic design within a clear tubular profile, Nova delivers low-glare directional illumination with high visual comfort. MANI coordinates profile diameters (Ø70 / Ø100 mm), continuous lengths up to 3000 mm, customizable end caps and mounting brackets, bespoke surface finishes, and certified IP65/IK10 engineering to match exacting project specifications.
Engineering review, custom mounting brackets and end caps, DALI/0-10V controls, and photometric submittals.
PRODUCT & MANUFACTURING CAPABILITIES
Integrated honeycomb optics.
Engineered architectural tubular lighting.
Combining an integrated honeycomb optic design with scalable Ø70/Ø100 mm profiles and customizable end caps and mounting hardware, Nova delivers precision directional light. Engineering submittals, custom RAL finishes, and strict factory QA ensure repeatable project execution.
Integrated Honeycomb Optic
Precision-engineered internal honeycomb optic shields the linear LED source to deliver directional downlight with comfortable glare control.
Single / Double-Sided Output
Single-sided directional emission standard; optional double-sided configuration for balanced direct/indirect architectural lighting.
Custom End Caps & Clips
CNC-machined aluminium end caps and decorative fixing collars available in customizable profiles, textures, and sealing gaskets.
Scalable Diameters & Lengths
Two profile scales (Ø70 / Ø100 mm) with custom continuous lengths from 300 to 3000 mm for wall, ceiling, or wire-suspended layouts.
Finishes & Colourways
End caps, collars, and mounting brackets finished in anodized metallics, micro-texture powder coats, or project-specific RAL matching.
Electrical & Smart Controls
SMD2835 LEDs with ≤3 SDCM consistency, compatible with ON/OFF, TRIAC, 0–10V, DALI-2 (DT6/DT8), microwave sensors, and emergency packs.
Bespoke Engineering
Project-specific tube scaling, bespoke end cap and clip detailing, emission configurations, and dimming protocol integration built to specification.
Pre-Production Sign-off
Rapid physical samples for dimensional verification, honeycomb optical distribution, and surface finishes prior to batch production.
Technical Submittals
CAD/3D files, installation details, dimensional shop drawings, and certified photometric IES/LDT test reports.
Factory QA & Testing
IP65 ingress sealing validation, IK10 impact resistance, electrical safety testing, and 100% burn-in aging before shipment.
01 / OPTICS & VISUAL COMFORT
Precision honeycomb optics for controlled, comfortable light.
Nova combines a clear tubular PC housing with an internal honeycomb optic to shield the linear LED engine. Eliminating direct glare and visual hotspots, it delivers directional illumination with high visual comfort for hospitality and commercial spaces.
- Optical system
- Internal honeycomb optic for source shielding and low glare.
- LED light engine
- SMD2835 LEDs, CRI ≥ 80/90, with strict MacAdam ≤ 3 SDCM binning.
- Factory alignment
- Mesh positioning and lit uniformity 100% inspected against approved samples.
02 / LIGHT DISTRIBUTION & PLANNING
Single- or double-sided output, configured around the space.
Nova provides single-sided directional light as standard for focused wall and surface grazing. For balanced direct and indirect ambient spatial illumination, a symmetrical double-sided output can be configured while maintaining consistent profile aesthetics.
- Standard distribution
- single-sided directional beam for task, wall grazing, and corridors.
- Optional distribution
- Double-sided output for balanced direct task and indirect ambient lighting.
- Configuration review
- Beam orientation, driver placement, and cable exits verified pre-production.
03 / PROTECTION & DURABILITY
Sealed construction for demanding architectural environments.
Nova combines an impact-resistant, anti-UV polycarbonate housing with CNC-machined aluminium end components and compression silicone gaskets. Certified IP65 and IK10, it maintains optical clarity and long-term durability across interior and sheltered exterior environments.
- Ingress protection
- IP65 certified sealing against dust ingress and water spray.
- Impact resistance
- IK10 mechanical protection with heavy-duty UV-stabilized PC tube.
- Factory verification
- 100% pneumatic sealing, electrical safety, and burn-in aging tested.

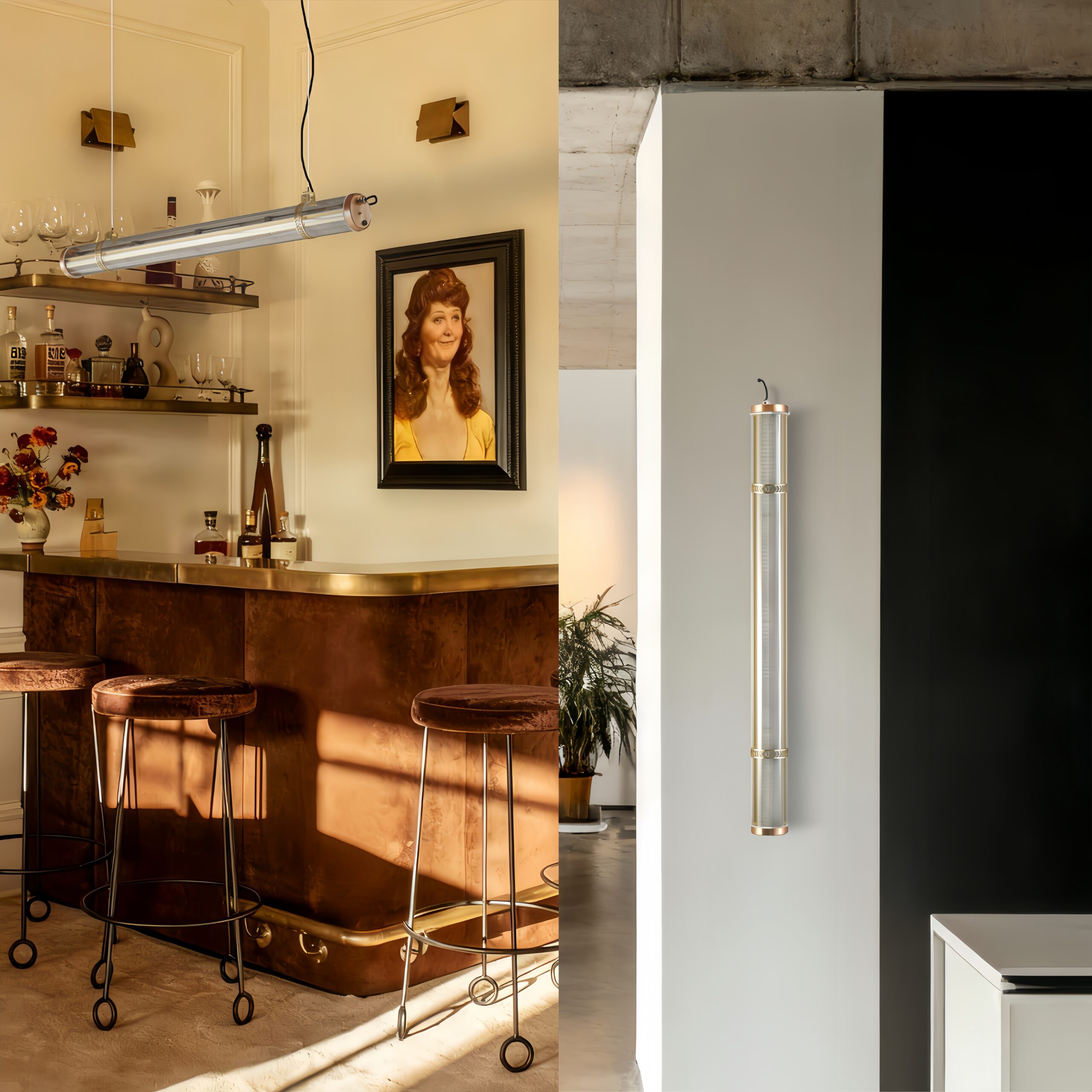

04 / INSTALLATION & PROJECT DELIVERY
Flexible mounting, factory-configured for the project.
Nova supports vertical or horizontal wall sconce mounting, surface ceiling installation, and adjustable cable suspension. It can be specified as a single architectural accent or combined into continuous linear runs with project-matched dimensions and finishes.
- Mounting formats
- Wall-mounted, ceiling surface, and adjustable wire pendant suspensions.
- Custom scaling
- Ø70/Ø100 mm diameters with continuous lengths from 300 to 3000 mm.
- Project detailing
- Brackets, cable entries, end caps, and finishes tailored to approved drawings.
NOVA SERIES / TECHNICAL SPECIFICATIONS
Clear engineering data.
Project-ready configuration.
Nova is a directional architectural tubular luminaire integrating an internal honeycomb optic design with customizable end caps and mounting brackets. Profile scales (Ø70 / Ø100 mm), continuous lengths up to 3000 mm, single/double-sided light distributions, and dimming protocols are configured to exact project submittals.
01 / OPTICS & ELECTRICAL Technical Characteristics & Optical Systems
| Configuration Parameter | Available Options | Project Note |
|---|---|---|
| Profile Diameter | Ø70 mm / Ø100 mm | Selected according to architectural spatial scale and output |
| Fixture Length | 300–3000 mm (custom continuous lengths) | Factory-cut lengths coordinated with internal LED modules |
| Power & Output | 15 – 70 W (scalable) | Power range determined by fixture length and target lumens |
| Light Distribution | Single-sided / Double-sided | Single-sided emission standard; symmetrical double-sided on request |
| Controls | ON/OFF / TRIAC / 0–10 V / DALI-2 | DALI (DT6/DT8 on request), sensor and emergency inverter backup |
Light Source & CCT
- LED source: High-efficiency SMD2835 linear LEDs
- CRI: ≥80 standard; CRI ≥90 optional on request
- Colour consistency: MacAdam ≤3 SDCM binning
- CCT: 2700K / 3000K / 4000K / 5000K / 6000K
- Option: Tunable White (2700K–6500K on request)
- Rated lifetime: 50,000 h (L80/B10 @ 25°C)
Honeycomb Optics & Beam Shaping
- Internal honeycomb optic for line-of-sight source shielding
- Light distribution: Single-sided standard; double-sided optional
- Low-glare visual comfort engineered for hospitality and commercial spaces
- Uniform continuous beam shaping without visible LED pixelation
Electrical & Controls
- Input voltage: AC 220–240 V, 50/60 Hz (100–277 V universal optional)
- High power factor: PF >0.95 (THD < 15%)
- Scalable wattage across 15–70 W per fixture run
- Control options: ON/OFF, TRIAC, 0–10 V, DALI-2 (DT6/DT8)
- Integrated microwave sensor and emergency battery backup options
- Class I electrical insulation standard
02 / SITE COORDINATION Installation, Maintenance & Wiring
Connection & Wiring
- Sealed cable entry with stainless steel cable gland
- Accommodates circular cable range Ø5–14 mm
- Disconnectable terminal block for rapid on-site connection
- Supports conductors up to 3 × 2.5 mm²
- Operating ambient temperature: −25°C to +45°C
Mounting & Coordination
- 2 Mounting brackets with adjustable spacing
- Vertical or horizontal surface wall-mounted sconce layouts
- Surface ceiling clips and adjustable aircraft cable suspension kits
- Supports standalone accents or continuous architectural runs
03 / MATERIALS & CRAFTSMANSHIP Housing Envelope, Structure & End Caps
Housing Envelope
- Transparent UV-stabilised optical-grade tube extrusion
- Anti-yellowing formulation with long-term visual clarity
- Engineered for interior and sheltered outdoor use
- Diameters: Ø70 mm / Ø100 mm with custom lengths 300–3000 mm
Structure & End Caps
- CNC-machined aluminium end caps in customizable profiles
- Precision external fixing collars and mounting hardware
- Integrated internal honeycomb optic assembly
- Compression silicone gaskets for long-term ingress protection
Customization & Finishes
- End cap & bracket finishes: Anodized metallics, brushed, or custom RAL
- Custom continuous lengths available on request (300–3000 mm)
- Single-sided / double-sided emission configurations
- Intelligent dimming controls and emergency options
04 / COMPLIANCE & STANDARDS Standards, Protection & Factory Warranty
Ingress Protection
- IP65 standard dust-tight and water-jet protection
- Reliable sealing for interior and sheltered outdoor environments
Impact Resistance
- IK10 rated heavy-duty impact protection (PC tube)
- High mechanical shock resistance across fixture body
Safety & Compliance
- 960°C glow-wire flammability tested
- Full compliance with CE, and RoHS manufacturing standards
Warranty & Scope
- 5-Year comprehensive factory warranty
- Applications: Architectural hospitality, corridors, facades & retail
Architectural Presence
Across Space & Scale
From hospitality lounges and dining spaces to corporate corridors, gallery halls, and sheltered outdoor facades, Nova pairs precision integrated honeycomb optics with directional low-glare delivery, versatile Ø70/Ø100 mm profiles, and certified IP65/IK10 engineering.
