CRYSTAL SERIES · ARCHITECTURAL TUBULAR LIGHT
Honeycomb & Grille Optics.
Architectural Precision.
Crystal pairs precision cellular honeycomb and linear grille optics within a crystal-clear tubular profile, delivering low-glare, directional illumination. Available in Ø70 and Ø100 mm profiles (300–3000 mm), single/double-sided output, and bespoke RAL finishes.
Engineering layout support, custom mounting collars, knurled/machined end caps, DALI-2/0-10V controls, and photometric data.
PRODUCT & MANUFACTURING CAPABILITIES
Dual optical precision.
Engineered architectural tubular lighting.
Combining cellular honeycomb and linear grille optics across scalable Ø70/Ø100 mm profiles, bespoke RAL finishes, and versatile mounting options. Engineered for robust commercial reliability with certified IP65/IK10 protection and OEM factory capabilities.
Honeycomb & Grille Optics
Dual optical systems shield internal diodes to minimize direct glare while producing a distinctive architectural lit effect.
Single- or Double-Sided Output
Configurable for controlled directional downlighting or bi-directional emission for balanced ambient spatial illumination.
Custom RAL Finishes
Precision anodized metallics, brushed textures, and bespoke RAL powder coating matched to project color palettes.
Modular Sizing & Diameters
Architectural Ø70 mm and Ø100 mm profiles with custom continuous factory lengths from 300 to 3000 mm.
Flexible Mounting Options
Supports surface wall-mounted sconce layouts, direct ceiling installation, and adjustable aircraft cable pendant suspensions.
Smart Controls & Drivers
High-efficiency SMD LEDs (≤3 SDCM) compatible with ON/OFF, 0–10V, DALI-2 (DT6/DT8), sensors, and emergency battery backup.
Custom Fabrication
Project-tailored profiles, bracket design, optical distribution, and control protocol integration.
Rapid Prototyping
Fast-turnaround physical samples for finish approval and dimensional verification prior to batch production.
Engineering Data
Full technical submittals including 2D/3D CAD models, specification sheets, and verified IES/LDT photometric files.
Testing & Compliance
IP65 ingress sealing, IK10 impact protection, electrical safety checks, and 100% factory burn-in aging.
01 / DESIGN & VISUAL EXPRESSION
Transparent form. Luminous depth.
Crystal pairs a clear tubular body with a finely detailed metallic insert, creating layers of light, reflection and texture. The result is a distinctive architectural object—refined when unlit and visually expressive when illuminated.
- Transparent construction
- A clear tubular profile reveals the internal structure and creates visual depth.
- Metallic detail
- The reflective insert adds a refined, jewel-like lighting character.
- Day-to-night presence
- A decorative architectural feature, whether illuminated or switched off.
02 / LIGHT & CONFIGURATION
Configured for the desired effect.

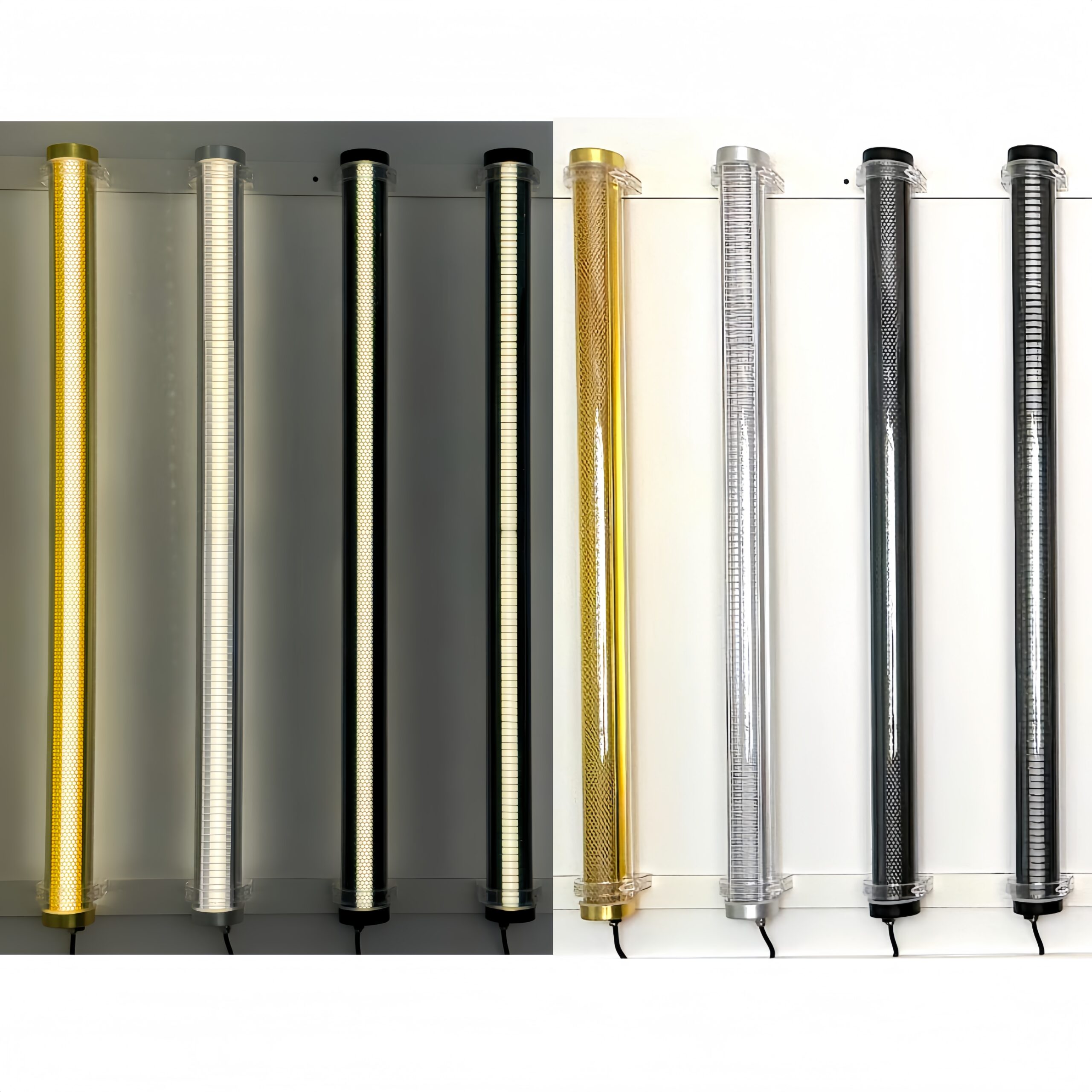

Choose between honeycomb or grille inserts and single- or double-sided emission to balance visual texture, glare control and spatial illumination.
- Optical options
- Honeycomb or grille inserts for different lighting textures.
- Light emission
- Single-sided directional output or optional double-sided illumination.
- Finish selection
- Silver, gold, black and project-specific finishes for visual coordination.
03 / PROTECTION & DURABILITY
Made for demanding spaces.
Crystal combines its refined appearance with a sealed, impact-resistant construction, supporting reliable performance across indoor and outdoor architectural applications.
- Ingress protection
- IP65-rated protection against dust and water ingress.
- Impact resistance
- IK10-rated PC housing for exposed and high-traffic environments.
- Material integrity
- UV-resistant PC housing with durable aluminium or stainless steel components.
04 / INSTALLATION & COMPOSITION
One form, multiple possibilities.
Crystal can be wall-mounted, ceiling-mounted or suspended, then used individually or repeated to create a consistent architectural rhythm.
- Mounting options
- Wall-mounted, ceiling-mounted or suspended.
- Layout flexibility
- Suitable for standalone, linear or repeated arrangements.
- Architectural integration
- Adapts to façades, entrances, corridors and feature spaces.
CRYSTAL SERIES / TECHNICAL SPECIFICATIONS
Clear engineering data.
Project-ready configuration.
Crystal is a directional architectural tubular luminaire featuring interchangeable honeycomb and linear grille optical inserts inside a clear tubular body. Profile scales (Ø70 / Ø100 mm), continuous lengths up to 3000 mm, single/double-sided light distributions, and dimming protocols are configured to exact project submittals.
01 / OPTICS & ELECTRICAL Technical Characteristics & Optical Systems
| Configuration Parameter | Available Options | Project Note |
|---|---|---|
| Profile Diameter | Ø70 mm / Ø100 mm | Selected according to architectural spatial scale and output |
| Fixture Length | 300–3000 mm (custom continuous lengths) | Factory-cut lengths coordinated with internal LED modules |
| Optical Insert | Honeycomb Louvre / Linear Grille | Choose cellular honeycomb or linear louvre for distinct lighting texture |
| Light Distribution | Single-sided / Double-sided | Single-sided emission standard; symmetrical double-sided on request |
| Controls | ON/OFF / TRIAC / 0–10 V / DALI-2 | DALI (DT6/DT8 on request), sensor and emergency inverter backup |
Light Source & CCT
- LED source: High-efficiency SMD2835 linear LEDs
- CRI: ≥80 standard; CRI ≥90 optional on request
- Colour consistency: MacAdam ≤3 SDCM binning
- CCT: 2700K / 3000K / 4000K / 5000K / 6000K
- Option: Tunable White (2700K–6500K on request)
- Rated lifetime: 50,000 h (L80/B10 @ 25°C)
Dual Optics & Visual Depth
- Interchangeable honeycomb hex cell or linear grille insert
- Precision diode shielding to eliminate direct-source glare
- Single-sided directional beam or bi-directional spatial wash
- Reflective metallic inserts create layered luminous depth
Electrical & Controls
- Input voltage: AC 220–240 V, 50/60 Hz (100–277 V universal optional)
- High power factor: PF >0.95 (THD < 15%)
- Scalable wattage across 15–70 W per fixture run
- Control options: ON/OFF, TRIAC, 0–10 V, DALI-2 (DT6/DT8)
- Integrated microwave sensor and emergency battery backup options
- Class I electrical insulation standard
02 / SITE COORDINATION Installation, Maintenance & Wiring
Connection & Wiring
- Sealed cable entry with stainless steel cable gland
- Accommodates circular cable range Ø5–14 mm
- Disconnectable terminal block for rapid on-site connection
- Supports conductors up to 3 × 2.5 mm²
- Operating ambient temperature: −25°C to +45°C
Mounting & Coordination
- 2 Mounting brackets with adjustable spacing
- Vertical or horizontal surface wall-mounted sconce layouts
- Surface ceiling clips and adjustable aircraft cable suspension kits
- Supports standalone accents or continuous architectural runs
03 / MATERIALS & CRAFTSMANSHIP Housing Envelope, Structure & End Caps
Housing Envelope
- Transparent UV-stabilised optical-grade tube extrusion
- Anti-yellowing formulation with long-term visual clarity
- Engineered for interior and sheltered outdoor use
- Diameters: Ø70 mm / Ø100 mm with custom lengths 300–3000 mm
Structure & End Caps
- Durable aluminium, stainless steel, or knurled metal elements
- Precision external fixing collars and mounting hardware
- Integrated honeycomb or linear grille insert assembly
- Compression silicone gaskets for long-term IP65 ingress protection
Customization & Finishes
- Finishes: Anodized silver, gold, black, or bespoke RAL powder coating
- Custom continuous lengths available on request (300–3000 mm)
- Single-sided / double-sided emission configurations
- Intelligent dimming controls and emergency options
04 / COMPLIANCE & STANDARDS Standards, Protection & Factory Warranty
Ingress Protection
- IP65 standard dust-tight and water-jet protection
- Reliable sealing for interior and sheltered outdoor environments
Impact Resistance
- IK10 rated heavy-duty impact protection (PC tube)
- High mechanical shock resistance across fixture body
Safety & Compliance
- 960°C glow-wire flammability tested
- Full compliance with CE and RoHS manufacturing standards
Warranty & Scope
- 5-Year comprehensive factory warranty
- Applications: Architectural hospitality, corridors, facades & retail
Architectural Presence
Across Space & Scale
From hospitality lounges, feature corridors, and corporate workspaces to gallery halls and sheltered exterior façades, Crystal pairs transparent tubular form and dual honeycomb/grille optics with single- and double-sided output, bespoke RAL finishes, scalable Ø70/Ø100 mm profiles, and certified IP65/IK10 engineering.
