Arno
Architectural Tubular Light
Key Features
Compact 300 mm body — ideal for space-limited architectural applications; custom lengths available
Two diameters available — Ø70 mm and Ø100 mm
Dual light distribution — single-sided as standard, optional double-sided emission
Decorative optics options — honeycomb or louver grille for controlled low-glare illumination
Custom finishes — black, gold or RAL colors on request
Flexible mounting solutions — multiple wall-mount bracket options for different project conditions
Advanced control compatibility — ON/OFF, DALI, TRIAC, 0–10V
Optional smart functions — motion sensor and emergency versions
Durable PC housing — high-transparency UV-resistant polycarbonate
Industrial-grade protection — IP67 ingress protection and IK10 impact resistance
Fire safety compliance — 960°C glow-wire tested
5-year system warranty

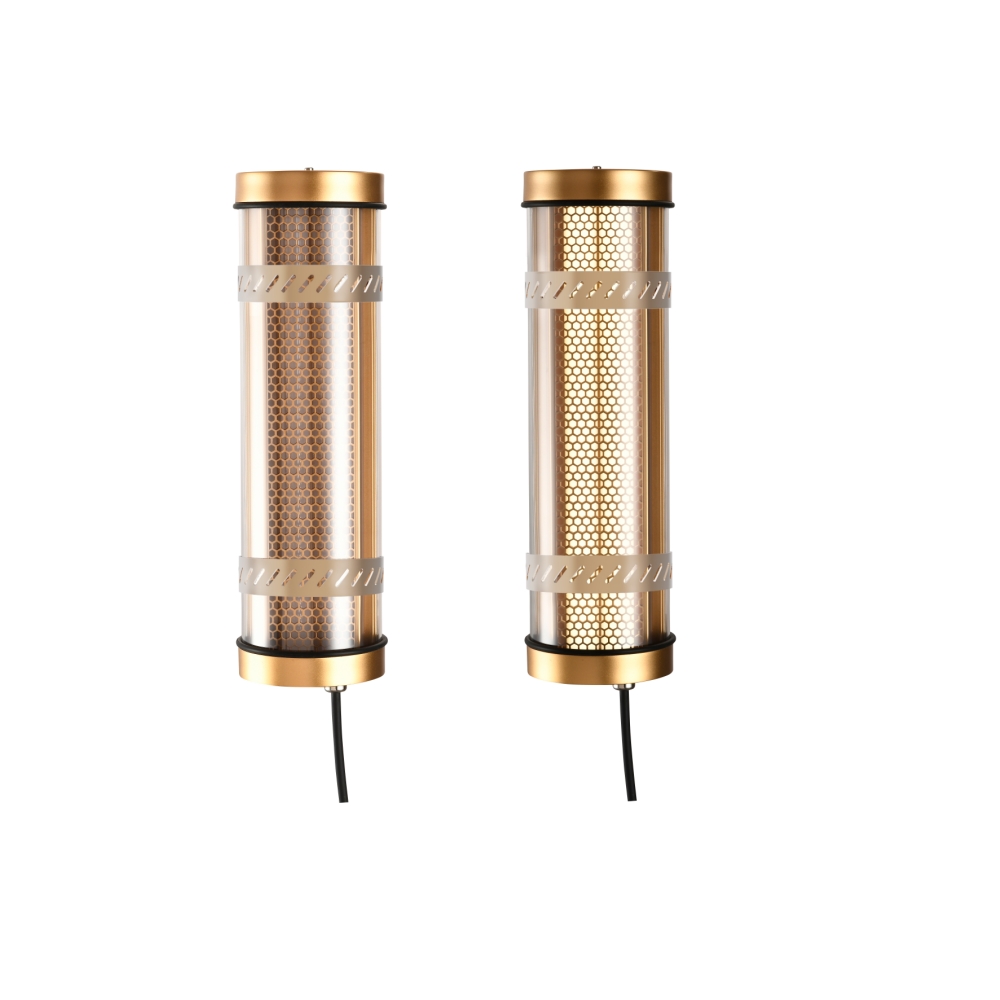

Arno
Compact architectural tubular wall light with decorative grille optics
Arno is a compact architectural tubular wall luminaire designed for both indoor and outdoor applications.
It is suitable for façades, corridors, stairwells, entrances and hospitality spaces where reliable architectural lighting is required.
Engineered for real project conditions, Arno features a sealed construction with IP67 ingress protection and IK10 impact resistance, ensuring durability in demanding indoor, covered outdoor and exterior environments.
To enhance visual comfort, Arno offers decorative internal grille options in honeycomb or louver designs, reducing direct view of the LED source while maintaining a refined architectural appearance.
Light distribution is available as single-sided or double-sided emission to suit different layouts.
Available in Ø70 mm and Ø100 mm diameters, Arno comes with a standard 300 mm length and supports custom lengths on request.
Finishes include black, gold or RAL colors, with matte or gloss surface options.
Installation is supported by multiple mounting bracket configurations for flexible project integration.

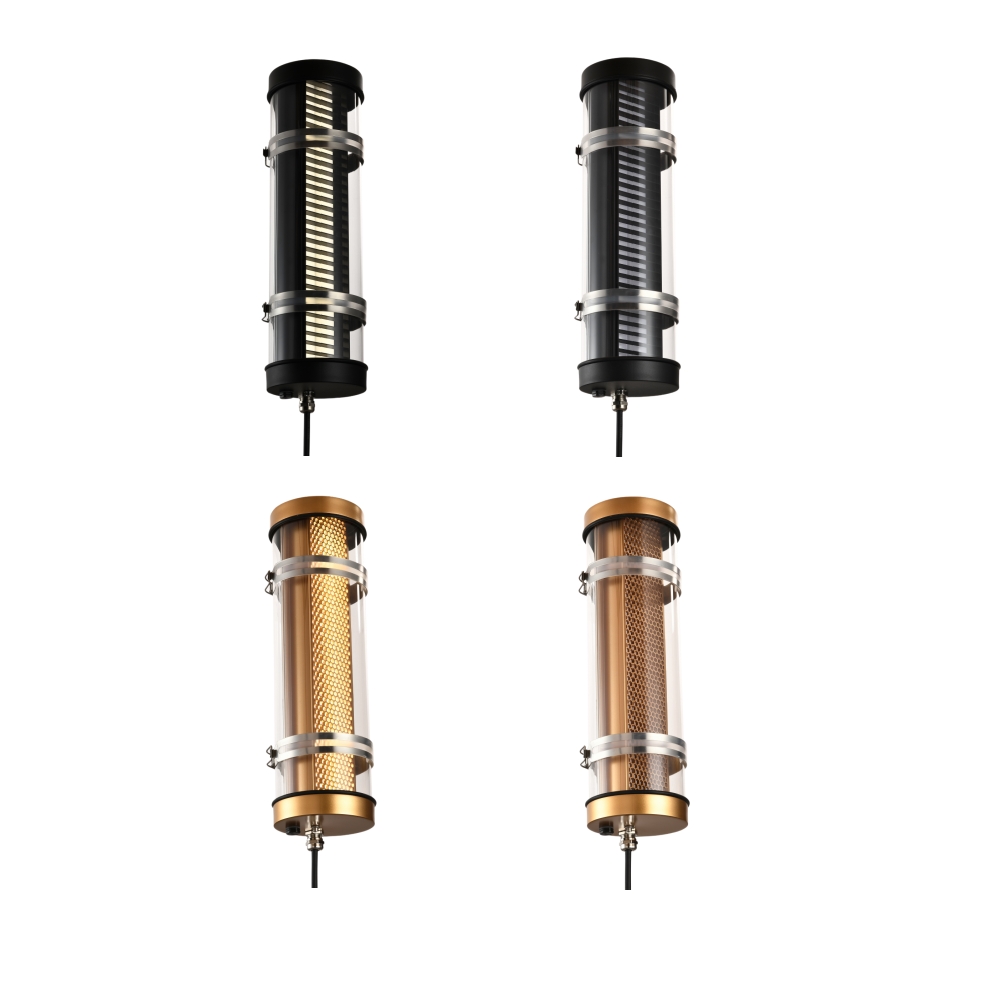

Visual comfort with high usable output
Built-in decorative optics: honeycomb or louver grille, help shield the LED source from direct view and improve glare control, delivering comfortable illumination while maintaining strong effective light levels. Ideal for long-hour lighting in high-traffic areas such as corridors, entrances, and stairwells.
Compact form for diverse architectural spaces

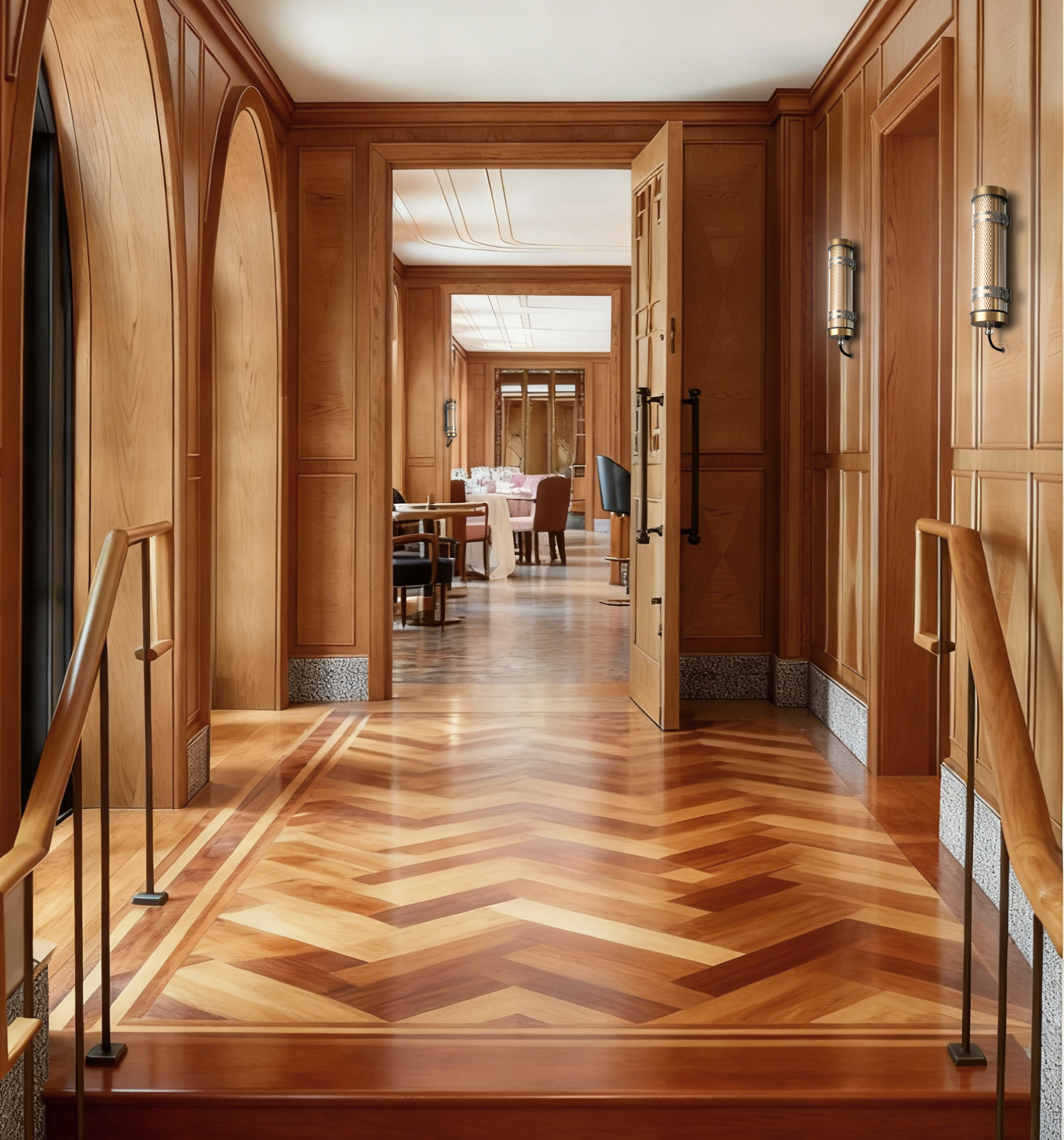

A space-efficient tubular wall luminaire designed for both interior and exterior use, suitable for office façades, museum/exhibition entrances, stadium stairwells, apartment porches, park pathways, pool terraces, library corridors, and hospitality/retail environments (including hotel headboards and restaurant feature walls).

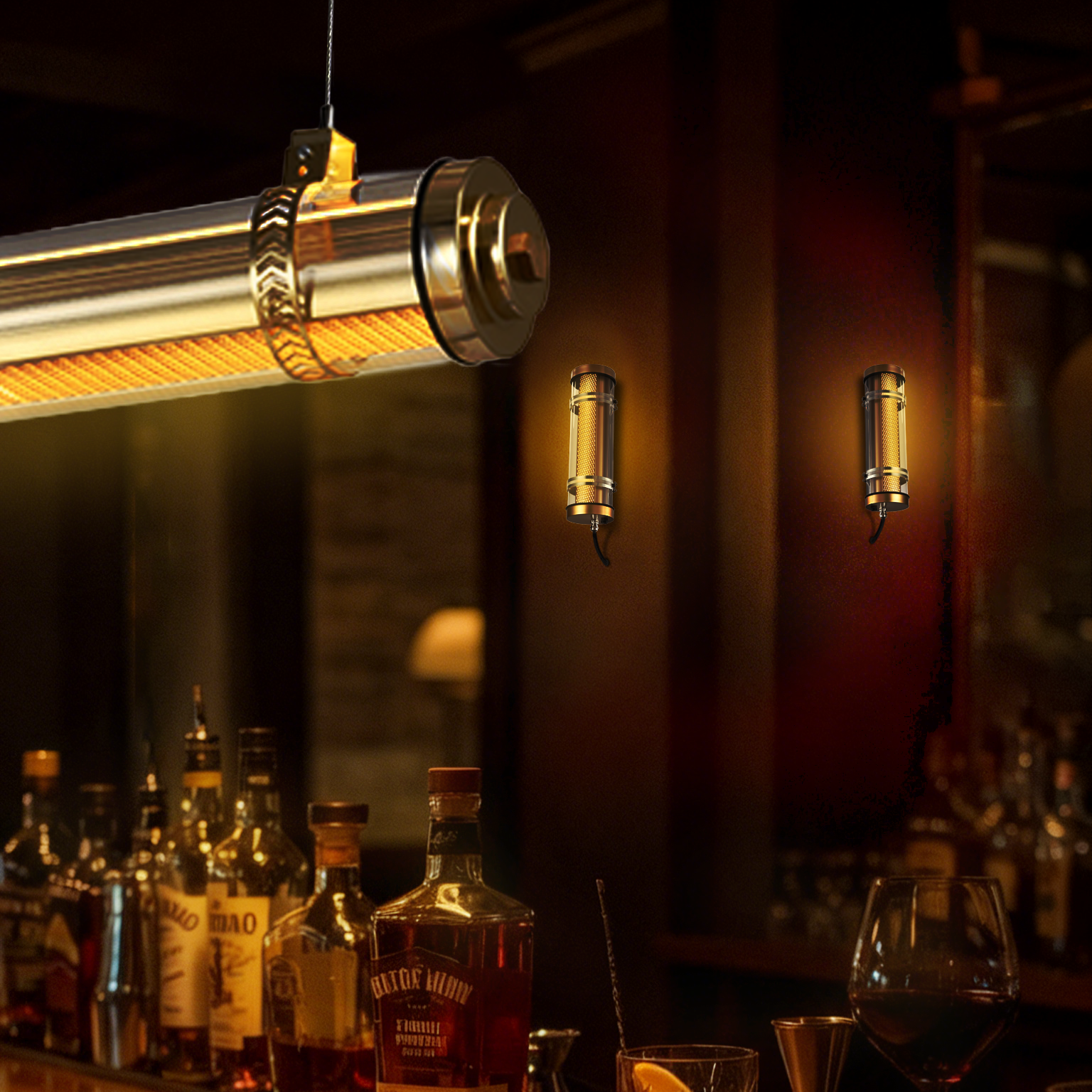

Configurable light distribution for layout planning
Available in single-sided emission as standard, with double-sided emission optional to support different spatial layouts, wayfinding needs, and balanced illumination requirements.

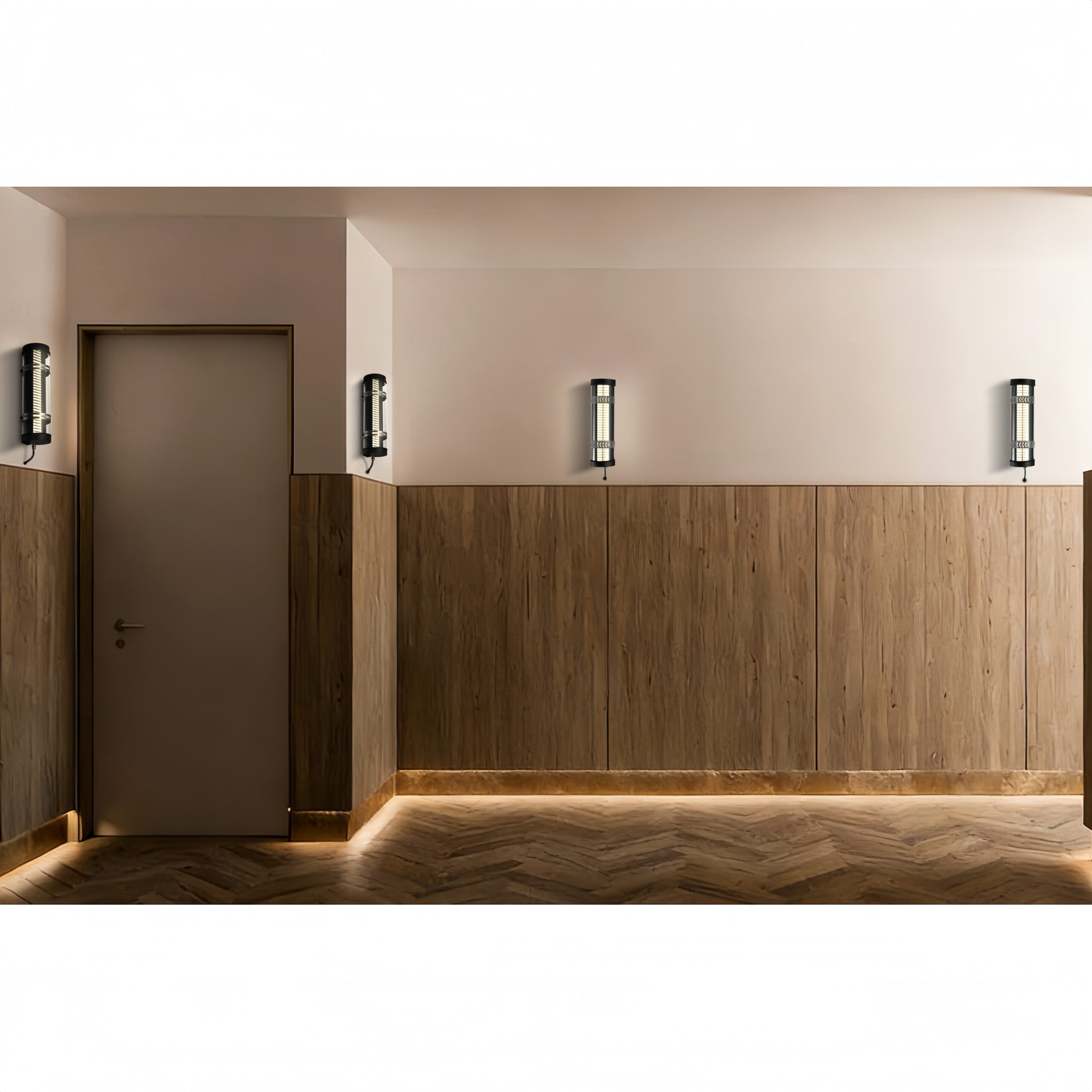

Project-ready customization
Supports single-unit installation, repeated linear layouts, or grouped compositions, making it easy to create continuous wayfinding rhythm and clear zone identification across corridors, lobbies, and outdoor routes. Custom lengths are available on request, enabling near-floor installation for boundary/area separation lighting, or wall-mounted configurations that deliver stronger guidance and visual direction for visitors.
Robust sealed construction for demanding sites
Designed for long-term performance in public and outdoor environments, featuring a sealed structure and durable materials with IP67 protection and IK10 impact resistance, supporting reliable operation under weathering, UV exposure, and high-traffic conditions.
TECHNICAL SPECIFICATIONS
Technical characteristics
Light source
LED source: High-efficiency SMD2835 LEDs
CRI: ≥80 (CRI 90 optional)
MacAdam: ≤3 SDCM
Lifetime: 50,000 h (L80/B10 @ 25°C)
____________________________________________________________________________
Optical system
Optical system: glare-control optics (honeycomb / louver grille)
Light distribution: Single-sided emission (standard)
Option: Double-sided emission (on request)
Glare control: Reduced direct view of LED source
____________________________________________________________________________
Electrical
Input voltage: 220–240 V AC (100–277 V AC optional), 50/60 Hz
Power factor: >0.95
Power range: 10–70 W (depending on length and output)
Control options: ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request)
Options: Sensor version / Emergency version
Electrical class: Class I
____________________________________________________________________________
Color temperature
CCT: 2700K / 3000K / 4000K / 5000K / 6000K
Option: Tunable White (on request)
____________________________________________________________________________
Dimensions
Two diameter: Ø70 mm / Ø100 mm
Standard length: 300 mm
Custom lengths: Available on request (project-based)
____________________________________________________________________________
Operating temperature
Operating temperature: −25°C to +45°C
Installation and maintenance
Connection
Sealed cable entry with stainless steel cable gland
Cable range: Ø5–14 mm
Disconnectable terminal block
Up to 3 × 2.5 mm² conductors
____________________________________________________________________________
Mounting
Wall mounting brackets (multiple styles available)
Compatible with different bracket types (project-specific)
Adjustable bracket spacing
Suspension kits available
Materials
Housing
Co-extruded polycarbonate (PC) or PMMA tube
UV-stable, impact-resistant
For indoor and outdoor use
____________________________________________________________________________
Structure
Decorative glare-control optics: honeycomb or louver grille
Aluminum end caps
Stainless steel fixing components
____________________________________________________________________________
Customization
Custom lengths available on request
Multiple mounting bracket options (project-specific)
Surface finishes: matte textured / smooth gloss
Control options configurable per project (ON/OFF, TRIAC, 0–10 V, DALI; sensor / emergency on request)
Single-sided / double-sided emission options
Standards & protection
Ingress protection
IP67 standard
IP69K optional
____________________________________________________________________________
Impact resistance
IK10 (PC)
IK08 (PMMA)
____________________________________________________________________________
Fire performance
Glow-wire test: 960°C
____________________________________________________________________________
Warranty
5-Year whole fixture
____________________________________________________________________________
Applications
Architectural indoor and outdoor environments
ARCHITECTURAL APPLICATIONS
SUSTAINABILITY STATEMENT
Designed with longevity and responsibility in mind.
Arno is built with an integrated LED system and a robust project-grade structure designed for reliable long-term performance in indoor and outdoor environments.
Its sealed construction delivers IP67 ingress protection and IK10 impact resistance, ensuring durability in demanding public and exterior conditions.
Controlled glare optics, available in honeycomb or louver grille versions, improve visual comfort in high-traffic spaces.
The energy-efficient LED source is mercury-free and emits no ultraviolet (UV) or infrared (IR) radiation, helping reduce maintenance requirements and total cost of ownership.
